LED Indications and functions of PCB's
PCB
FEB
FEB
FEB
FEB
DAVINCI
DAVINCI
DAVINCI
DAVINCI

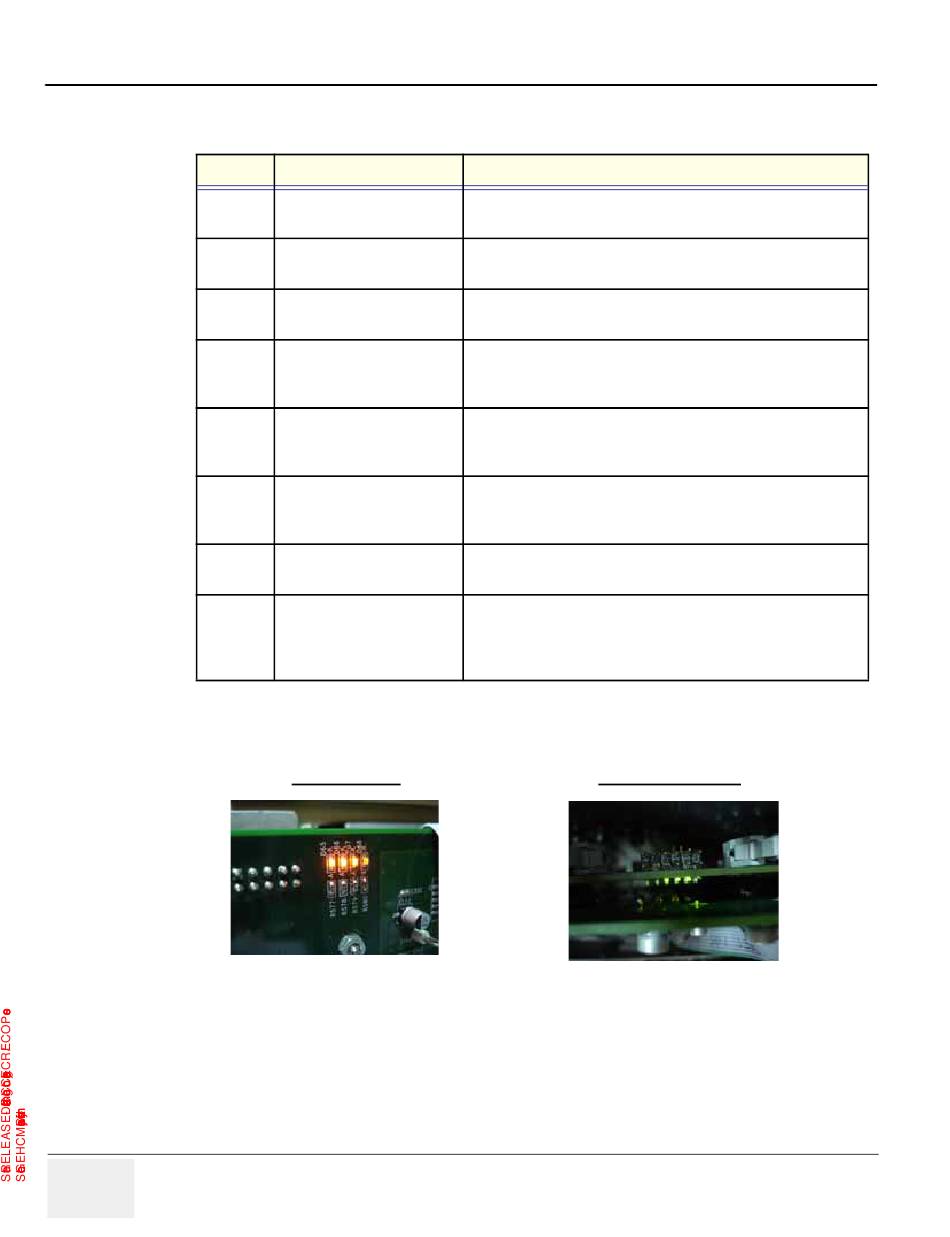

Table 7-2 LED Indications
Page 7-2
Ap p r o v e d Do c u m e n t - 5 3 0 5 8 8 0 - 1 0 0 T PH_ r 3 . p d f Pa g e 1 0 7 o f 1 9 7
3
EVISION
LED Location
LED - Location on FEB
D65
LED - Location on FEB
D66
LED - Location on FEB
D67
LED - Location on FEB
D68
LED - Location on Davinci
CPU D12
LED - Location on Davinci
CPU D11
LED - Location on Davinci
CPU D10
LED - Location on Davinci
CPU D09
LED's on FEB.
Section 7-1 - Overview
LOGIQ™ 100 PRO S
Function
This LED indicates the scan lines,the DSP is scanning.The
LED glows when the cursor is moved in the B/M mode
This LED indicates the probe connect signal is good.This
indicates the FEB is Good
This LED indicates the B mode signal is given to the
display.The intensity of this LED is more during B mode.
This LED indicates the M mode signal is given to the
display.This LED glows during M and B/M mode,the intensity
of this LED is less during B/M mode
This LED is ON during Acoustic Frame measurement
switching.This also indicates the communication between the
DSP and the Davinci CPU FPGA
This LED indicates the Video Sync is happening.This indicates
the video frame output from the Davinci CPU to the monitor is
This LED indicates the KEY press on the keyboard.It glows
intermittantly when there is a key pressed.
This LED indicates the USB connection to the
Rearpanel.When a USB device or Pen drive is connected, the
LED glows to indicate it is to the Davinci CPU.(USB output of
the Davinci is Good)
LED's on DAVINCI.
