Section 5-2 General Information

4
5
6

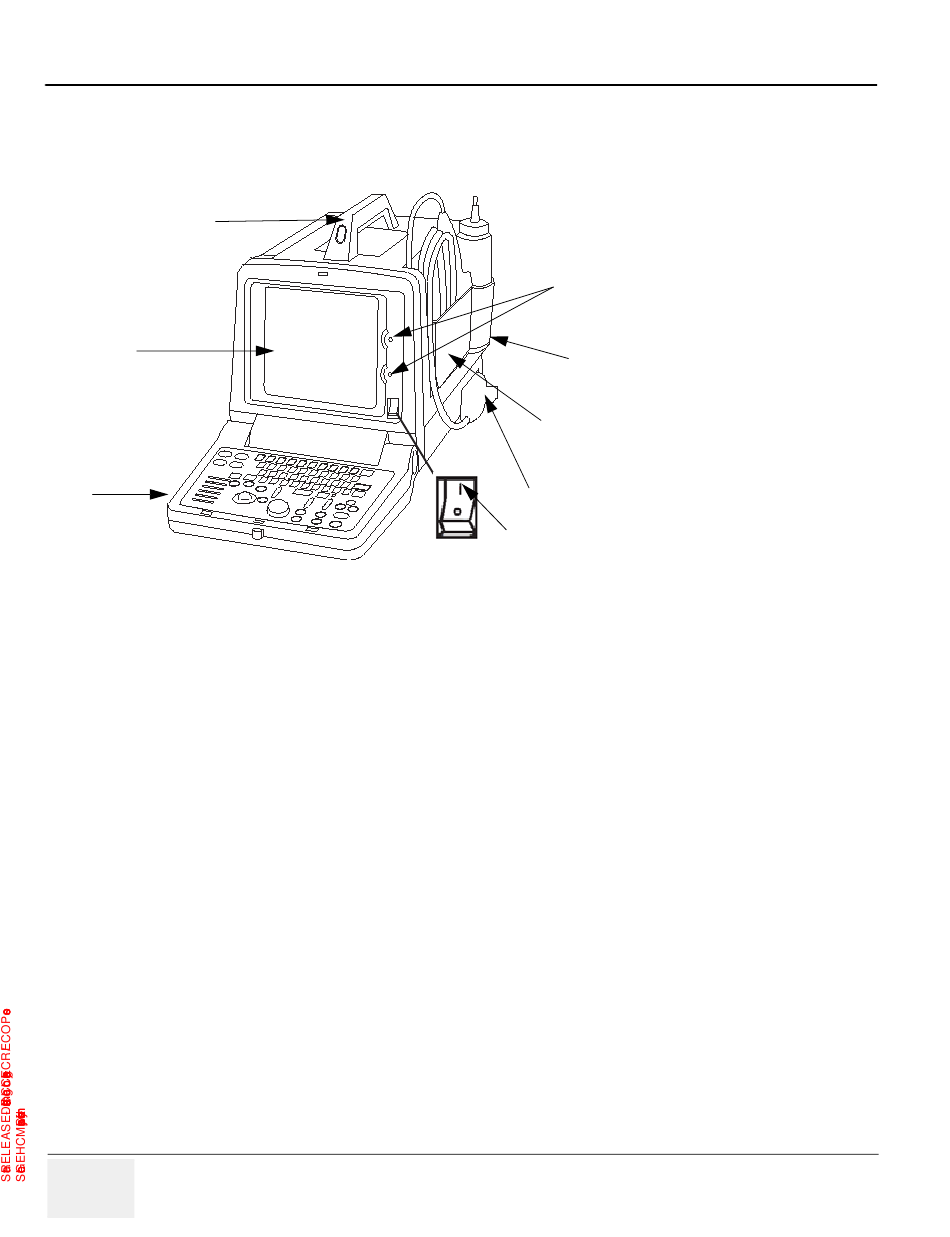

Figure 4-5 LOGIQ™ 100 PRO Major Components
• LOGIQ™ 100 PRO is a portable ultrasound imaging scanner. It also has provisions for analog
input sources like The system can be used for:
-
-
-
• LOGIQ™ 100 PRO is a digital beam forming system and can handle up to 16 channel,64
element by use of multiplexing.
• Signal flow from the Probe Connector to the Front End, then to the Mid Processors and Da
Vinci CPU and finally to the monitor and peripherals.
• System configuration is stored on EPROM and all necessary software is loaded when powered
up.
Page 5-2
Ap p r o v e d Do c u m e n t - 5 3 0 5 8 8 0 - 1 0 0 T PH_ r 3 . p d f Pa g e 8 9 o f 1 9 7
3
EVISION
B-Mode Black and White imaging
M-Mode Black and White imaging
Combinations of the above
Section 5-2 - General Information
LOGIQ™ 100 PRO S
1.) Probe Holder
2.) Gel Bottle Holder
3.) Brightness & Contrast
4.) Handle
3
5.) Monitor
6.) Keyboard
7.) Probe connector
2 8.) Power Switch
1
7
8
