Printing should not be done while live scanning patients. Also, the Printer cable should not be
attached to the LOGIQ™ 100 PRO during the scan.
For Europe Only: All devices connected to the LOGIQ™ 100 PRO must be CE Marked.

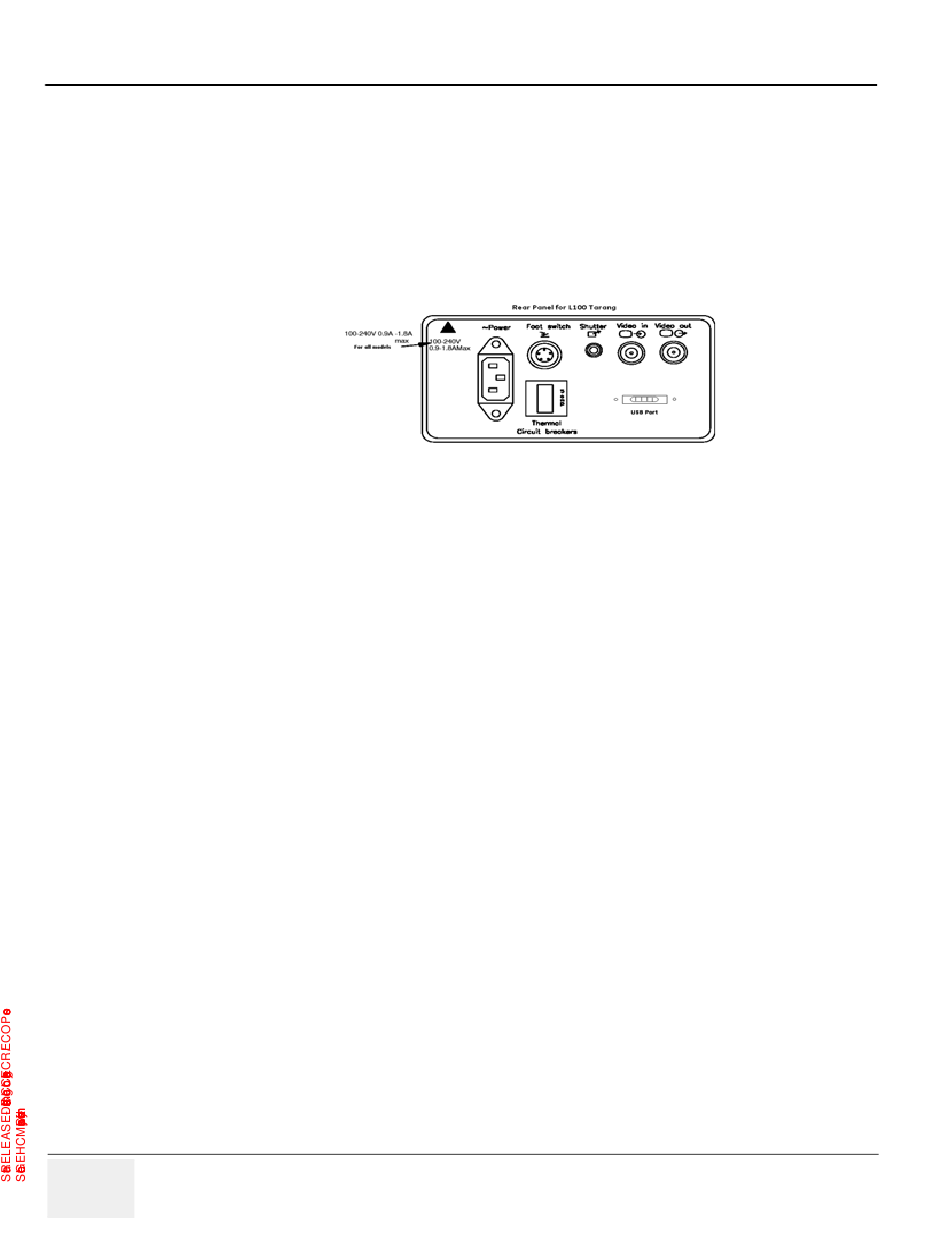

Located on the panel are video input & output connectors, footswitch connector, shutter connector,
power connector & control connections for Video Graphic Printer and USB Port for the
LOGIQ™ 100 PRO.
Figure 3-17 Optional Peripherals
The Thumb Drive/Memory Stick (Model TS512MJF150), HP Laser Jet printer(HP1020), Sony VGP
Printer( Model UP-D897MD/ UP-897MD) can be connected through the USB slot provided in the
rear panel.
