Start Here
1.7

Connect your PC to the Module

With the module securely mounted, connect your PC to the
Configuration/Debug port using an RJ45-DB-9 Serial Adapter Cable and a Null
Modem Cable.

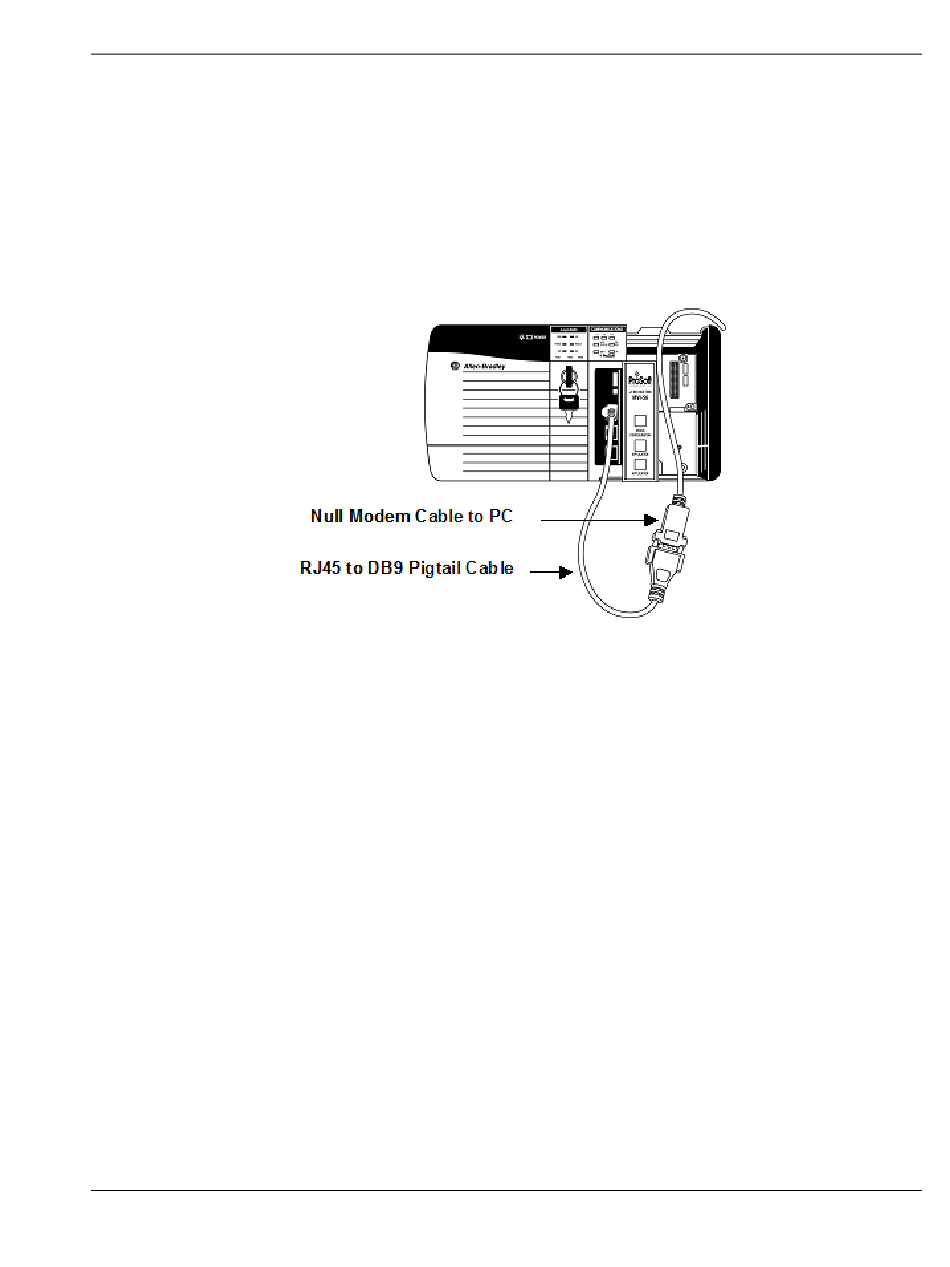

Attach both cables as shown.
1
Insert the RJ45 cable connector into the Configuration/Debug port of the
2
module.
Attach the other end to the serial port on your PC or laptop.
3
