5.2.3 Setting of the Basic Application Parameters

After the Oriented Start-up routine is executed and the parameters are correctly set, the inverter is ready for
operation in the V/f mode.
The inverter has a series of other parameters that allow its adaptation to different applications. This manual contains
some basic parameters whose setting is necessary in most cases. In order to simplify this task, there is a group
called Basic Application. To set the parameters contained in the Basic Application group, follow the sequence of
Figure 5.3 on page 5-5. For further details, refer to the programming manual of the CFW-11.
After setting those parameters, the start-up in the V/f mode will be completed.
Step Action/Result
1 - Monitoring mode
- Press "Menu" (right soft
key)
2 - Group "00 ALL
PARAMETERS" has been
already selected
- Group "01 PARAMETER
3
GROUPS" is then selected
4 - Group "02 ORIENTED
START-UP" is then selected
5 - Group "03 CHANGED
PARAMETERS" is selected
Display Indication
Ready 0rpm
LOC
0 rpm
0.0 A
0.0 Hz
13:48 Menu
Ready LOC 0rpm
00 ALL PARAMETERS
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
Return 13:48 Select
Ready 0rpm
LOC
00 ALL PARAMETERS
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
Return 13:48 Select
Ready LOC 0rpm
00 ALL PARAMETERS
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
Return 13:48 Select
Ready 0rpm
LOC
00 ALL PARAMETERS
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
Return 15:45 Select

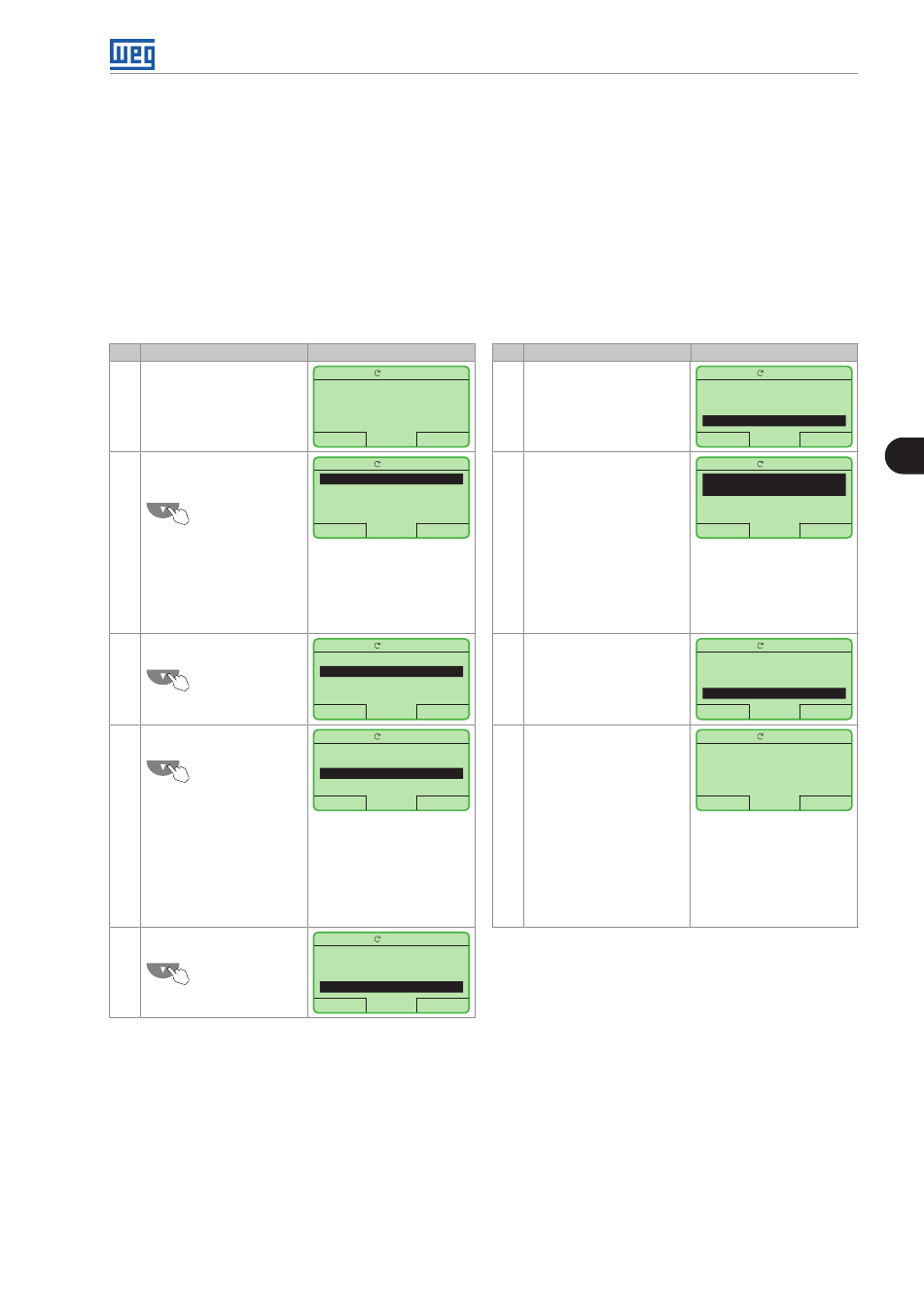

Figure 5.3: Setting of the basic application parameters
Energization and Start-Up
Step Action/Result
6 - Group "04 BASIC
APPLICATION" is selected
- Press "Select"
7 - Parameter "Acceleration
Time P0100: 20.0 s" has
been already selected
- If needed, set P0100
according to the desired
acceleration time. To do so,
press "Select"
- Proceed similarly until all
parameters of group "04
BASIC APPLICATION" have
been set. When finished,
press "Return" (left soft key)
- Press "Return"
8
9 - The display returns to the
monitoring mode and the
inverter is ready to run
Display Indication
Ready 0rpm
LOC
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
04 BASIC APPLICATION
Return 15:45 Select
Ready LOC 0rpm
Acceleration Time
P0100: 20.0s
Deceleration Time
P0101: 20.0s
Return 15:45 Select
Ready 0rpm
LOC
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
04 BASIC APPLICATION
Return 15:45 Select
Ready LOC 0rpm
0 rpm
0.0 A
0.0 Hz
15:45 Menu
