The electronics of the UP11W G2 is powered via connector XC6, located on the IUP board; it is described in
3.16 on page 3-30.
XC6
1
2
3

3.2.12.2 UC11 G2 Connections

3
DIM1 and DIM2 digital inputs located on the ICUP1 board
parameters P0832 and P0833 respectively.
Connector XC5
1 DIM1
2 DIM2
3 COM
4 +24 V
5 GND_24 0 V reference for the 24 Vdc power supply
XC60: Connection
to control rack
3-30 | CFW-11W G2
Table 3.16: Description of connector XC6
Function
+24 Vcc Positive pole of the +24 Vdc power supply
NC Not connected
GND Reference of the +24 Vdc power supply
Table 3.17: Function of the signals on the connector XC5
Factory Default Function
DIM1 isolated digital input, programmable in (P0832).
Refer to the programming manual
DIM2 isolated digital input, programmable in (P0833).
Refer to the programming manual
Common point of the digital inputs of the ICUP1 board
24 Vdc power supply
XC67: Connection to DIP
the control rack (safety switches
stop) S1 and S2

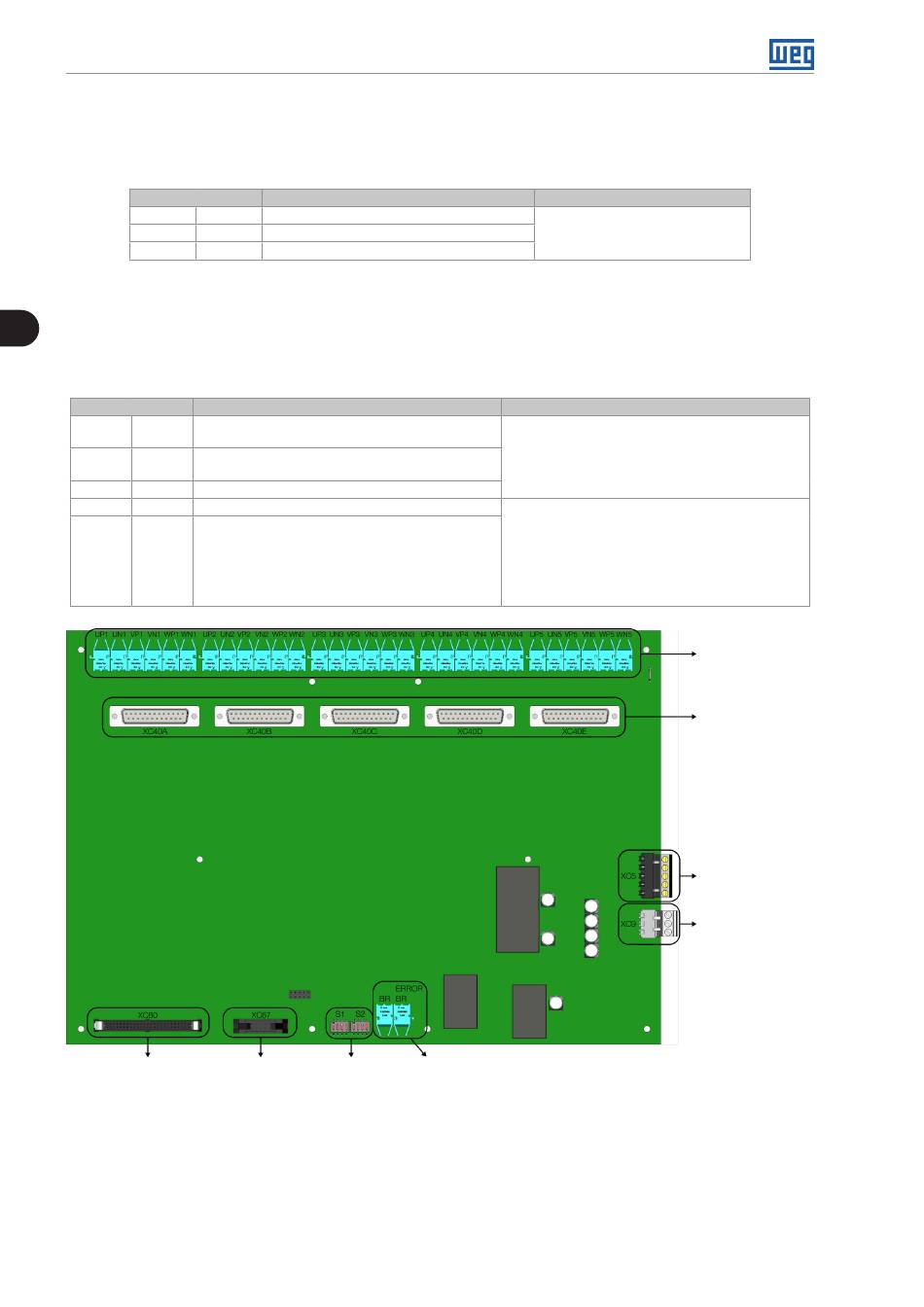

Figure 3.34: ICUP board connection points
24 Vdc power supply(± 3 %)
Consumption: 750 mA per UP11W G2
(Table 3.17 on page
High level ≥ 18 V
Low level ≤ 3 V
Maximum input voltage: 30 V
Input current: 11 mA @ 24 Vdc
Isolated power supply 24 Vdc ± 8 %
Capacity: 600 mA
Note 1: This power supply can be used to power DIM1 (ISOL)
and DIM2 (ISOL) digital inputs of the ICUP1 board
Note 2: This power supply is isolated from the 24 Vdc input
used to power ICUP1
Note 3: This is the same power supply available on the CC11
board
Fiber optics
connectors reserved
for WEG use
Specifications
3-30) can be programmed via
Specifications
Fiber optics
connectors
(connection to UP11)
Connectors DB25
XC40A to XC40E
(connection to UP11)
XC5: DIM1 and DIM2
Digital Inputs
XC9: 24 Vdc
Power Supply
