WEG CFW11W G2 Series User Manual page 40

U, V and W: connections to the motor.
: Grounding cable connection.
For a better current distribution between the UP11W G2, it is recommended that their output connections be
interconnected through a single paralleling busbar. The length of the cables between the UP11W G2 and the
paralleling busbar must be as short as possible.
ATTENTION!
The output cables U, V and W of the UP11W G2 must have the same length.
ATTENTION!
The motor cables must be distributed as evenly as possible in the connection to the paralleling
busbar, as in the example shown in
U
V
W

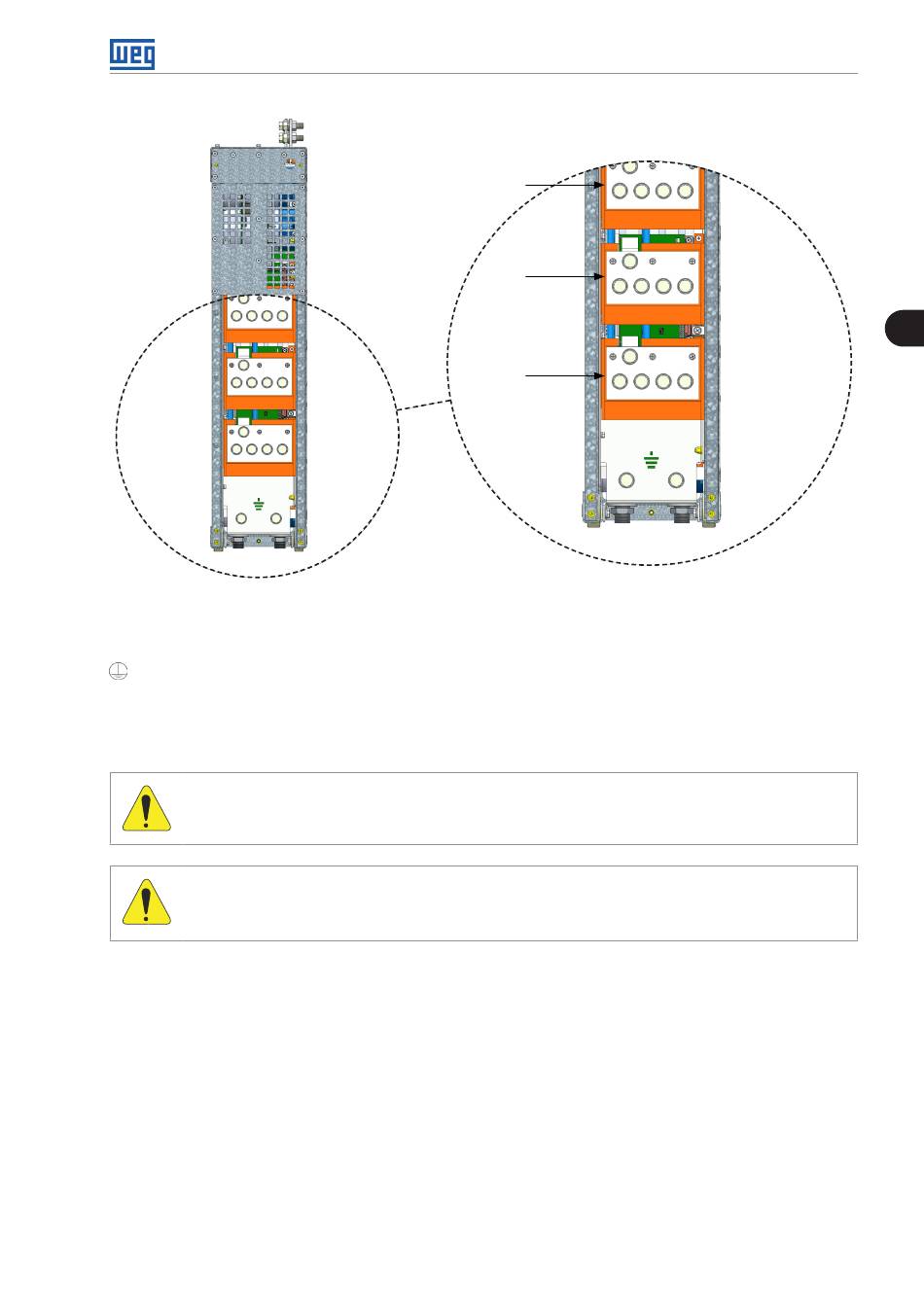

Figure 3.27: U, V, W and grounding terminals
Figure 3.28 on page
Installation and Connection
3-24. Distance "L" must be kept constant.
CFW-11W G2 | 3-23
3
