Summary of Contents for WEG Easy Drive CFW10

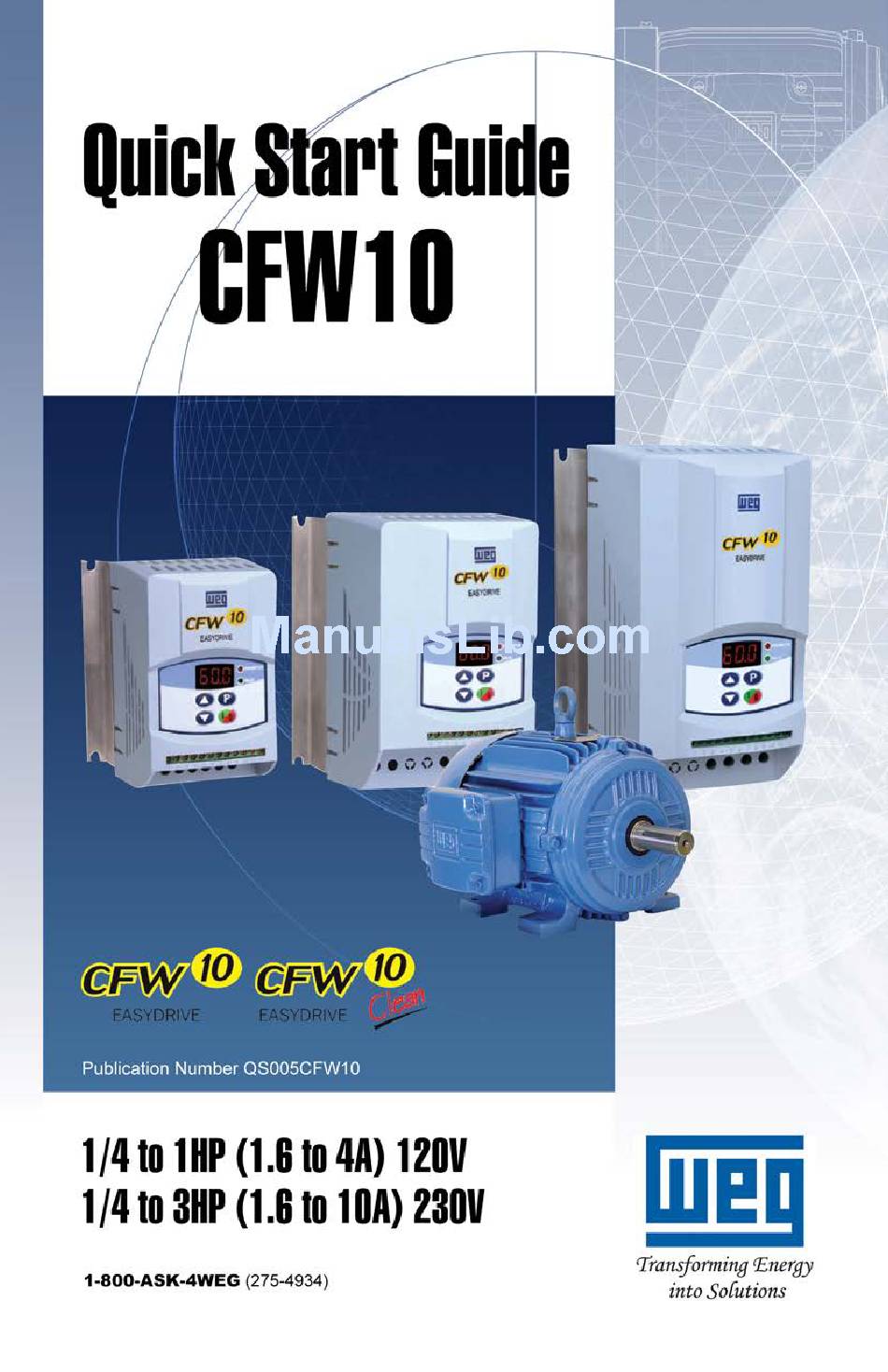

- Page 1 Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: info@ctiautomation.net...
-
Page 2: Power Connections
Power Connections: The CFW10 Quick Start Guide is a supplement to help get the CFW10 started quickly using the most common installation and configuration options. This CFW10 Quick Start Guide is not meant to replace the CFW10 User’s Manual. For detailed instructions, safety precautions, proper mounting, installation, configuration, and operation please refer to the CFW10 User’s Guide. - Page 3 Keypad Operation and Parameter Setup: Red LED – When lit the display indicates Description the parameter LED Display – Switches the display between number. indicates fault parameter number and codes, inverter content. status, parameter Increases Speed (frequency) number and value. and Parameter number/content Green LED –...
- Page 4 Keypad Start/Stop (Local Mode) continued: 4. If parameters were accessed or changed under Parameter Setup then the last parameter number or value will be displayed. Scroll up or down with the keys to the read only parameter P002 (Frequency Proportional Value for Speed) and press the key to see the value.
-
Page 5: Fault Codes
3 Wire Start/Stop (Remote Mode): Parameters: 1. Set DI1 (Start) to “On” (P263=13). See note below. 2. Set DI2 (Stop) to “Off” (P264=14). 3. Set DI4 to “No function” (P266=0). 4. Set P229=1 (DIx) if you want the 3 wire control in local mode. - Page 6 Parameters Example: • The following is a typical list of parameter changes that may be needed in addition to the factory default settings (P204=5). P000=5 Parameter Access (5 = Password) P204=5 Loads Factory Default P100=5 Acceleration Time = 5 seconds P101=10 Deceleration Time = 10 seconds P133=3.00...
