5.3 DATE AND TIME SETTING

Step Action/Result
Monitoring mode
1
- Press "Menu" (right soft
key)
2 - Group "00 ALL
PARAMETERS" is already
selected
3 - Group "01 PARAMETER
GROUPS" is selected
- Press "Select"
5
4 - A new list of groups is
displayed and group "20
Ramps" is selected
- Press until you
reach group "30 HMI"
5 - Group "30 HMI" is
selected
- Press "Select"
6 - Parameter "Day P0194" is
already selected
- If needed, set P0194
according to the actual day
To do so, press "Select"
and then,
to change P0194 value
- Follow the same steps
to set parameters "Month
P0195" to "Seconds P0199"

5.4 LOCKING OF PARAMETER MODIFICATION

In case you want to prevent unauthorized people from changing parameters, just change the content of P0000 to
a value different from 5. Follow basically the same procedure presented in
on page 5-2.
5-8 | CFW-11W G2
Display Indication
Ready
LOC
0 rpm
0.0 A
0.0 Hz
16:10
Ready
LOC
00 ALL PARAMETERS
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
Return 16:10
Ready
LOC
00 ALL PARAMETERS
01 PARAMETER GROUPS
02 ORIENTED START-UP
03 CHANGED PARAMETERS
Return 16:10
Ready
LOC
20 Ramps
21 Speed References
22 Speed Limits
23 V/F Control
Return 16:10
Ready
LOC
27 V/F DC Volt. Limit.
28 Dynamic Braking
29 Vector Control
30 HMI
Return 16:10
Ready
LOC
Day
P0194: 06
Month
P0195: 10
Return 16:10
or

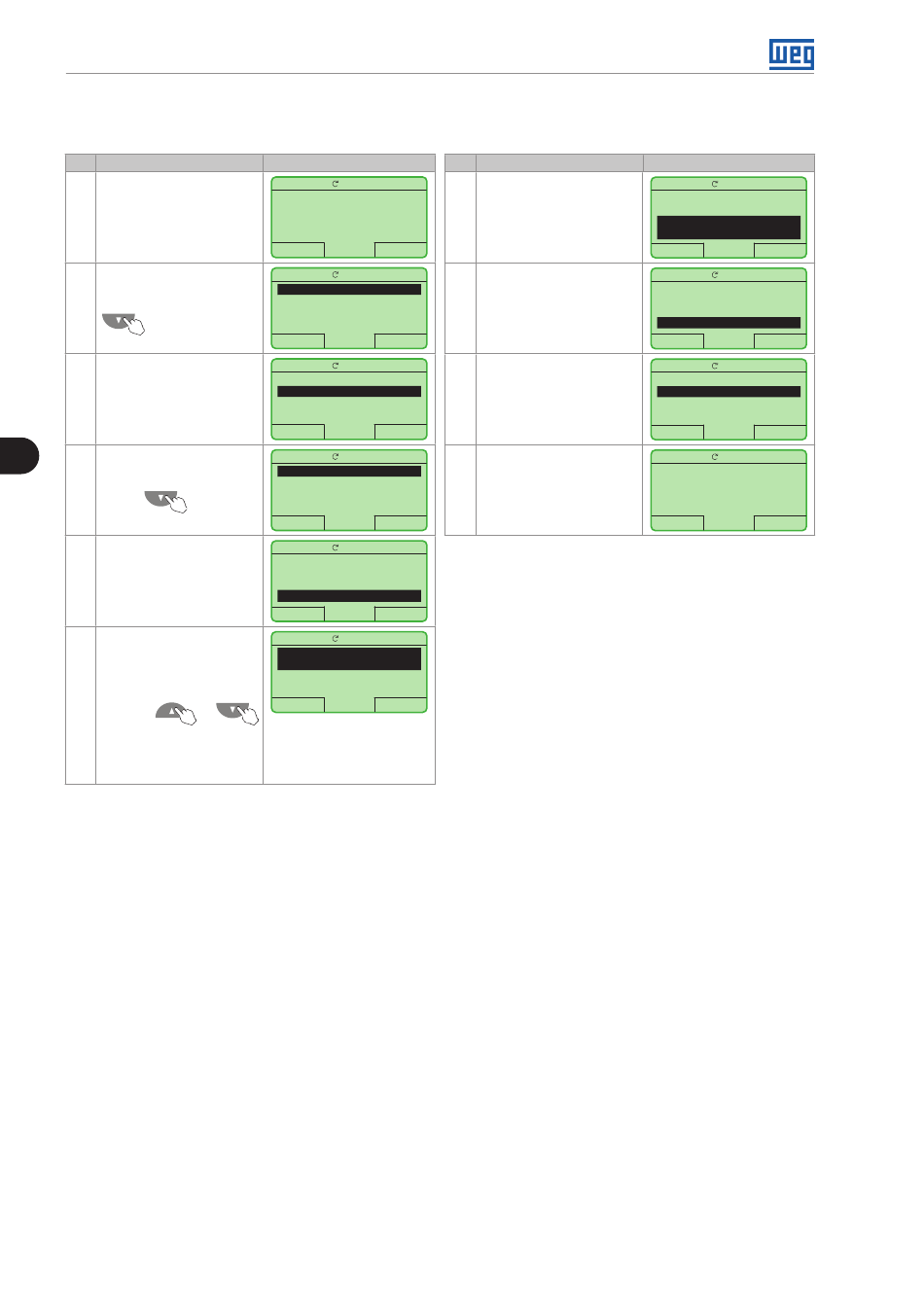

Figure 5.4: Date and time setting
