Technical Data

8.3 MECHANICAL DATA

The UP11W G2 module has a total mass of 67 Kg. Its dimensions are shown in
Figure 8.2 on page
8-6.
8
[2.389]
60.7
[0.591]
15
[1.614]
[34.348]
14
872.45

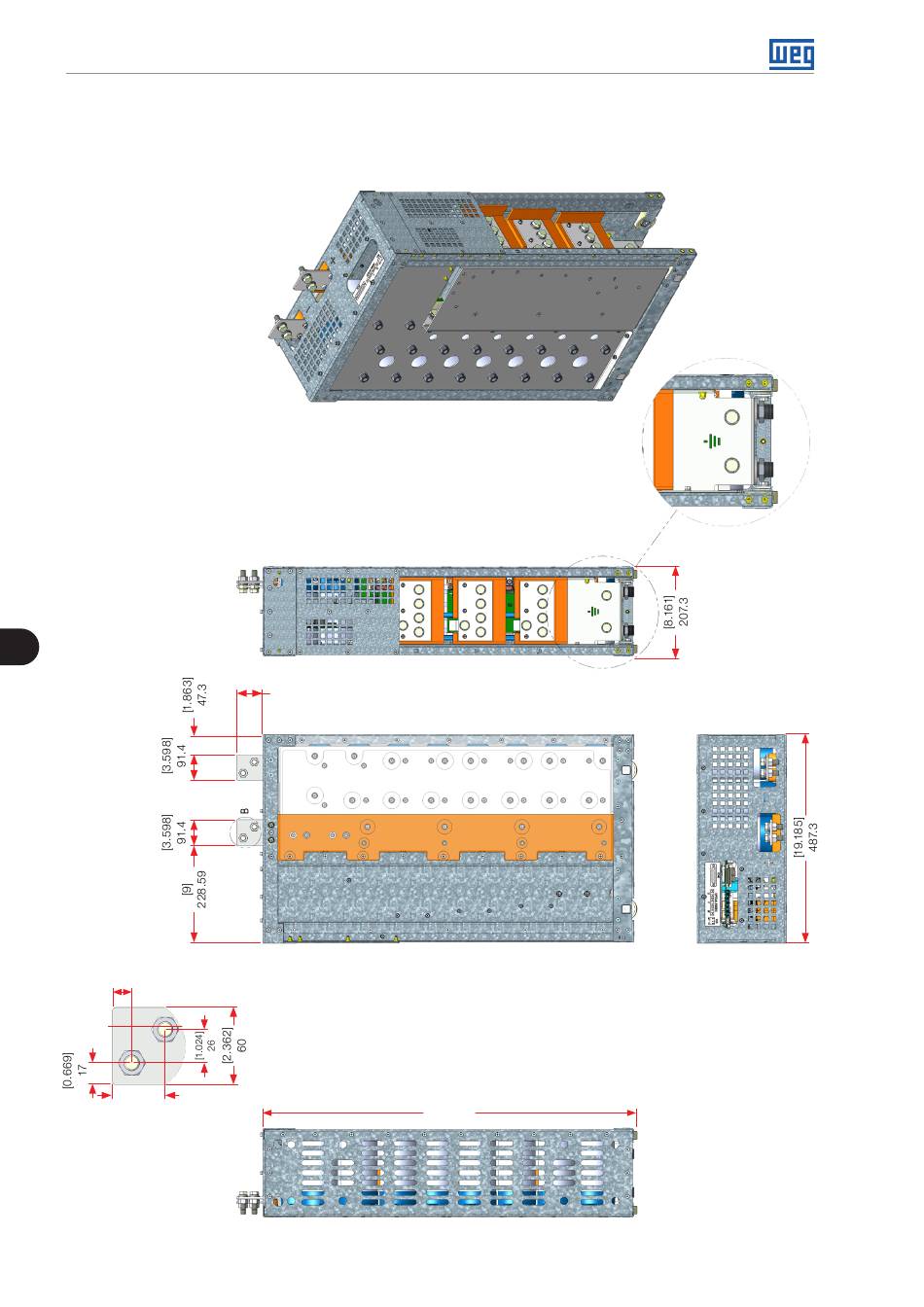

Figure 8.2: Mechanical dimensions of the UP11W G2 in mm [in]
8-6 | CFW-11W G2
