NOTE!
To assemble the complete drive, several additional items are necessary, such as input rectifier, fuses
on the DC power supply of each UP11W power unit, external pre-charge circuit and input reactance
with minimum input impedance of 3 % when it is a 6-pulse rectifier.
NOTE!
It is not necessary to include a current transformer (CT) in the drive for protection against short circuit
to the ground in the output, since each UP11W G2 has its own internal protection.

2.4 UC11 G2 NAMEPLATE

The UC11 G2 nameplate is located on the control rack.
WEG Material
Manufacturing date (30
corresponds to the week
and L to the year)

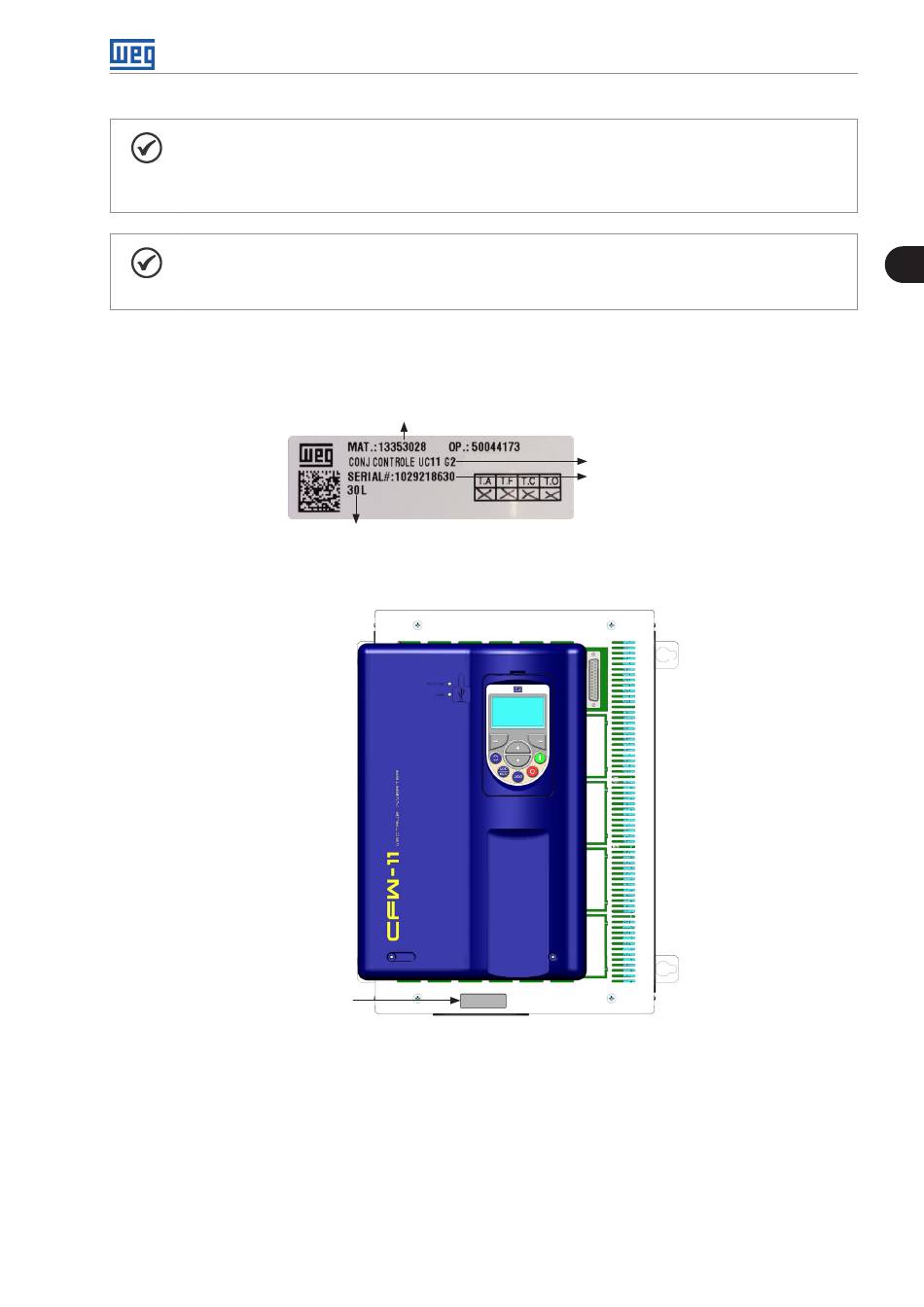

Figure 2.4: Nameplate of the UC11 G2
Nameplate
Figure 2.5: Nameplate location
General Information
UC11 model
Serial
CFW-11W G2 | 2-7
2
