3.2.12 Control Connections

3.2.12.1 UP11W G2 Connections

XC40: Connector
DB25
Connectors
fiber optic
UP11 Control
power supply

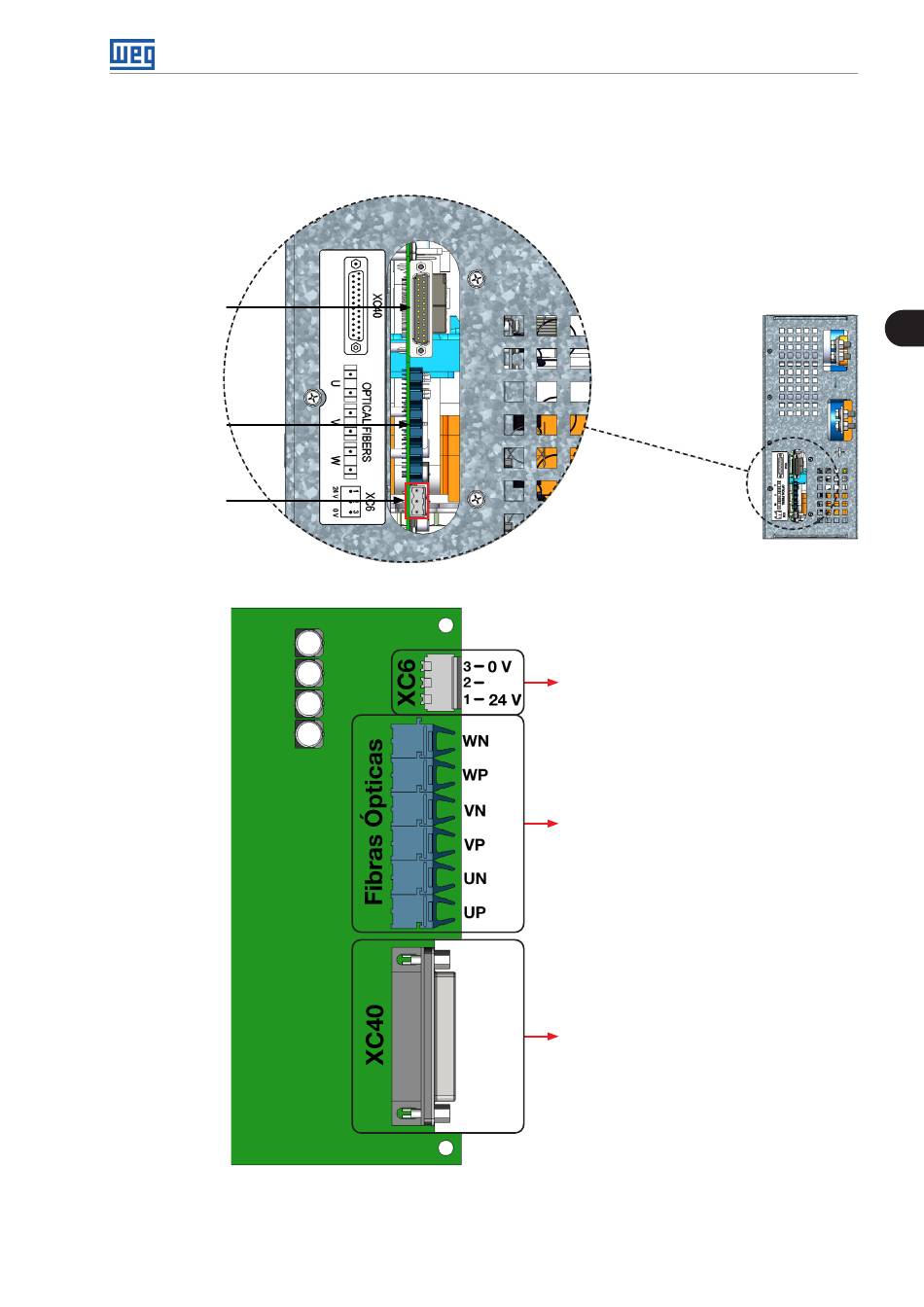

Figure 3.32: Control cable connection points on the UP11W G2
Figure 3.33: Identification of the control connections of the UP11W G2
Installation and Connection
XC6: Power supply 24 Vdc
(UP11 G2 control)
Fiber optics connectors
(connections to the ICUP board)
XC40: Connector DB25
(connection to the ICUP board)
3
