Energization and Start-Up
Step Action/Result
- Parameter "Oriented
5
Start-Up P0317: No" has
been already selected
- Press "Select"
- The value of "P0317 = [000]
6
No" is displayed
- The parameter value is
7
modified to "P0317 = [001]
Yes"
- Press "Save"
5
8 - At this point the Oriented
Start-up routine starts
and the "Config" status
is displayed at the top left
corner of the keypad
- The parameter "Language
P0201: English" is already
selected
- If needed, change the
language by pressing
"Select".Then, press
or
through the available options
and press "Save" to select a
different language
9 - If needed, change the value
of P0202 according to the
type of control. To do so,
press "Select"
- The settings listed here
are valid only for P0202 =
0 (V/f 60 Hz) or P0202 = 1
(V/f 50 Hz). For other options
(Adjustable V/f, V V W, or
Vector modes), please refer
to the programming manual
- If needed, change the value
10
of P0296 according to the
line rated voltage
To do so, press "Select"
This modification will affect
P0151, P0153, P0185,
P0321, P0322, P0323 and
P0400
5-4 | CFW-11W G2
Display Indication
Ready
LOC
Oriented Start-Up
P0317: No
Return 13:48 Select
Ready
LOC
P0317
Oriented Start-up
[000] No
Return 13:48 Save
Ready
LOC
P0317
Oriented Start-up
[001] Yes
Return 13:48 Save
Config
LOC
Language
P0201: English
Type of Control
P0202: V/F 60 HZ
Reset 13:48 Select
to scroll
Config LOC
Language
P0201: English
Type of Control
P0202: V/F 60 HZ
Reset 13:48 Select
Config
LOC
Type of Control
P0202: V/F 50 HZ
Line Rated Voltage
P0296: 500 - 525 V
Reset 13:48 Select

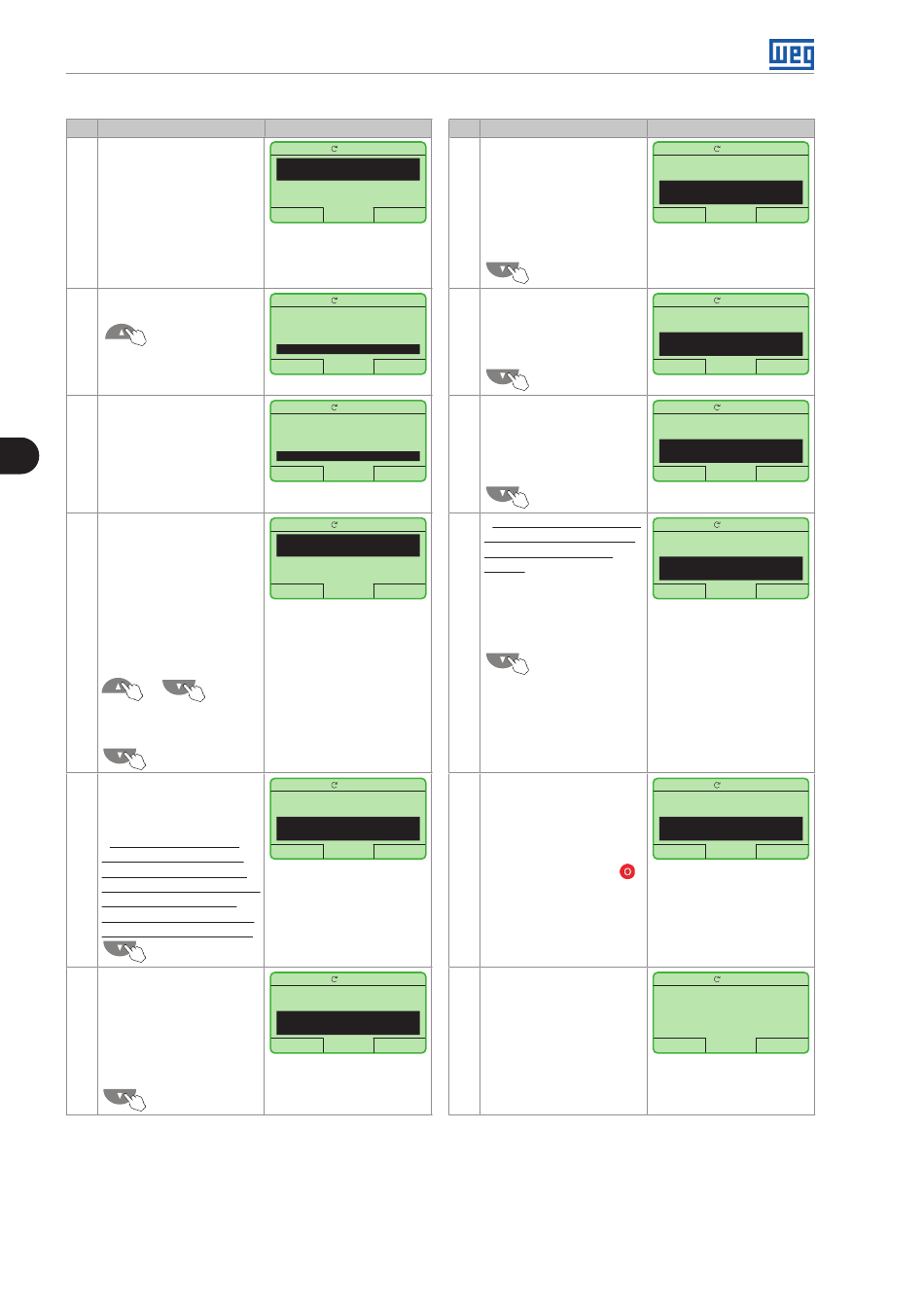

Figure 5.2: Oriented start-up
Step Action/Result
- If needed, set P0402
15
0rpm
according to the motor rated
speed. To do so, press
"Select". This modification
affects P0122 to P0131,
P0133, P0134, P0135,
P0182, P0208, P0288 and
P0289
- If needed, set P0403
16
0rpm
according to the motor rated
frequency. To do so, press
"Select". This modification
affects P0402
- If needed, change the value
17
0rpm
of P0404 according to the
motor rated power
To do so, press "Select"
This modification affects
P0410
18 - This parameter will only be
0rpm
visible if the encoder board
ENC1 is installed in the
inverter
- If there is an encoder
connected to the motor,
set P0405 according to the
encoder pulses number. To
do so, press "Select"
19 - If needed, set P0406
0rpm
according to the motor
ventilation. To do so, press
"Select"
- To complete the Oriented
Start-up routine, press
"Reset" (left soft key) or
20 - After few seconds, the
0rpm
display returns to the
monitoring mode
Display Indication
Config 0rpm
LOC
Motor Rated Current
P0401: 30.2 A
Motor Rated Speed
P0402: 1750 rpm
Reset 13:48 Select
Config 0rpm
LOC
Motor Rated Speed
P0402: 1750 rpm
Motor Rated Frequency
P0403: 50 Hz
Reset 13:48 Select
Config 0rpm
LOC
Motor Rated Frequency
P0403: 50 Hz
Motor Rated Power
P0404: 30hp 22kW
Reset 13:48 Select
Config 0rpm
LOC
Motor Rated Power
P0404: 30hp 22kW
Encoder Pulses Number
P0405: 1024 ppr
Reset 13:48 Select
Config LOC 0rpm
Encoder Pulses Number
P0405: 1024 ppr
Motor Ventilation
P0406: Self-Vent.
Reset 13:48 Select
Ready 0rpm
LOC
0 rpm
0.0 A
0.0 Hz
13:48 Menu
