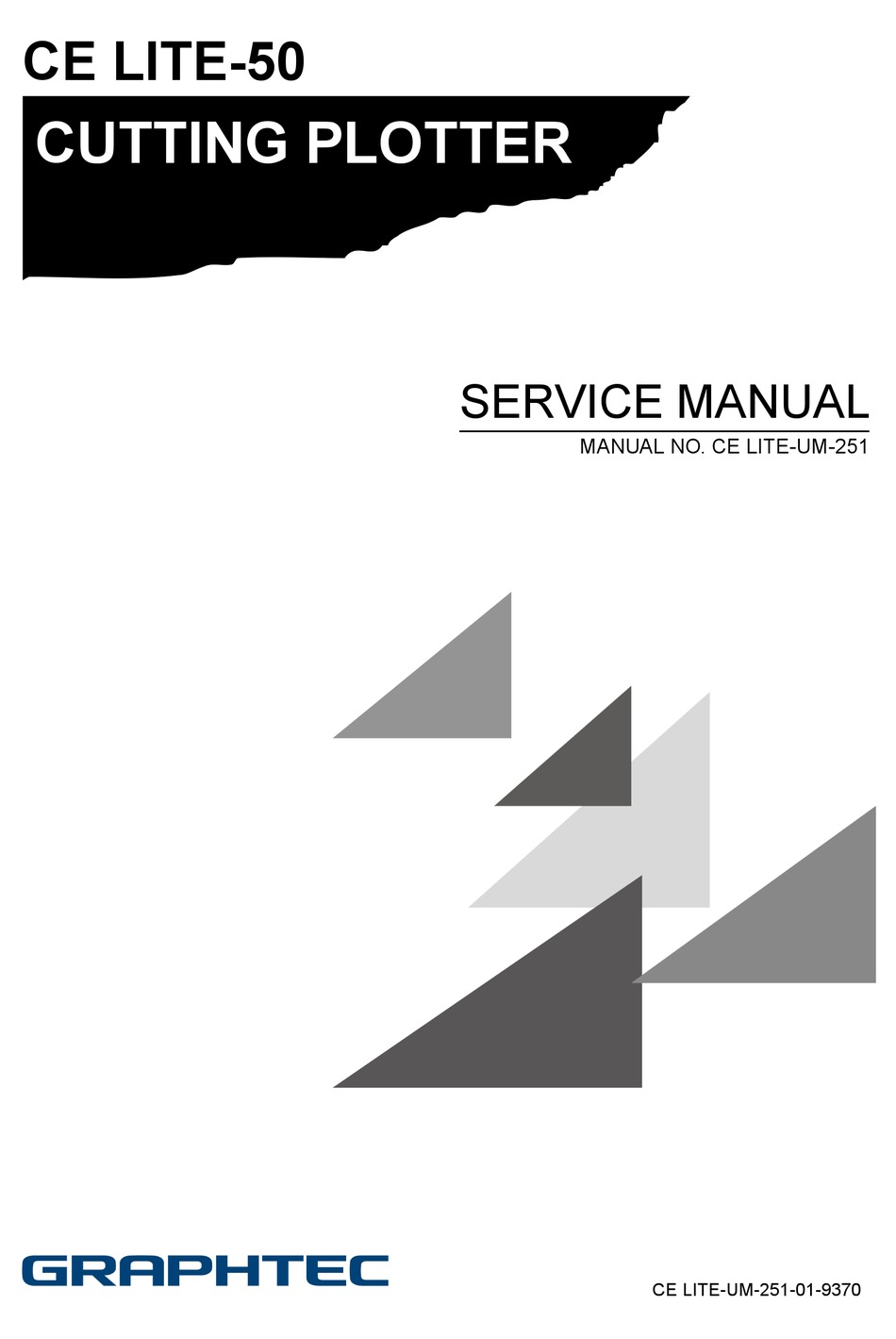

CE LITE-50
CUTTING PLOTTER
SERVICE MANUAL
MANUAL NO. CE LITE-UM-251
1
CE LITE-UM-251-01-9370

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE LITE-50 and is the answer not in the manual?

Questions and answers

Denny
February 25, 2025

How to calibrate the lever, the number to fill in

0
1 comments:
Mr. Anderson
February 25, 2025

To calibrate the lever on a Graphtec CE Lite-50, you need to use an application called the ADJ tool. This tool reads the lever position, allowing you to re-adjust it in the settings. Download and install the ADJ tool, then follow the instructions to recalibrate the lever position.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for GRAPHTEC CE LITE-50

Summary of Contents for GRAPHTEC CE LITE-50

  • Page 1 CE LITE-50 CUTTING PLOTTER SERVICE MANUAL MANUAL NO. CE LITE-UM-251 CE LITE-UM-251-01-9370...
  • Page 2 HISTORY OF REVISIONS No. Date issued Description of revision Page Edition 18.01.26 First Edition CE LITE-UM-251-9370...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION ............1-1 Main Specification ............1-1 External Dimensions ............1-3 Supplies ................1-3 PARTS NAMES and FUNCTIONS ......2-1 Operation Panel ............3-1 Screens and Functions of Buttons ......... 3-1 Menu Tree ............... 3-3 RECOMMENDED PARTS LIST ........4-1 LIST OF TOOLS ............
  • Page 4 6.2.5 Carriage cover ................6-18 6.2.6 Pen Board..................6-19 6.2.7 Width Detection Board ...............6-20 6.2.8 Registration Mark Sensor ............6-21 6.2.9 Home Position Detector Switch ..........6-22 6.2.10 Cam Board R ................6-24 6.2.11 Cam Board L .................6-25 6.2.12 Encoder Disk R ................6-26 6.2.13 Encoder Disk L ................6-27 6.2.14 Press Cover R ................6-28 6.2.15...
  • Page 5 ADJUSTMENT ............7-1 Setting Values of the Main Board........7-1 Selecting Language & Unit of Length ......7-4 Upgrading the System Firmware ........7-5 SERVICE MODE ............8-1 Self Diagnostic Test ............8-1 Clear Setup Mode ............8-3 Self Test ................8-5 Width Sensor Adjustment ..........
  • Page 6 10.8 Wiring Harness .............10-9 10.9 Other parts ..............10-9 11 TARGET COMPONENTS FOR WEEE INSTRUCTION 11-1 CE LITE-UM-251-9370...

  • Page 7: Introduction

    Windows 8.1 (Windows 8.1/Pro/Enterprise) Windows 8 (Windows 8/Pro/Enterprise) Compatible OS* Windows 7 (Ultimate/Enterprise/Professional/Home Premium) MacOS X 10.6 to macOS 10.13 (MacOS X 10.6 is compatible with only Graphtec Studio) Standard Software Graphtec Pro Studio, Graphtec Studio for Mac, Cutting Master 4, Windows Driver...
  • Page 8 1 INTRODUCTION *1: Varies depending on the type of Graphtec-authorized film and the cutting conditions. *2: For non-standardized sizes, use the carrier sheet. *3: The specifically designed pen adapter (sold separately) is required. Three types of fixing screws to support different diameter of a pen are included.

  • Page 9: External Dimensions

    1 INTRODUCTION External Dimensions Supplies Item Model No. Cutter Set (Standard Blade) PM-BS-001 Cutter Set (Thick Blade) PM-BS-002 Carrier Sheet (13-inch) PM-CM-003 Pen Adapter PM-BH-001 Cutting Mat PM-CR-001 Cross Cutter PM-CC-001 CE LITE-UM-251-9370...

  • Page 10: Parts Names And Functions

    2 PARTS NAMES and FUNCTIONS PARTS NAMES and FUNCTIONS Push roller Media holding roller (movable) Push roller positioning guide Tool holder Media set lever - left Tool carriage Push roller Media sensor Media set lever - right Cutter groove Operation panel Front Guide Roll media stocker Power switch...

  • Page 11: Operation Panel

    3 OPERATION PANEL Operation Panel This section explains the types of screens and the function of buttons on the operation panel. Screens and Functions of Buttons HOME Screen "Menu" button ......Used to switch to the "MENU" screen. "CONDITION NO. Selection" buttons ..Used to select the CONDITION number. "CONDITION"...
  • Page 12 3 OPERATION PANEL Other Buttons "Page" button ......Used to switch to the next page. "Exit" button ......Used to exit the current screen. When touched before the button in the same screen is touched, the screen changes to the previous screen without setting the items.

  • Page 13: Menu Tree

    3 OPERATION PANEL Menu Tree HOME MENU MENU page [TOOL] [TANGENTIAL MODE] [SPEED] [OVERCUT START] [FORCE] [OVERCUT END] [LOAD MEDIA] [ACCELERATION] [DISTANCE ADJUST] Load the Media Next Page CE LITE-UM-251-9370...
  • Page 14 3 OPERATION PANEL HOME Previous Page [3 PIECES] [SELECT FILE] CE LITE-UM-251-9370...
  • Page 15 3 OPERATION PANEL MENU [TOOL] [ARMS] [MODE 1] [SE NSOR OFFSET ADJ. ] [MODE 2] [MODE 3] [CHECK MARK SCAN ] Next Page CE LITE-UM-251-9370...
  • Page 16 3 OPERATION PANEL MENU Previous Page [AREA] [MEDIA] [INTERFACE] [ADVANCE] [TEST] CE LITE-UM-251-9370...

  • Page 17: Recommended Parts List

    4 RECOMMENDED PARTS LIST RECOMMENDED PARTS LIST Part No. Part Name Q'ty Remarks U792000810 LCD, CE LITE-50 U621730403 Pinch Roller Left and Right U621730412 Pinch Roller Holder Left and Right U694602521 Y Flexible Cable, FFC506301A U684507420 Fan Motor, Left U684507430 Fan Motor, Center...

  • Page 18: List Of Tools

    5 LIST OF TOOLS LIST OF TOOLS Tools Adjustment Item Tool Firmware update PC, USB I/F cable X drive belt tension adjustment 0.5 mm spacer Push-pull gauge (2 kg) Replacing the Y-flexible cable Ruler Replacing the X motor 0.5 mm spacer Greasing and Gluing Points Grease or Glue Point Grease or Glue Name...

  • Page 19: Disassembly And Reassembly

    DISASSEMBLY AND REASSEMBLY CAUTION Be sure to spread a mat on the table when placing the surface other than the bottom of CE LITE-50 down. The paint on the edge of the CE LITE-50 may be peeled off. Exterior Parts 6.1.1...
  • Page 20 6 DISASSEMBLY AND REASSEMBLY (3) Remove the M3L6 binding head screw to detach the shield. (4) Unlock the connector of the LCD to disconnect the flexible cable. M3L6 binding head screw Flexible cable connector (5) Detach the right side cover. How to detach the LCD (1) Remove the two M3L8 self-tapping screws holding the right side panel, and then detach the right side panel.
  • Page 21 6 DISASSEMBLY AND REASSEMBLY How to reinstall the right side cover (1) Connect the flexible cable of the LCD to the main board. (2) Tighten the M3L6 binding head screw to hold the shield. M3L6 bind head screw Flexible cable connector lock (3) Attach the right side cover so that the flexible cable and shield pass through the notch on the right side cover.
  • Page 22 6 DISASSEMBLY AND REASSEMBLY (4) Align the LCD with the four guide ribs on the right side cover. (5) Insert the two hooks on the back side of the panel into the right side cover, and then tighten the two M3L8 binding head screws to hold the right side panel. CE LITE-UM-251-9370...

  • Page 23: Left Side Cover

    6 DISASSEMBLY AND REASSEMBLY 6.1.2 Left Side Cover How to detach the left side cover (1) Remove the three M3L6 binding head screws and the two M3L8 self-tapping screws holding the left side cover, and then detach the left side cover. M3L6 binding head screw M3L8 self-tapping screw M3L6 binding head screws...

  • Page 24: Top Cover

    6 DISASSEMBLY AND REASSEMBLY 6.1.3 Top Cover How to detach the top cover (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Remove the six M3L4 binding head screws holding the top cover, and then detach the top cover. M3L4 binding head screws M3L4 binding head screws...

  • Page 25: Cross Cut Base

    6 DISASSEMBLY AND REASSEMBLY 6.1.4 Cross Cut Base How to detach the cross cut base (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Remove the three M3L6 self-tapping screws holding the cross cut base, and then detach the cross cut base.

  • Page 26: Bottom Cover

    6 DISASSEMBLY AND REASSEMBLY 6.1.5 Bottom Cover How to detach the bottom cover (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Remove the six M3L6 sems screws and the two M3L6 self-tapping screws holding the bottom cover, and then detach the bottom cover.

  • Page 27: Front Guide

    6 DISASSEMBLY AND REASSEMBLY 6.1.6 Front Guide How to detach the front guide (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).
  • Page 28 6 DISASSEMBLY AND REASSEMBLY How to reinstall the front guide (1) Reattach the front guide in the reverse order in which it was detached. Attach the front guide aligning to the three guide bosses and confirm that the seven tabs are engaged with the frame.

  • Page 29: Rear Guide

    6 DISASSEMBLY AND REASSEMBLY 6.1.7 Rear Guide How to detach the rear guide (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).

  • Page 30: Mechanical Parts

    6 DISASSEMBLY AND REASSEMBLY Mechanical Parts 6.2.1 Y-flexible Cable Cover How to detach the Y-flexible cable cover (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Remove the two M3L6 binding head screws holding the Y-flexible cable cover, and then detach the Y-flexible cable cover.

  • Page 31: Y-Flexible Cable Guard

    6 DISASSEMBLY AND REASSEMBLY 6.2.2 Y-flexible Cable Guard How to detach the Y-flexible cable guard (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Detach the Y-flexible cable cover (See subsection 6.2.1.).
  • Page 32 6 DISASSEMBLY AND REASSEMBLY How to reinstall the Y-flexible cable guard (1) Loosen the M3L6 TP head screw holding the Y drive belt tension arm. Left side frame M3L6 TP head screw (2) Tighten the M3L6 TP head screw while pushing the Y drive belt tension arm in the direction of the arrow to loosen the Y drive belt as shown in the figure.
  • Page 33 6 DISASSEMBLY AND REASSEMBLY (5) Move the carriage to the left end. Fix the Y-flexible cable with double-sided tapes at a position where the left edge of the Y-flexible cable is within the range as shown in the picture below. Confirm that the left edge of the cable is within this range.

  • Page 34: Paper Sensor

    6 DISASSEMBLY AND REASSEMBLY 6.2.3 Paper Sensor How to detach the paper sensor (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).

  • Page 35: Support Rollers

    6 DISASSEMBLY AND REASSEMBLY 6.2.4 Support Rollers How to detach the support rollers (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).

  • Page 36: Carriage Cover

    6 DISASSEMBLY AND REASSEMBLY 6.2.5 Carriage cover How to detach the carriage cover (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Release the three hooks of the carriage cover, and pull up the carriage cover while holding the hooks.

  • Page 37: Pen Board

    6 DISASSEMBLY AND REASSEMBLY 6.2.6 Pen Board How to detach the pen board (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Detach the carriage cover (See subsection 6.2.5.). (5) Disconnect the all cables from the pen board.

  • Page 38: Width Detection Board

    6 DISASSEMBLY AND REASSEMBLY 6.2.7 Width Detection Board How to detach the width detection board (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Detach the carriage cover (See subsection 6.2.5.).

  • Page 39: Registration Mark Sensor

    6 DISASSEMBLY AND REASSEMBLY 6.2.8 Registration Mark Sensor How to detach the registration mark sensor (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Detach the carriage cover (See subsection 6.2.5.).

  • Page 40: Home Position Detector Switch

    6 DISASSEMBLY AND REASSEMBLY 6.2.9 Home Position Detector Switch How to detach the home position detector switch (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Detach the Y-flexible cable cover (See subsection 6.2.1.).
  • Page 41 6 DISASSEMBLY AND REASSEMBLY How to reinstall the home position detector switch (1) Reattach the home position detector switch to the tool carriage. (2) Loosen the M3L6 TP head screw holding the Y drive belt tension arm. M3L6 TP head screw Left side of frame (3) Tighten the M3L6 TP head screw while pushing the Y drive belt tension arm in the direction of the arrow to loosen the Y drive belt as shown in the figure.

  • Page 42: Cam Board R

    6 DISASSEMBLY AND REASSEMBLY 6.2.10 Cam Board R How to detach the cam board R (1) Detach the right side cover (See subsection 6.1.1.). (2) Remove the M3L6 self-tapping screw holding the cam board R, and then detach the cam board R. M3L6 self-tapping screw (3) Disconnect the cable from the cam board R.

  • Page 43: Cam Board L

    6 DISASSEMBLY AND REASSEMBLY 6.2.11 Cam Board L How to detach the cam board L (1) Detach the left side cover (See subsection 6.1.2.). (2) Remove the M3L6 self-tapping screw holding the cam board L, and then detach the cam board L. M3L6 self-tapping screw (3) Disconnect the cable from the cam board L.

  • Page 44: Encoder Disk R

    6 DISASSEMBLY AND REASSEMBLY 6.2.12 Encoder Disk R How to detach the encoder disk R (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the cam board R (See subsection 6.2.10.). (3) Remove the M3L6 self-tapping screw holding the encoder disk R, and then detach the encoder disk R.

  • Page 45: Encoder Disk L

    6 DISASSEMBLY AND REASSEMBLY 6.2.13 Encoder Disk L How to detach the encoder disk L (1) Detach the left side cover (See subsection 6.1.2.). (2) Detach the cam board L (See subsection 6.2.11.). (3) Remove the M3L6 self-tapping screw holding the encoder disk L, and then detach the encoder disk L.

  • Page 46: Press Cover R

    6 DISASSEMBLY AND REASSEMBLY 6.2.14 Press Cover R How to detach the press cover R (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the cam board R (See subsection 6.2.10.). (3) Detach the encoder disk R (See subsection 6.2.12.). (4) Remove the three M3L6 binding head screws holding the press cover R, and then detach the press cover R.

  • Page 47: Press Cover L

    6 DISASSEMBLY AND REASSEMBLY 6.2.15 Press Cover L How to detach the press cover L (1) Detach the left side cover (See subsection 6.1.2.). (2) Detach the cam board L (See subsection 6.2.11.). (3) Detach the encoder disk L (See subsection 6.2.13.). (4) Remove the three M3L6 binding head screws holding the press cover L, and then detach the press cover L.

  • Page 48: Press Unit R

    6 DISASSEMBLY AND REASSEMBLY 6.2.16 Press Unit R How to detach the press unit R (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the cam board R (See subsection 6.2.10.). (3) Detach the encoder disk R (See subsection 6.2.12.). (4) Detach the press cover R (See subsection 6.2.14.).
  • Page 49 6 DISASSEMBLY AND REASSEMBLY How to disassemble the press unit R (1) Push down and rotate the press hold to go under the groove of the press box to detach. Press hold Press box (2) Remove the spacer from the press box. Spacer (3) Remove the bearing and the spring from the press hold.
  • Page 50 6 DISASSEMBLY AND REASSEMBLY How to reassemble the press unit R (1) Apply SUMITEC 305 to the press hold sliding area part on the press box. Apply SUMITEC 305 to the both sides of the press box. Press box Press hold sliding area (2) Reassemble the press unit R in the reverse order in which it was disassembled.
  • Page 51 6 DISASSEMBLY AND REASSEMBLY How to reinstall the press unit R (1) Firmly fit the drive roller shaft to the bearing of the press unit R, and then reattach the press unit R to the frame aligning to the notch. (2) Spread a suitable amount of SUMITEC 305 to the camshaft and the top of the press unit as shown below.

  • Page 52: Press Unit L

    6 DISASSEMBLY AND REASSEMBLY 6.2.17 Press Unit L How to detach the press unit L (1) Detach the left side cover (See subsection 6.1.2.). (2) Detach the cam board L (See subsection 6.2.11.). (3) Detach the encoder disk L (See subsection 6.2.13.). (4) Detach the press cover L (See subsection 6.2.15.).
  • Page 53 6 DISASSEMBLY AND REASSEMBLY How to disassemble the press unit L (1) Push down and rotate the press hold to go under the groove of the press box to detach. Press hold Press box (2) Remove the bearing and the spring from the press hold. Bearing CE LITE-UM-251-9370 6-35...
  • Page 54 6 DISASSEMBLY AND REASSEMBLY How to reassemble the press unit L (1) Apply SUMITEC 305 to the press hold sliding area on the press box. Apply SUMITEC 305 to the both sides of the press box. Press box Press hold sliding area (2) Reassemble the press unit L in the reverse order in which it was disassembled.
  • Page 55 6 DISASSEMBLY AND REASSEMBLY (3) Reattach the camshaft to the frame with its D-cut surface facing up, and then reattach the cam lever to the camshaft. Cam lever lowered D-cut surface up Cam shaft L (4) Tighten the three M3L6 binding head screws to hold the press cover L. (5) Reattach the other parts in the reverse order in which they were detached.

  • Page 56: Drive Belt

    6 DISASSEMBLY AND REASSEMBLY 6.2.18 X Drive Belt How to detach the X drive belt (1) Detach the left side cover (See subsection 6.1.2.). (2) Detach the cam board L (See subsection 6.2.11.). (3) Detach the encoder disk L (See subsection 6.2.13.). (4) Detach the press cover L.
  • Page 57 6 DISASSEMBLY AND REASSEMBLY How to reinstall the X drive belt (1) Apply a suitable amount of grease to the three places on the inside of the X drive belt. (2) Reattach the X drive belt to the X drive pulley and the X motor pulley. X motor pulley (3) Spread a suitable quantity of TB1401B on the M3L6 binding head screw holding the X drive pulley, and then tighten the screw to fix the X drive pulley.
  • Page 58 6 DISASSEMBLY AND REASSEMBLY (5) Pull the X motor bracket by a force gauge with a 1.8 kg to 2.0 kg force, and then tighten the M4L6 binding head screws to fix the X motor bracket. 1.8 kg to 2.0 kg force Attach the force gauge here (6) Remove the spacer.

  • Page 59: Motor

    6 DISASSEMBLY AND REASSEMBLY 6.2.19 X Motor How to detach the X motor (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the bottom cover (See subsection 6.1.5.). (4) Detach the front guide (See subsection 6.1.6.). (5) Detach the cam board L (See subsection 6.2.11.).
  • Page 60 6 DISASSEMBLY AND REASSEMBLY How to reinstall the X motor (1) Reattach the X motor to the X motor bracket with two M3L6 binding head screws. (2) Connect the cable to the X motor. (3) Attach the X motor bracket to the frame, and then temporally tighten the three M4L6 binding head screws.
  • Page 61 6 DISASSEMBLY AND REASSEMBLY (7) Pull the X motor bracket by a force gauge with a 1.8 kg to 2.0 kg force, and then tighten the M4L6 binding head screws to fix the X motor bracket. 1.8 kg to 2.0 kg force Attach the force gauge here (8) Remove the spacer.

  • Page 62: Y Motor

    6 DISASSEMBLY AND REASSEMBLY 6.2.20 Y Motor How to detach the Y motor (1) Detach the right side cover (See subsection 6.1.1.). (2) Remove the two M3L6 binding head screws holding the Y motor shield, and then detach the Y motor shield.

  • Page 63: Y Drive Belt Tension Arm

    6 DISASSEMBLY AND REASSEMBLY 6.2.21 Y Drive Belt Tension Arm How to detach the Y drive belt tension arm (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Detach the Y-flexible cable cover (See subsection 6.2.1.).
  • Page 64 6 DISASSEMBLY AND REASSEMBLY (9) Remove the Y drive belt from the tool carriage. (10) Remove the M3L6 TP head screw holding the Y drive belt tension arm. M3L6 TP head screw Spring (11) Detach the spring from the Y drive belt tension arm. (12) Detach the E-ring, and then pull down the shaft from the bottom of the Y drive belt tension bracket.
  • Page 65 6 DISASSEMBLY AND REASSEMBLY (14) Detach the E-ring and the Y drive belt tension arm shaft. Y drive belt tension arm shaft (15) Detach the Y drive belt, Y idler pulley, bearing, and washers from the Y drive belt tension arm. Washer Bearing Y idler pulley...
  • Page 66 6 DISASSEMBLY AND REASSEMBLY How to reinstall the Y drive belt tension arm (1) Reassemble the Y drive belt tension arm. (2) Attach the Y drive belt tension arm to the bracket, and then pass the Y drive belt through the Y drive belt tension arm.

  • Page 67: Y Drive Belt

    6 DISASSEMBLY AND REASSEMBLY 6.2.22 Y Drive Belt How to detach the Y drive belt (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Detach the Y-flexible cable cover (See subsection 6.2.1.).
  • Page 68 6 DISASSEMBLY AND REASSEMBLY (8) Remove the two M2L5 self-tapping screws holding the Y drive belt guard, and then detach the Y drive belt guard from the back of the tool carriage. Y drive belt guard M2L5 self-tapping screw (9) Remove the Y drive belt from the tool carriage. (10) Remove the Y drive belt from the Y motor bracket and the Y drive belt tension arm.
  • Page 69 6 DISASSEMBLY AND REASSEMBLY How to reinstall the Y drive belt (1) Pass the Y drive belt through the Y drive pulley and the Y idler pulley. (2) Spread a suitable quantity of SUMITEC 305 on the Y drive pulley. (3) Insert the Y drive belt into the notches on the back of the carriage with putting its ends together as shown in the picture below.
  • Page 70 6 DISASSEMBLY AND REASSEMBLY (8) Move the tool carriage to the left side, and then spread a suitable quantity of SUMITEC 305 on the two areas of the Y drive belt. Rear Side (9) Loosen and re-tighten the M3L6 TP head screw while pushing the Y drive belt tension arm in the direction of the arrow to loosen the Y drive belt again.

  • Page 71: Media Guide

    6 DISASSEMBLY AND REASSEMBLY 6.2.23 Media Guide How to detach the media guide (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cam board R (See subsection 6.2.10.). (4) Detach the encoder disk R (See subsection 6.2.12.).
  • Page 72 6 DISASSEMBLY AND REASSEMBLY (14) Remove the five M3L8 self-tapping screws holding the media guide handle, and then detach the media guide handle from the media guide. M3L8 self-tapping screws How to reinstall the media guide (1) Reattach the media guide in the reverse order in which it was detached. CE LITE-UM-251-9370 6-54...

  • Page 73: Cutting Mat

    6 DISASSEMBLY AND REASSEMBLY 6.2.24 Cutting Mat How to detach the cutting mat (1) Peel off the cutting mat from the right side. How to reinstall the cutting mat (1) Clean the surface of the cutting mat base where the cutting mat was attached. (2) Attach the new cutting mat to the cutting mat base aligning to the left and bottom edge of the groove.

  • Page 74: Cutting Mat Base

    6 DISASSEMBLY AND REASSEMBLY 6.2.25 Cutting Mat Base How to detach the cutting mat base (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).
  • Page 75 6 DISASSEMBLY AND REASSEMBLY (9) Remove the two M3L6 binding head screws holding the cutting mat base, and then detach the cutting mat base from the right side. M3L6 binding head screw M3L6 binding head screw How to disassemble the cutting mat base (1) Remove the two M3L6 binding head screws and the eight M3L6 self-tapping screws holding the cutting mat base plate, and then detach the cutting mat base plate.
  • Page 76 6 DISASSEMBLY AND REASSEMBLY (2) Remove the two M2L4 self-tapping screws holding the LED boards, and then detach the LED boards from both sides of the cutting mat base. M2L4 self-tapping screws (3) Remove the four M2L3 binding head screws holding the light bar holders on both sides of the cutting mat base, and then detach the light bar holders.
  • Page 77 6 DISASSEMBLY AND REASSEMBLY How to reinstall the cutting mat base (1) Reattach the light bar holder to the cutting mat base. (2) Place the light bar aligning its center to the light bar holder, and then push it until it clicks. (3) Reassemble the other parts of the cutting mat base.

  • Page 78: Led Board R

    6 DISASSEMBLY AND REASSEMBLY 6.2.26 LED Board R How to detach the LED board R (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the cam board R (See subsection 6.2.10.). (3) Detach the encoder disk R (See subsection 6.2.12.). (4) Detach the press cover R (See subsection 6.2.14.).

  • Page 79: Led Board L

    6 DISASSEMBLY AND REASSEMBLY 6.2.27 LED Board L How to detach the LED board L (1) Detach the left side cover (See subsection 6.1.2.). (2) Detach the cam board L (See subsection 6.2.11.). (3) Detach the encoder disk L (See subsection 6.2.13.). (4) Detach the press cover L (See subsection 6.2.15.).
  • Page 80 6 DISASSEMBLY AND REASSEMBLY (3) Insert the spacer (0.5 mm) between the X motor bracket and the frame to secure the space. (4) Pull the X motor bracket by a force gauge with a 1.8 kg to 2.0 kg force, and then tighten the M4L6 binding head screws to fix the X motor bracket.

  • Page 81: Main Board

    6 DISASSEMBLY AND REASSEMBLY 6.2.28 Main Board How to detach the main board (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).
  • Page 82 6 DISASSEMBLY AND REASSEMBLY (9) Disconnect the X motor cable and Y motor cable from the main board. X motor cable connector Y motor cable connector CE LITE-UM-251-9370 6-64...
  • Page 83 6 DISASSEMBLY AND REASSEMBLY (10) Slide out the main board bracket to the right side. (11) Remove the four M3L6 binding head screws holding the main board upper bracket, and then detach the main board upper bracket. M3L6 binding head screws (12) Remove the M3L6 binding head screw holding the power switch, and then detach the power switch from the main board upper bracket.
  • Page 84 6 DISASSEMBLY AND REASSEMBLY (13) Disconnect the all cables from the main board. Encoder, L Encoder, R Y-flexible cable Fan, Center LED board, R LED board, L X motor Paper sensor Fan, Right Fan, Left Y motor (14) Remove the four M3L6 binding head screws holding the main board, and then detach the main board from the lower bracket.
  • Page 85 6 DISASSEMBLY AND REASSEMBLY How to reinstall the main board (1) Attach the main board to the lower bracket. (2) Connect the cables other than the X motor and Y motor cable to the main board. (3) Attach the upper bracket and the power switch. (4) Reattach the main board bracket to the frame carefully not to get the cables caught, and then tighten the two M3L6 binding head screws.

  • Page 86: Y-Flexible Cable

    6 DISASSEMBLY AND REASSEMBLY 6.2.29 Y-flexible Cable How to detach the Y-flexible cable (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the top cover (See subsection 6.1.3.). (4) Detach the carriage cover (See subsection 6.2.5.). (5) Detach the Y-flexible cable cover (See subsection 6.2.1.).
  • Page 87 6 DISASSEMBLY AND REASSEMBLY How to reinstall the Y-flexible cable (1) Reattach the Y-flexible cable in the reverse order in which it was detached. (2) Move the carriage to the left end. Fix the Y-flexible cable with double-sided tapes at a position where the left edge of the Y-flexible cable is within the range as shown in the picture below.
  • Page 88 6 DISASSEMBLY AND REASSEMBLY How to fold the Y-flexible cable 48 mm ± 1 mm 2 mm Not printed Printed Not printed Printed CE LITE-UM-251-9370 6-70...

  • Page 89: Drive Roller Shaft

    6 DISASSEMBLY AND REASSEMBLY 6.2.30 Drive Roller Shaft How to detach the drive roller shaft (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).
  • Page 90 6 DISASSEMBLY AND REASSEMBLY (22) Remove the two M2.6L10 self-tapping screws and spacers holding the left side of the media guide. M2.6L10 self-tapping screws (23) Remove the E-ring holding the drive roller shaft on the right side frame to detach the washer and the bearing.
  • Page 91 6 DISASSEMBLY AND REASSEMBLY (27) Remove the four M4L6 binding head screws holding the left side frame, and then detach the left side frame. M4L6 binding head screws (28) Pull the upper slide shaft to the left to detach from the tool carriage. (29) Detach the drive roller shaft from the left side.
  • Page 92 6 DISASSEMBLY AND REASSEMBLY How to reinstall the drive roller shaft CAUTION Be sure to work on a flat surface such as a level block when reattaching the side frame. (1) Attach the drive roller shaft to the right side frame, and then fix it with the bearing, washer, and E-ring.

  • Page 93: Pinch Roller Bush R

    6 DISASSEMBLY AND REASSEMBLY 6.2.31 Pinch Roller Bush R How to detach the pinch roller bush R (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the cam board R (See subsection 6.2.10.). (3) Detach the encoder disk R (See subsection 6.2.12.). (4) Detach the press cover R (See subsection 6.2.14.).

  • Page 94: Pinch Roller Bush L

    6 DISASSEMBLY AND REASSEMBLY 6.2.32 Pinch Roller Bush L How to detach the pinch roller bush L (1) Detach the left side cover (See subsection 6.1.2.). (2) Detach the cam board L (See subsection 6.2.11.). (3) Detach the encoder disk L (See subsection 6.2.13.). (4) Detach the press cover L (See subsection 6.2.15.).

  • Page 95: Pinch Roller

    6 DISASSEMBLY AND REASSEMBLY 6.2.33 Pinch Roller How to detach the pinch roller (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).
  • Page 96 6 DISASSEMBLY AND REASSEMBLY (23) Remove the two M2.6L10 self-tapping screws and spacers holding the left side of the media guide. M2.6L10 self-tapping screws (24) Remove the Y drive belt (See subsection 6.2.22.). (25) Remove the M3L6 TP head screw holding the upper slide shaft on the right side frame. (26) Remove the two M3L6 TP head screws holding the slide shafts on the left side of the frame.
  • Page 97 6 DISASSEMBLY AND REASSEMBLY (27) Remove the four M4L6 binding head screws holding the left side frame, and then detach the left side frame. M4L6 binding head screws (28) Pull the upper slide shaft to the left to detach from the tool carriage. (29) Detach the pinch roller from the pinch roller shaft.
  • Page 98 6 DISASSEMBLY AND REASSEMBLY How to disassemble the pinch roller (1) Twist the pinch roller and the pinch roller holder in the reverse direction, and then detach the pinch roller from the pinch roller holder. How to reassemble the pinch rollers (1) Insert the pinch roller to the pinch roller holder.
  • Page 99 6 DISASSEMBLY AND REASSEMBLY (2) Attach the pinch roller to the pinch roller shaft in the correct direction. Pinch roller, left Pinch roller, right (3) Insert the upper slide shaft to the carriage so that the D cut surface is on the left side, and then fix it with the M3L6 TP head screw to the right side frame.

  • Page 100: Carriage Assy

    6 DISASSEMBLY AND REASSEMBLY 6.2.34 Carriage Assy How to detach the carriage assy (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).
  • Page 101 6 DISASSEMBLY AND REASSEMBLY (17) Detach the pinch roller bush L (See subsection 6.2.32.). (18) Remove the two M2.6L10 self-tapping screws and spacers holding the left side of the media guide. M2.6L10 self-tapping screws (19) Remove the Y drive belt (See subsection 6.2.22.). (20) Remove the M3L6 TP head screw holding the upper slide shaft on the right side frame.
  • Page 102 6 DISASSEMBLY AND REASSEMBLY (22) Remove the four M4L6 binding head screws holding the left side frame, and then detach the left side frame. M4L6 binding head screws (23) Pull the upper slide shaft to the left to detach from the carriage assy. (24) Slide the carriage assy to the left to detach.
  • Page 103 6 DISASSEMBLY AND REASSEMBLY How to reattach the carriage assy CAUTION Be sure to work on a flat surface such as a level block when reattaching the side frame. (1) Reattach the carriage assy to the slide shaft. (2) Insert the upper slide shaft to the carriage so that the D cut surface is on the left side, and then fix it with the M3L6 TP head screw to the right side frame.

  • Page 104: Fan Motor

    6 DISASSEMBLY AND REASSEMBLY 6.2.35 Fan Motor How to detach the fan motor (1) Detach the right side cover (See subsection 6.1.1.). (2) Detach the left side cover (See subsection 6.1.2.). (3) Detach the cross cut base (See subsection 6.1.4.). (4) Detach the bottom cover (See subsection 6.1.5.).
  • Page 105 6 DISASSEMBLY AND REASSEMBLY (8) Disconnect the X motor cable from the main board. X motor cable connector Y motor cable connector (9) Detach the main board bracket from the frame. (10) Disconnect the cable from the main board. Fan, Center Fan, Left Fan, Right CE LITE-UM-251-9370...
  • Page 106 6 DISASSEMBLY AND REASSEMBLY (11) Remove the two M3L25 binding head screws, and then detach the fan motor. M3L25 binding head screws How to reinstall the fan motor (1) Reattach the fan motor in the reverse order in which it was detached. CE LITE-UM-251-9370 6-88...

  • Page 107: Roll Media Stocker

    6 DISASSEMBLY AND REASSEMBLY 6.2.36 Roll Media Stocker How to disassemble the roll media stocker (1) Remove the M4L16 coin screw holding the stocker bracket, and then detach the stocker bracket. M4L16 coin screw Stocker roller Stocker bracket M4L16 flat head screws hexagon nut Stocker roller...

  • Page 108: Adjustment

    (2) Set a paper to the device. (3) Connect the PC and the CE LITE-50 via the USB cable. (4) Double-click the adjustment tool ( CE LITE-50 ADJ. Tool ) to run. (5) Click “Get current ADJ. value” on the tool.
  • Page 109 The setting values are saved as a text file in the folder of the adjustment tool. (8) After replacing the main board, turn on the CE LITE-50 and connect it to the PC. (9) Set a paper to the device.
  • Page 110 (11) Click “Load .txt” and open the saved file. (12) The setting values are displayed on the adjustment tool. (13) Click “Set ADJ. Value” to write the setting values to CE LITE-50. (14) Close the adjustment tool and turn off the CE LITE-50.

  • Page 111: Selecting Language & Unit Of Length

    7 ADJUSTMENT Selecting Language & Unit of Length When you turn on the power of CE LITE-50 for the first time or reset it to the factory default, the settings for selecting the language and the unit of length are displayed.

  • Page 112: Upgrading The System Firmware

    (3) Execute SEND.EXE to send firmware to the plotter from the computer. Select the system firmware file from the SEND.EXE menu. Select CE LITE-50 from the output menu. (Select the type of file to all files when select the firmware file.) (4) Output the system firmware file to the CE6000.

  • Page 113: Service Mode

    Operation status can be tested by self diagnostic test with operating the sensors and switches following the instruction on the screen. Operation (1) Turn on the CE LITE-50. (2) Holding down the power button while the power is on. (3) Select "DIAGNOSTICS" on the TEST screen.
  • Page 114 8 SERVICE MODE • Media sensor test (Paper sensor) Put a paper on the paper sensor, and then remove it. Paper sensor • Home sensor test (Detector switch) Move the tool carriage slowly to the left end. • Tool up/down test (Width detection sensor) Push the "up"...

  • Page 115: Clear Setup Mode

    (2) Set a paper to the device. (3) Connect the PC and the CE LITE-50 via the USB cable. (4) Double-click the adjustment tool ( CE LITE-50 ADJ. Tool ) to run. (5) Click "Factory setting" on the tool. (6) Click " OK" when "Factory setting OK?" Is displayed.
  • Page 116 8 SERVICE MODE (7) Click "OK" when "Factory setting success" Is displayed. (8) Select the language when the CE LITE - 50 is restarted. (9) Select the unit of length. CE LITE-UM-251-9370...

  • Page 117: Self Test

    Print a self-test pattern to check the operation of the plotter. Operation (1) Turn on the CE LITE-50. (1) Set a paper larger than A3 size to the device. (2) Install the pen tool to the carriage and set the conditions.

  • Page 118: Width Sensor Adjustment

    Adjust the width sensor when the device can not detect the width or the tip of the media correctly. Operation (1) Turn on the CE LITE-50. (2) Holding down the power button while the power is on. (3) Select "ADJUST WIDTH SENSOR" on the TEST screen.

  • Page 119: Troubleshooting

    9 TROUBLESHOOTING TROUBLESHOOTING The Plotter Doesn't Operate Even When Turned On Symptom Verification Items Solution No..Check that the power cord is (1) Is the plotter being supplied with securely connected to the plotter’s power? AC line inlet. Yes ..Verify item (2). (2) Is the flexible cable of the LCD No ..Connect the flexible cable securely.

  • Page 120: Media Loading Operations

    9 TROUBLESHOOTING Media Loading Operations Symptom Verification Items Solution Yes ..Keep the paper sensor away from (1) Is the paper sensor exposed to strong light such as direct sunlight or the strong light? fluorescent lamp. No ..Verify item (2). Yes ..Disable Media width detection. For the details, please refer to the User’s (2) Is the transparent media loaded.? The media is dropped...

  • Page 121: Cutting Operations

    9 TROUBLESHOOTING Cutting Operations Symptom Verification Items Solution (1) Is there any paper dust or chip Remove the blade cap and clean it. on the tip of the cutter set? (2) Does the blade turn smoothly in The cut line is crooked. Replace the cutter set.

  • Page 122: Error Messages In Gp-Gl Command Mode

    9 TROUBLESHOOTING Error Messages in GP-GL Command Mode Error LCD Display Cause Solution Code The plotter received an Touch the “Confirm” button. unrecognizable command. Noise came in when the Configure to drive the plotter computer was turned on. from the menu of the software. E02001 The software configuration Reset the interface settings of...

  • Page 123: Error Messages In Hp-Gl Command Mode

    9 TROUBLESHOOTING Error Messages in HP-GL Command Mode Error LCD Display Cause Solution Code An unrecognizable instruction was executed. Execute a command that can be E03001 Execute a recognizable used. command. A command was executed with Execute the command with a E03002 the wrong number of parameters.

  • Page 124: Arms Error Messages

    9 TROUBLESHOOTING ARMS Error Messages Error LCD Display Cause Solution Code Tilt with AXIS ALIGNMENT is too E04001 Reload the media. large. Distance adjustment value E04002 Reset to smaller value. exceeds the setting range. E04003 Failed to adjust the sensor level. This media cannot be used. Distance adjustment value E04004 Reset to smaller value.
  • Page 125 9 TROUBLESHOOTING Check the media. Exceeded detection area while E04012 Make sure the print position of detecting the registration mark. the registration mark. Check the media. Exceeded detection area while E04013 Make sure the print position of detecting the registration mark. the registration mark.
  • Page 126 9 TROUBLESHOOTING Redo the sensor level adjustment. Change the color of the Registration mark was not E04024 registration mark. detected. Check the media. Make sure the print position of the registration mark. Redo the sensor level adjustment. Change the color of the Registration mark was not E04025 registration mark.

  • Page 127: Other Error Messages

    9 TROUBLESHOOTING Other Error Messages Error LCD Display Cause Solution Code E01001 The main board is defective. Replace the main board. E01002 The main board is defective. Replace the main board. E01003 The main board is defective. Replace the main board. E01004 The main board is defective.
  • Page 128 9 TROUBLESHOOTING E01012 The main board is defective. Replace the main board. E01013 The main board is defective. Replace the main board. The main board is defective. Replace the main board. E01014 The Motor is defective. Replace the motor. The main board is defective. Replace the main board.

  • Page 129: Parts List

    U621730123 Rear Guide U621730113 Front Guide U792000750 Bottom Cover U792000740 Side Cover, R Put the label on the back of the side U621732540 Label, Rating, CE LITE-50 cover R. U621730152 Panel, R 10 U621730161 Side Cover, L 11 U621730141 Panel, L...

  • Page 130: Main Frame

    10 PARTS LIST 10.2 Main Frame Part No. Part Name Q’ty Remarks Rank U621732100 Drive Roller Shaft U621732002 Slide Shaft U621731113 Support Roller Bracket U309011003 Roller B, 10SRF41Z Support Rollers U621730004 Cover In, L U621730014 Cover In, R U792000730 Media Guide U621731401 Media Guide Handle U621732630 Label, Lever position Put the label on the media guide handle.
  • Page 131 10 PARTS LIST CE LITE-UM-251-9370 10-3...

  • Page 132: Main Board

    10 PARTS LIST 10.3 Main Board Part No. Part Name Q’ty Remarks Rank U792000700 Main Board, CE-LITE U621730641 Power Switch CE LITE-UM-251-9370 10-4...

  • Page 133: Motor

    10 PARTS LIST 10.4 Motor Part No. Part Name Q’ty Remarks Rank U684507400 X Motor U684507410 Y Motor U621730431 Pulley, Y Drive Pulley P GEAR Z39 P16 U311010620 Roller B, MF106ZZMC3PS2S X and Y motor U621730441 Pulley, Y Idler Pulley U621663240 Spring, Y Belt Tension CE LITE-UM-251-9370 10-5...

  • Page 134: Press Unit

    10 PARTS LIST 10.5 Press Unit Part No. Part Name Q’ty Remarks Rank U621730241 Press Box Right and Left U621662081 Press Holder Right and Left U621730540 Spacer, Press Unit U621662160 Spring, Press Unit Right and Left U310010620 Bearing, MR106ZZ1 Right and Left U621730252 Cam Shaft, R U621730262 Cam Shaft, L U792000770 Cam Sensor Board...

  • Page 135: Tool Carriage

    10 PARTS LIST 10.6 Tool Carriage Part No. Part Name Q’ty Remarks Rank U792000820 Carriage Assy U621730631 Carriage Cover Put the label on the left side of the U621732531 Caution Label carriage cover. U792000760 Pen Board U792000800 Width Detection Board U684507451 Registration Mark Sensor U561630082 Detector Switch, JPS1220-0101 CE LITE-UM-251-9370...

  • Page 136: Roll Stocker

    10 PARTS LIST 10.7 Roll Stocker Part No. Part Name Q’ty Remarks Rank U621730202 Roll Stocker L U621730212 Roll Stocker R U621730272 Guide Support, Roll Stocker U621730282 Guide, Roll Stocker U621730291 Bracket, Roll Stocker Right and Left U350190502 Roller B, ER19H5W05 Right and Left U302200029 Thumb Screw, M4XL15 Right and Left...
  • Page 137 Rank U622658100 Label, GT Address For China only U792000830 USB Cable CBL0106ACL2-1.5M (with core) U621739201 Setup Manual, CE LITE-50-UM-8M1 U621739210 Safety Manual, ANCUTL-UM-AM1 U621719280 Blade Tip Cap Jig U621739590 Packing Box, CE LITE U621739510 Packing Material R U621739520 Packing Material L...
  • Page 138 Material and parts that are necessary to remove on the WEEE instruction and to do separation processing The following items need to remove from the CE LITE-50 series on the WEEE instruction. ♦ Printed circuit boards of mobile phones, and of other devices if the surface of the...
  • Page 139 11 TARGET COMPONENTS FOR WEEE INSTRUCTION (C) AC Power Cable ♦ Unused items (parts) The following items are not used in the CE LITE-50. • Capacitor including polychlorinated biphenyl (PCB) • Parts including mercury such as switches and lamps for backlight (for RoHs) •...
  • Page 140 11 TARGET COMPONENTS FOR WEEE INSTRUCTION ♦ How to remove the electrical component of the WEEE instruction • Removing the main board (1) Remove the three M3L6 binding head screws and the two M3L8 self-tapping screws holding the right side cover. M3L6 binding head screw M3L8 self-tapping screw M3L6 binding head screws...
  • Page 141 11 TARGET COMPONENTS FOR WEEE INSTRUCTION (3) Remove the M3L6 binding head screw to detach the shield. (4) Unlock the flexible cable connector of the LCD to disconnect the cable. M3L6 binding head screw Lock of the flexible cable connector (5) Detach the right side cover.
  • Page 142 11 TARGET COMPONENTS FOR WEEE INSTRUCTION (7) Remove the three M3L6 self-tapping screws holding the cross cut base, and then detach the cross cut base. M3L6 self-tapping screws (8) Remove the six M3L6 sems screws and the two M3L6 self-tapping screws holding the bottom cover, and then detach the bottom cover.
  • Page 143 11 TARGET COMPONENTS FOR WEEE INSTRUCTION M3L6 self-tapping screws M3L6 sems screws (9) Pull out the outside of the clamps from the frame. (10) Release the cables from the three cable clamps. Release the cables Pull out the clamps (11) Remove the two M3L6 binding head screws holding the main board bracket. M3L6 binding head screws CE LITE-UM-251-9370 11-6...
  • Page 144 11 TARGET COMPONENTS FOR WEEE INSTRUCTION (12) Disconnect the X motor cable from the main board. X motor cable connector (13) Slide out the main board to the right side. (14) Disconnect the all cables from the main board. Encoder, L Encoder, R Y-flexible cable Fan, Center...
  • Page 145 11 TARGET COMPONENTS FOR WEEE INSTRUCTION (15) Remove the four M3L6 binding head screws holding the main board upper bracket, and then detach the main board upper bracket. M3L6 binding head screws (16) Remove the M3L6 binding head screw holding the power switch, and then detach the power switch from the main board upper bracket.
  • Page 146 11 TARGET COMPONENTS FOR WEEE INSTRUCTION (17) Remove the four M3L6 binding head screws holding the main board, and then detach the main board from the lower bracket. M3L6 binding head screws CE LITE-UM-251-9370 11-9...
