NETWORK REQUIREMENTS

9 NETWORK
REQUIREMENTS
9.1

Introduction

General Information
All ExacTrac workstations shall be connected to the hospital network with a standard 100 Mb/s
LAN connection. Please supply a network wall jack close to the computer cabinet. Brainlab
provides a 4 m long network cable.

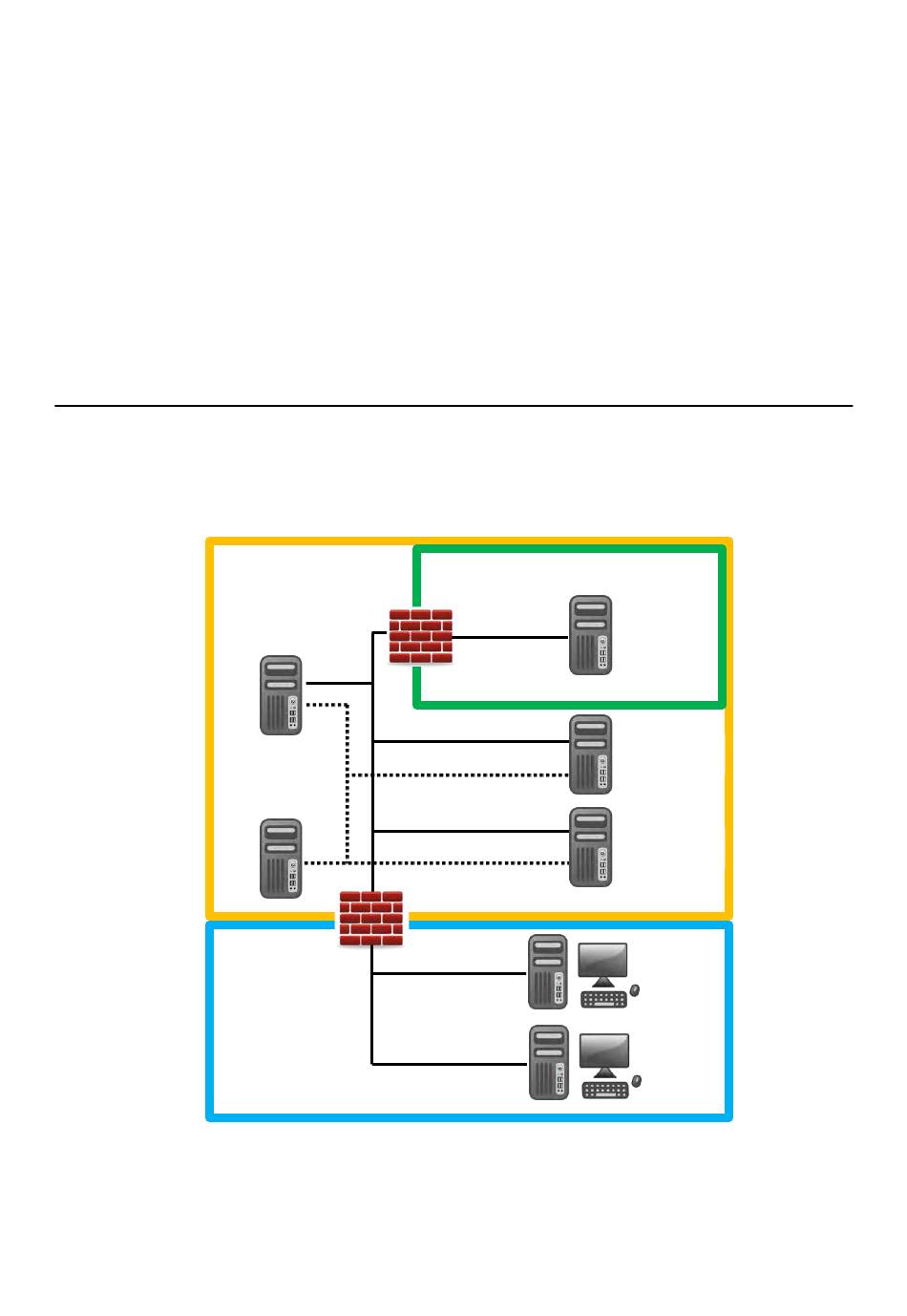

The following image shows a typical network setup for ExacTrac:
Hospital Network
Internet
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x
ExacTrac
Treatment
Workstation
ExacTrac
Prep & Review
Workstation
LINAC Network
Varian /ADI
DICOM Data
e.g., CBCT
Patient Data
Localized
Fusion
Approval
Remote
Access
Figure 41
LINAC
Hospital
R&V System
Planning
System
PC with
VNC
I-Help
Brainlab
Support
89
