APPENDIX
17" Floor Box Horizontal Position

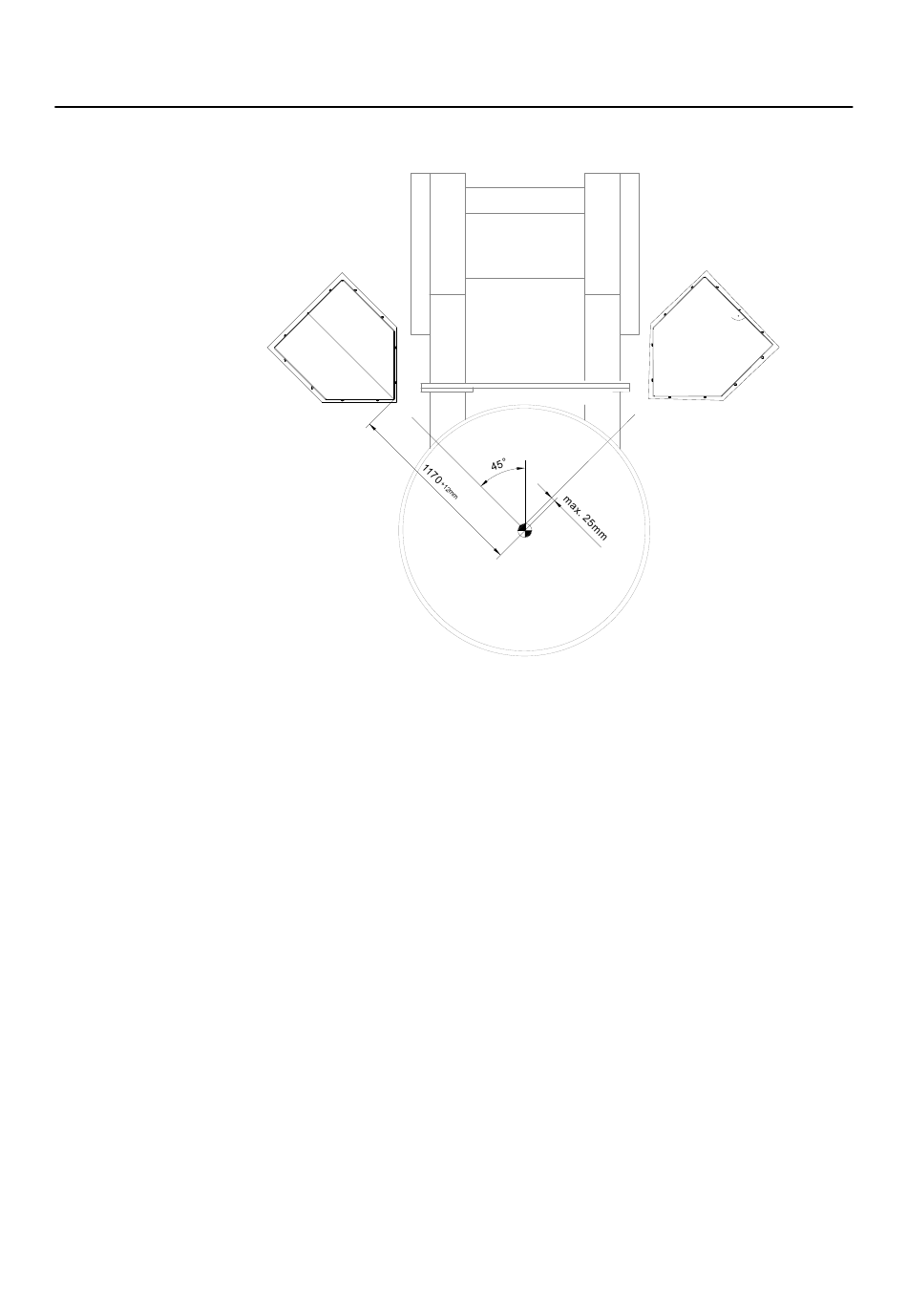

The following image shows a top view of the 17" floor box position relative to the isocenter:
Worst case scenario:
Due to an incorrect recess set up, the floor box has to be rotated within the recess into a correct
position, which can be very limited. The maximal deviation of the line "floor box tip – midpoint rear
wall of box" at the isocenter is 25 mm. The only (and determining) measurement is the exact
distance between the isocenter and the floor box tip at 45°.
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x
Ideal
recess position
17" Floor Box
Linac Baseframe
Isocenter
Figure 52
Worst case
recess position
17" Floor Box
