ExacTrac Warning Lights

8.4 ExacTrac Warning Lights
The ExacTrac Warning Light Signal
The ExacTrac warning lights warn the user with flashing light that X-ray exposure is enabled by
the ExacTracsoftware in specific steps of the positioning workflow (e.g., when X-ray exposure is
possible). Flashing warning lights indicate that X-rays can be emitted when you press the trigger
or exposure button on ExacTrac's X-ray console.
Responsibilites
The customer is responsible for:
• Verifying if the X-ray warning light is compliant to local safety regulations prior to installation.
• Deciding if the warning lights shall be installed or not and where they shall be located.
• Installing the X-ray warning light cables and boxes.
Brainlab is responsible for connecting the warning lights to the ExacTrac system.
Alternatives
You can choose from the following alternatives:
• Alternative A: Use the ExacTrac warning lights (contained in the pre-installation shipment).
• Alternative B: Provide your own warning light installation for ExacTrac.
It is possible to combine alternative A + alternative B.
Alternative A: ExacTrac Warning Light
Two units of ExacTrac warning lights are included in the pre-installation kit.
Component
Dimensions
Weight
Safety Factor
Bolts
86
Description
135 mm x 170 mm x 100 mm (width x height x depth).
Approximately 0.7 kg (fully equipped).
According to local regulations.
Number of screws and plastic wall anchors for rigid walls: 4 (each).
Fixation parts delivered with the warning lights.

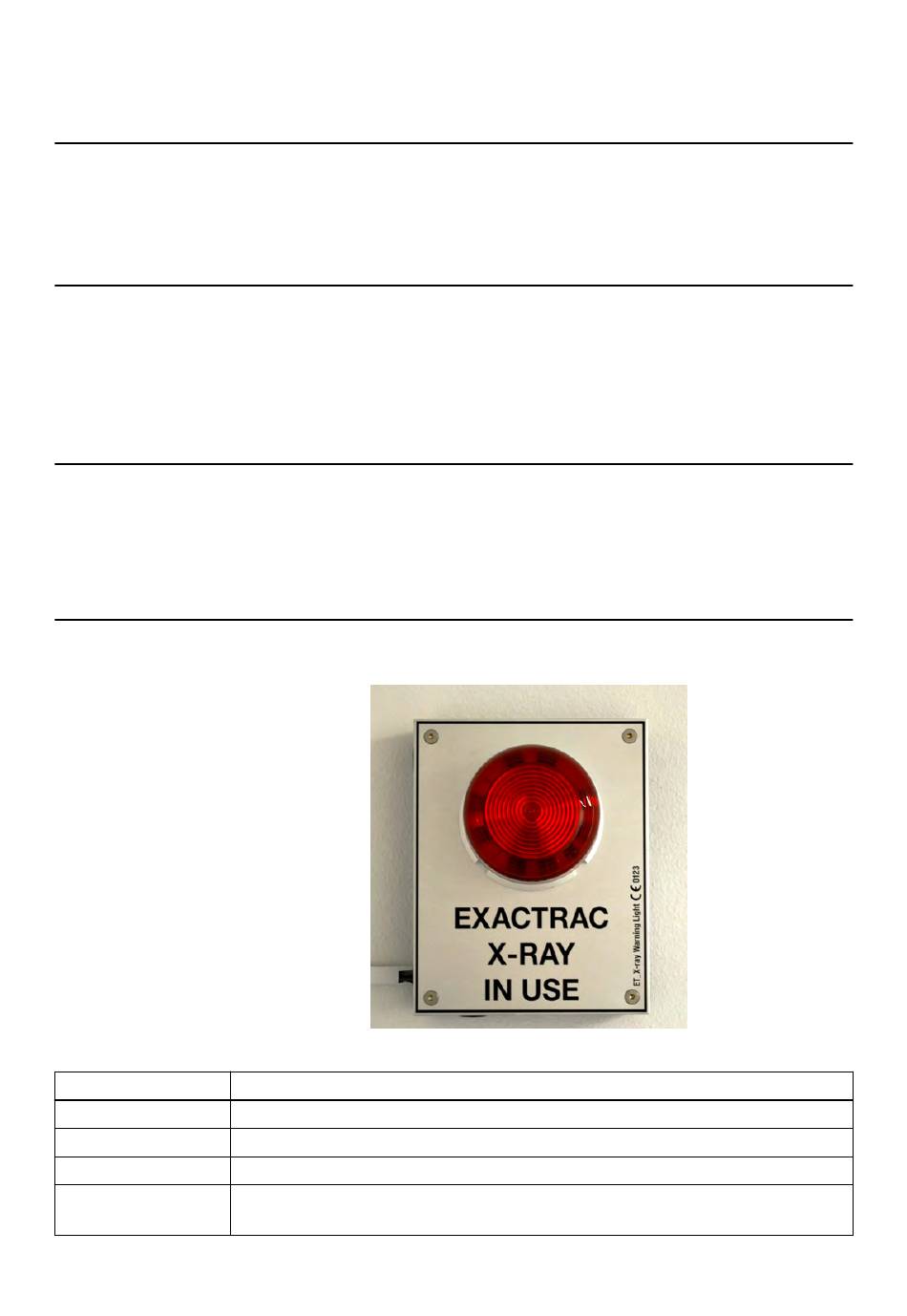

Figure 39
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x
