Treatment Room
3.1.2

Treatment Room Overview

Sample Set-Up
All major ExacTrac components and positions within the bunker have a dedicated numbered label
for further reference.

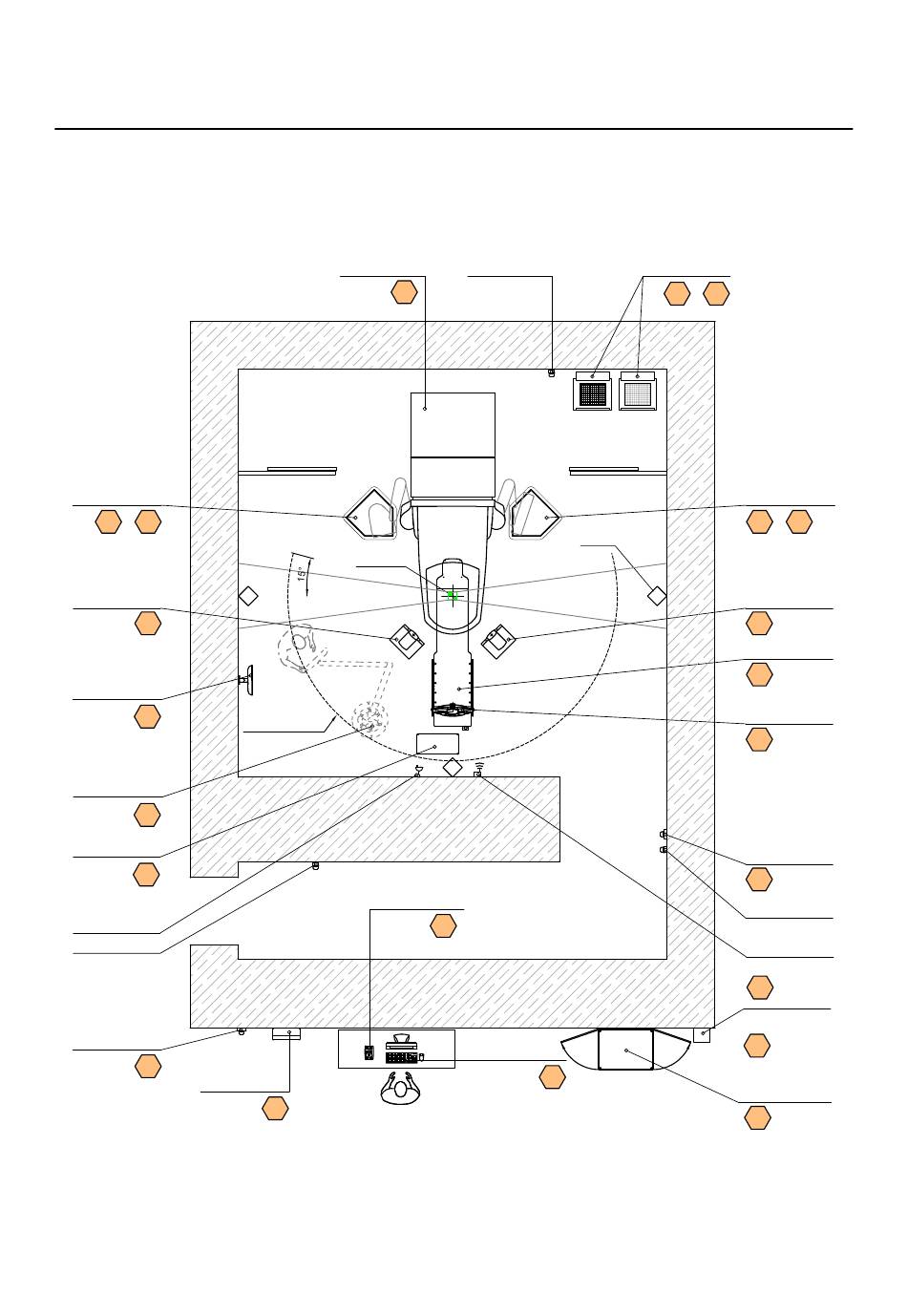

The following image shows an overview of the main system components in a treatment room
(diagram not meant to scale):
Floor Box with
X-Ray Tube
(left side)
2.1a 2.2a
Flat Panel
Detector
(left side)
2.3b
Wall Mounted
Touch Screen
Monitor
(standard)
1.2
Ceiling Mounted
Touch Screen
Monitor
(optional)
1.2
In-Room
Distribution Box
1.3
Power Plug
(for Robotics
Charger)
Emergency Off
X-Ray
Warning Light
2.5a
Control Room
Distribution Box
16
Stand & Gantry
0.0
Isocenter
L
max. radius 2900
EXACT couchtop
with foot extension
ExacTrac Console
1.5
Control-Room Workplace
Emergency Off
Lasers
Primary Beam
L
2.4
Control-Room
Workspace
1.6
Figure 1
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x
X-Ray
Dual Generator
2.0a 2.0b
Floor Box with
X-Ray Tube
(right side)
2.1b 2.2b
Flat Panel
Detector
L
(right side)
2.3a
Treatment Couch
0.1
IR and Video
Camera System
1.1
X-Ray
Warning Light
2.5b
Emergency Off
External
Bluetooth Module
3.2
Network Plug
(provided by
Hospital)
4.0
Computer Cabinet
1.0
