SITE SPECIFICATIONS
Component
Wall fixation of rear panel
Location
Do not place the cabinets in the primary beam of the linac.
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x
Description

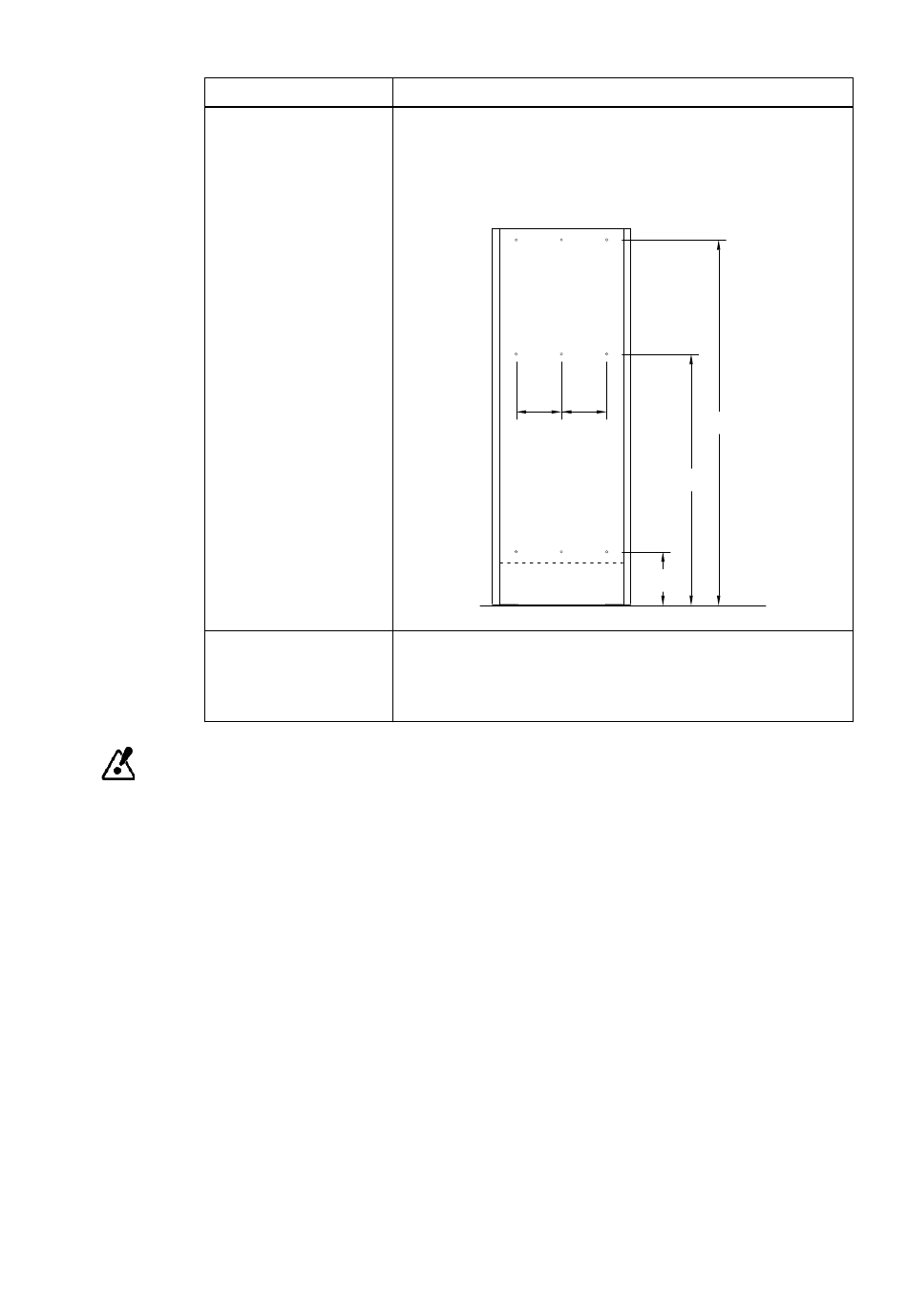

Fix the rear panel of each X-ray generator cabinet to the wall ac-
cording to the drilling pattern. Each rear panel weighs a maximum
of 25 kg, depending on the configuration.
Use anchors according to wall conditions and local regulations (not
provided by Brainlab).
180mm 180mm
When selecting the distance between the two cabinets, consider the
length of the cable connecting the two cabinets:
• Standard: 5 m
• Optional: 20 m
1454mm
1000mm
214mm
