CEILING AND WALL MOUNTS
Requirements for Custom-Made Ceiling Mount
If it is impossible to install the ceiling mount at the required position, you can provide an interface
plate and a custom-made ceiling mount according to the following requirements:
You are responsible for adhering to safety factors, local regulations and mounting the
custom made interface plate and custom-made ceiling mount.
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x
170mm
Custom made ceiling plate
~220mm
Ceiling
Custom made ceiling plate

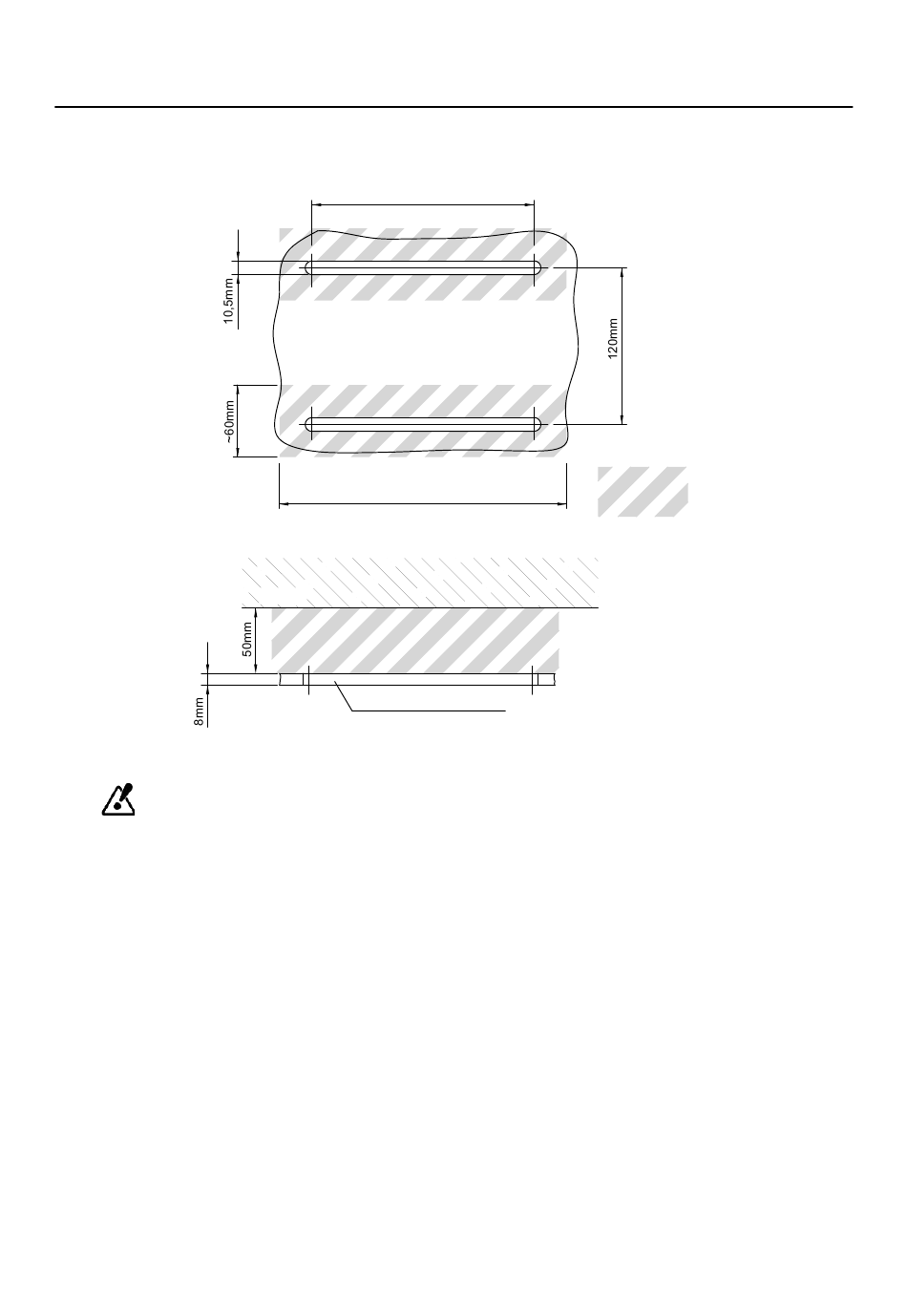

Figure 25
= space for mounting screws-
must be easy reachable
