FLOOR BOXES
4.1.3

Installation of 12" X-Ray Floor Boxes

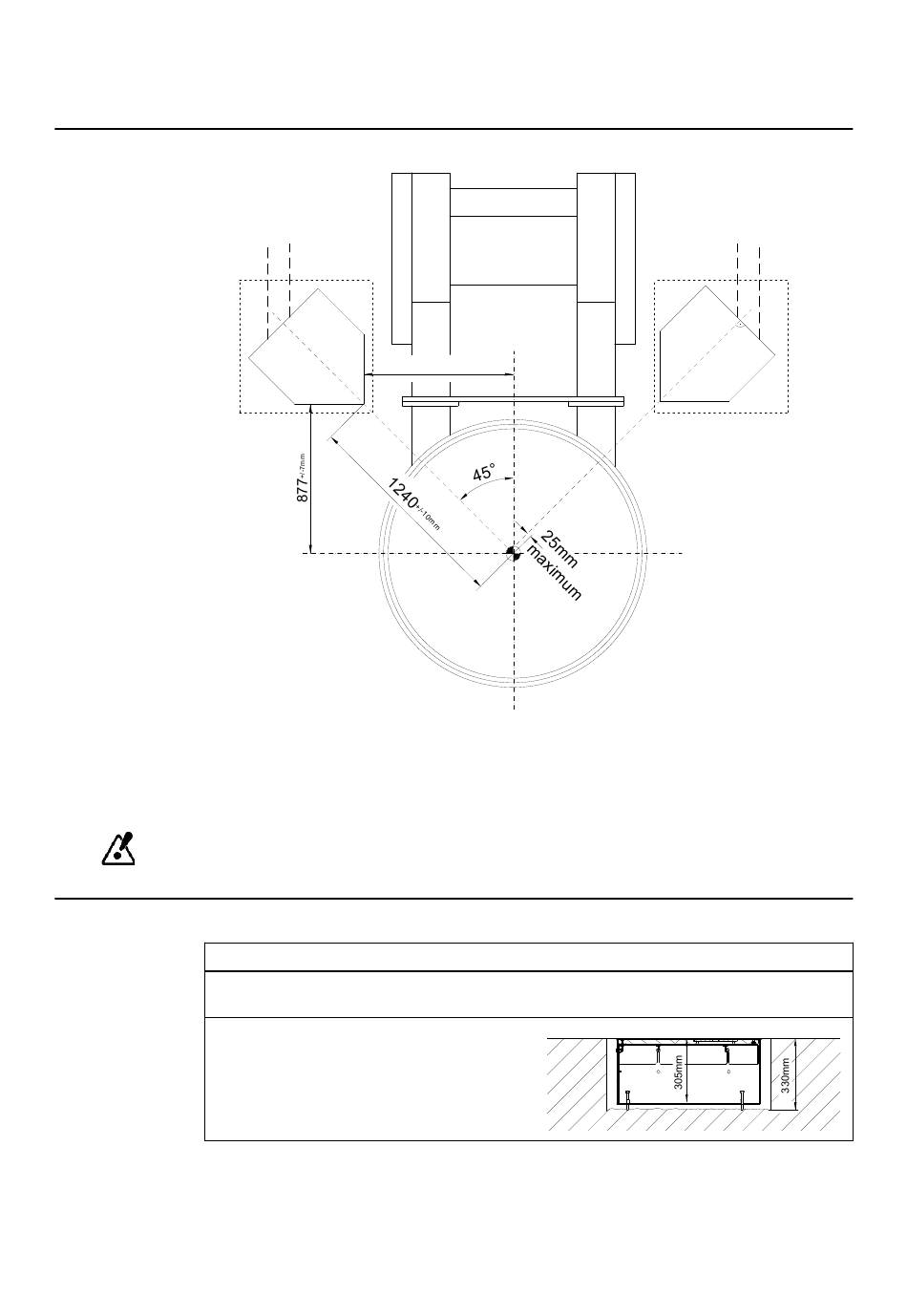

Installation Top View
NOTE: Worst case position: Due to an incorrect recess set up, the floor box must be rotated within
the recess to the correct position. Rotation within the recess is very limited. The maximal deviation
of the line "floor box tip to midpoint rear wall of box" at the isocenter is 25 mm.
The determining measurement is the exact distance between isocenter and floor box tip at
45°.
Installation Steps
Steps
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x
Ideal position for
12" Floor Box
Ensure that all the openings are sealed (taped) before pouring concrete. Concrete
1
should not seep into the boxes.
2 Place the floor boxes into the recesses.
Linac
Baseframe
877
+/-7mm
Figure 13
finished floor
Worst Case position for
12" Floor Box
