Ceiling Mount Installation
5.2.2

How to Mount the Ceiling Interface Plate

Standard Installation

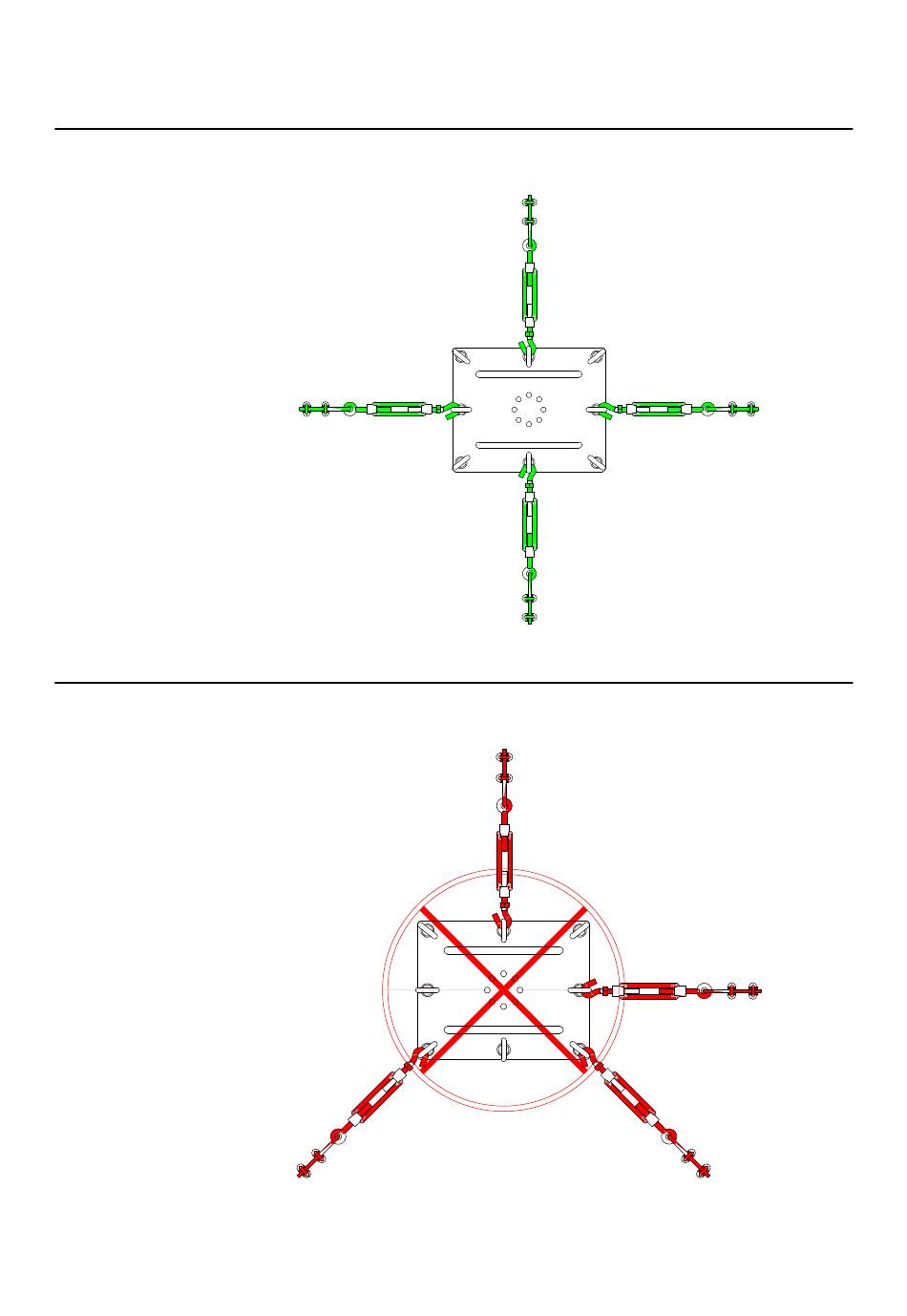

The following image shows correct rope fixation of the upper interface plate to the ceiling mount:
Incorrect Rope Fixation to the Upper Interface Plate
The following image shows incorrect rope fixation of the upper interface plate to the ceiling mount:
52
Figure 21
Figure 22
