CEILING AND WALL MOUNTS
Ceiling Bracket Positioning

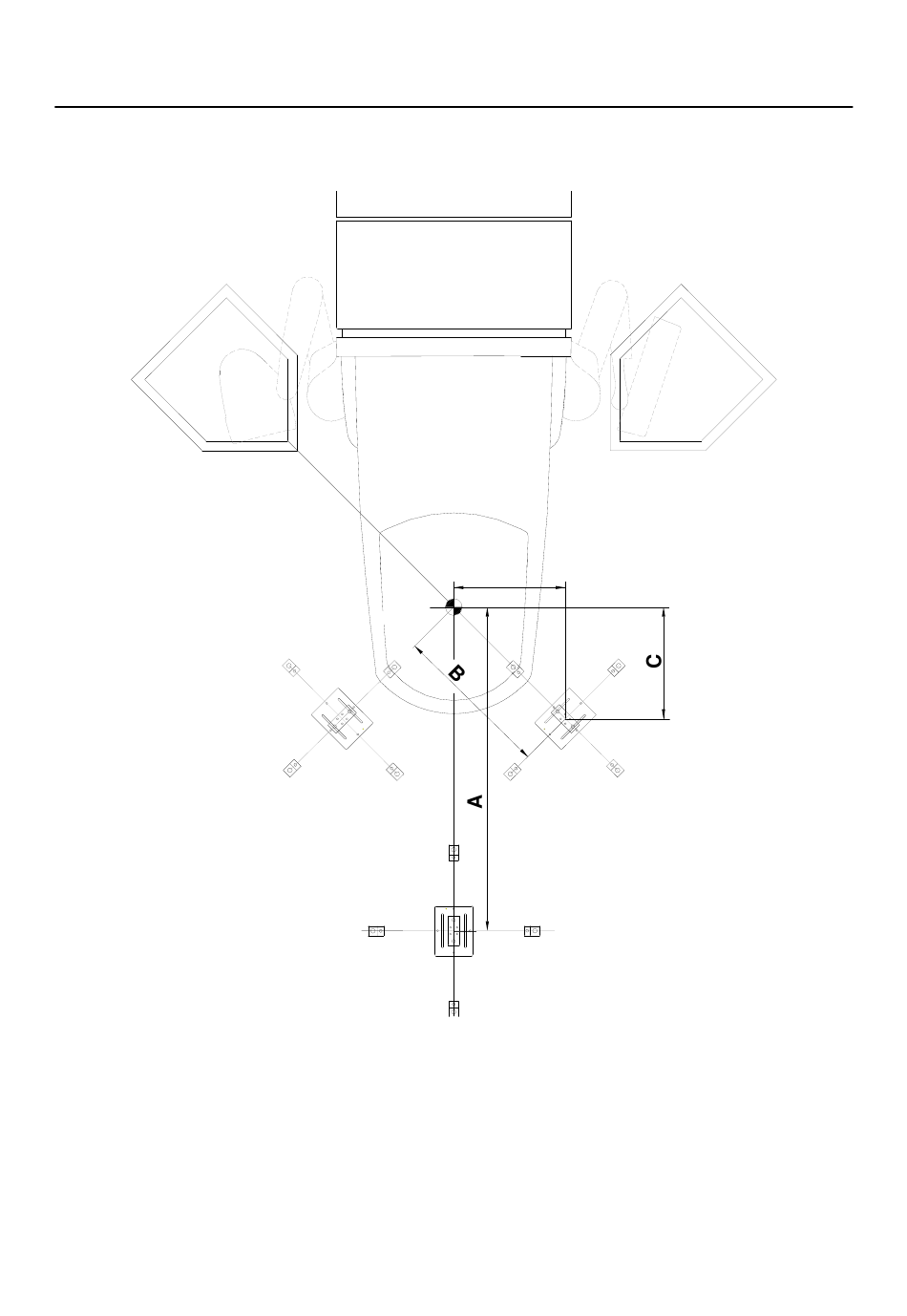

The following image shows a top view of how ceiling brackets should be positioned for camera
and flat panel suspension:
X-Ray Tube
Floor Box
• A = n/a
• B = 850 mm
• C = 600 mm
NOTE:
• All measurements are taken from the isocenter.
• Define a mounting spot on the floor first.
• Use a plumb bob or laser pointer to project the dimensions to the concrete ceiling.
• Varian defines the distance between the isocenter and the Varian camera mount.
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x
Isocenter
Camera
Ceiling
Brackets
C
Flat Panel
Ceiling
Brackets
Figure 20
