FLOOR BOXES
4.2.3

Recommended Position of Above-Ground Floor Boxes

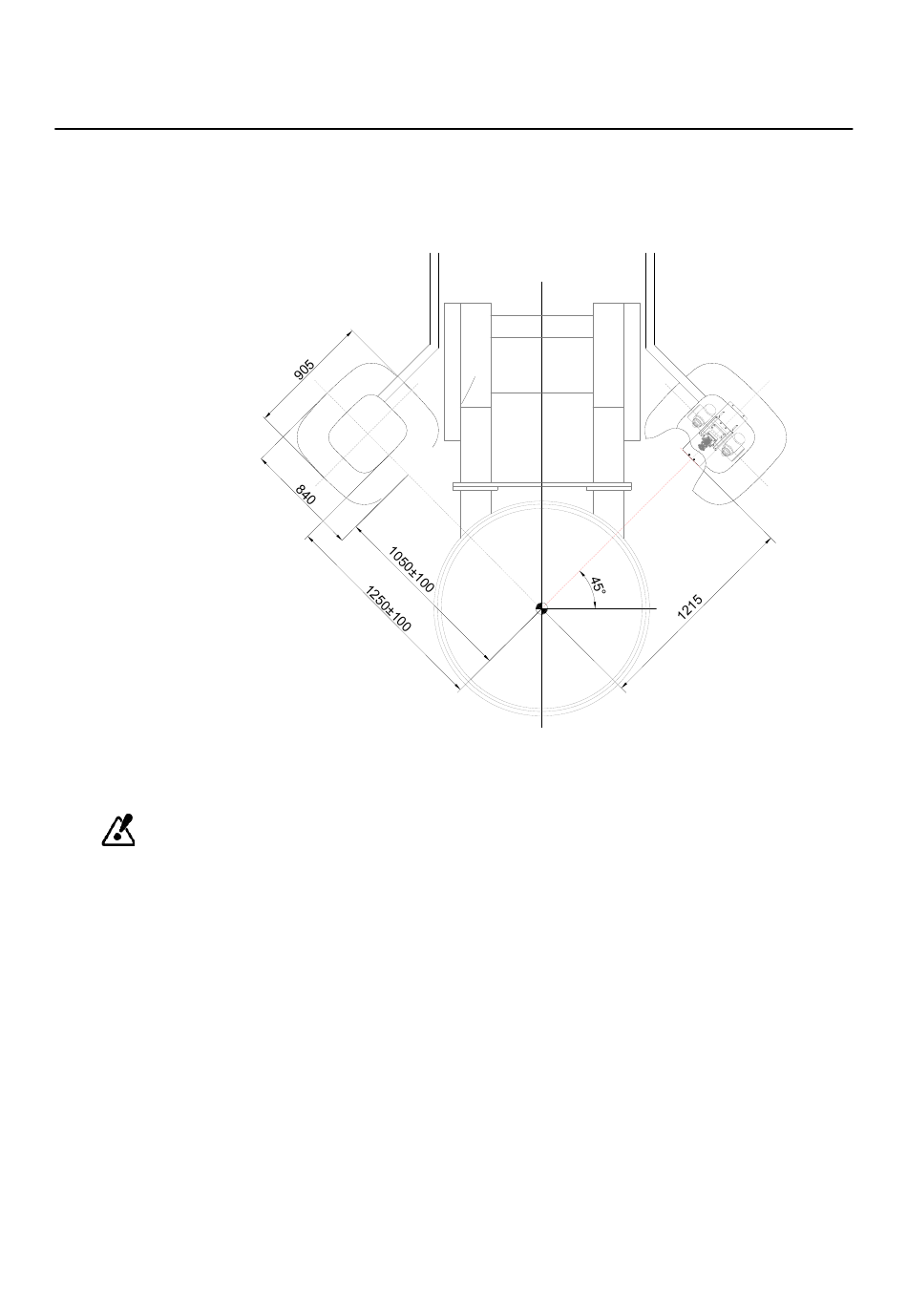

Recommended Position Relative to the Isocenter
• Mark the 45° lines and the distance of the leading edge of the tube holder (1215 mm) on the
floor for both above ground floor boxes. These markings will be used during installation.
• Aluminum raceways (cable conduits) are available in multiple 1.5 m pieces. Please contact
Brainlab if you require a total length of 9, 12 or 15m of raceway.
*The raceways will be delivered and installed by Brainlab.
All dimensions for positioning floor boxes are based on isocenter height of 1295 ± 20 mm
(finished floor line – isocenter). The exact value depends on the linac Type. Please refer to
the respective documentation. If the vertical isocenter position is not within the tolerance
range, please contact Brainlab.
Site Planning Manual Rev. 1.0 ExacTrac Ver. 6.x
Cable conduit*
65x30mm
(to X-Ray
Generator)
Figure 17
Cable conduit*
65x30mm
(to X-Ray
Generator)
*Aluminium raceway
delivered and installed
by Brainlab
45
