Chapter 2

Installation

WARNING:
CAUTION:

Cutting Track

DataTrack and DataTrack Backbone come in standard lengths of 4 ft, 8 ft, and 12 ft (121 cm, 243 cm,
and 365 cm). You can cut both to custom length on site. In order to ensure proper performance, use
cut pieces at the end of a run with no feeds or couplers attached to the cut end. In cases where you
must use a cut piece of DataTrack or DataTrack Backbone with a coupler or feed accessory, please note
the following:
• Cut DataTrack and DataTrack Backbone separately.
• Remove the end cap from DataTrack before cutting, and then reinstall the end cap after cutting.
• ETC recommends using a power miter saw with
appropriate metal blade to cut the track.
• Make cuts square and perpendicular to the DataTrack or
DataTrack Backbone.
• Make cuts to DataTrack from the open side towards the
top.
• Be careful to prevent the DMX wire from being dislodged
from the track and/or deformed while cutting the track.
Test to confirm that the cut edge will properly fit into feed
and splice pieces of the track before proceeding with
installation.
• Do not cut on the labeled end of a piece of DataTrack.
• The minimum distance that the bus bar can be cut back
from the edge of the track profile is 0.08 in (2 mm). The bus bar does not have to be moved out
of the track profile.
• Use a file to remove burrs after cutting, and clean any metal shavings before installing.
Note:
Installation
RISK OF ELECTRIC SHOCK! Cover the ends of DataTrack and DataTrack
Backbone with end covers or protective caps.
Before installing or using the DataTrack or DataTrack Backbone system, read
and understand the following information:
• Only use electrical fittings identified for use with the system.
• DataTrack and DataTrack Backbone are to be installed by qualified
personnel only.
• It is the responsibility of the installer to ensure the electrical, mechanical
and thermal compatibility of the track system and the fittings.
• Materials used for ceiling mounting should conform to relevant building
regulations.
• DataTrack and DataTrack Backbone do not support the use of power supply
cords or convenience receptacle adapters.
• The DataTrack or DataTrack Backbone system is to be supplied by up to two
branch circuits. Track does not support mounting by electrical cables.
ETC is not responsible for damage caused by the installer or due to modification of
the system by the installer.

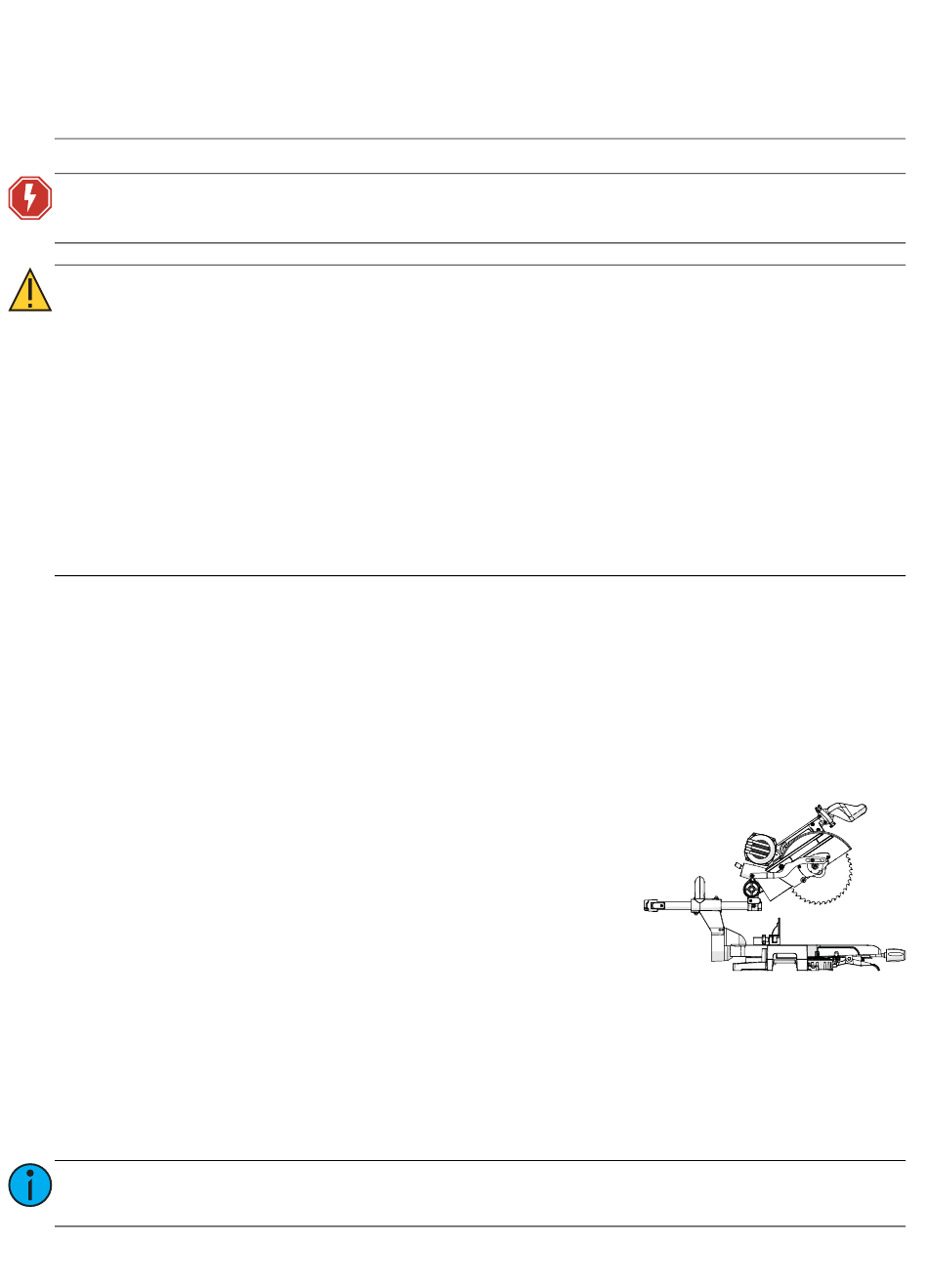

Figure 1: Power miter saw
for cutting track
