ETC DataTrack Planning And Installation Manual page 57

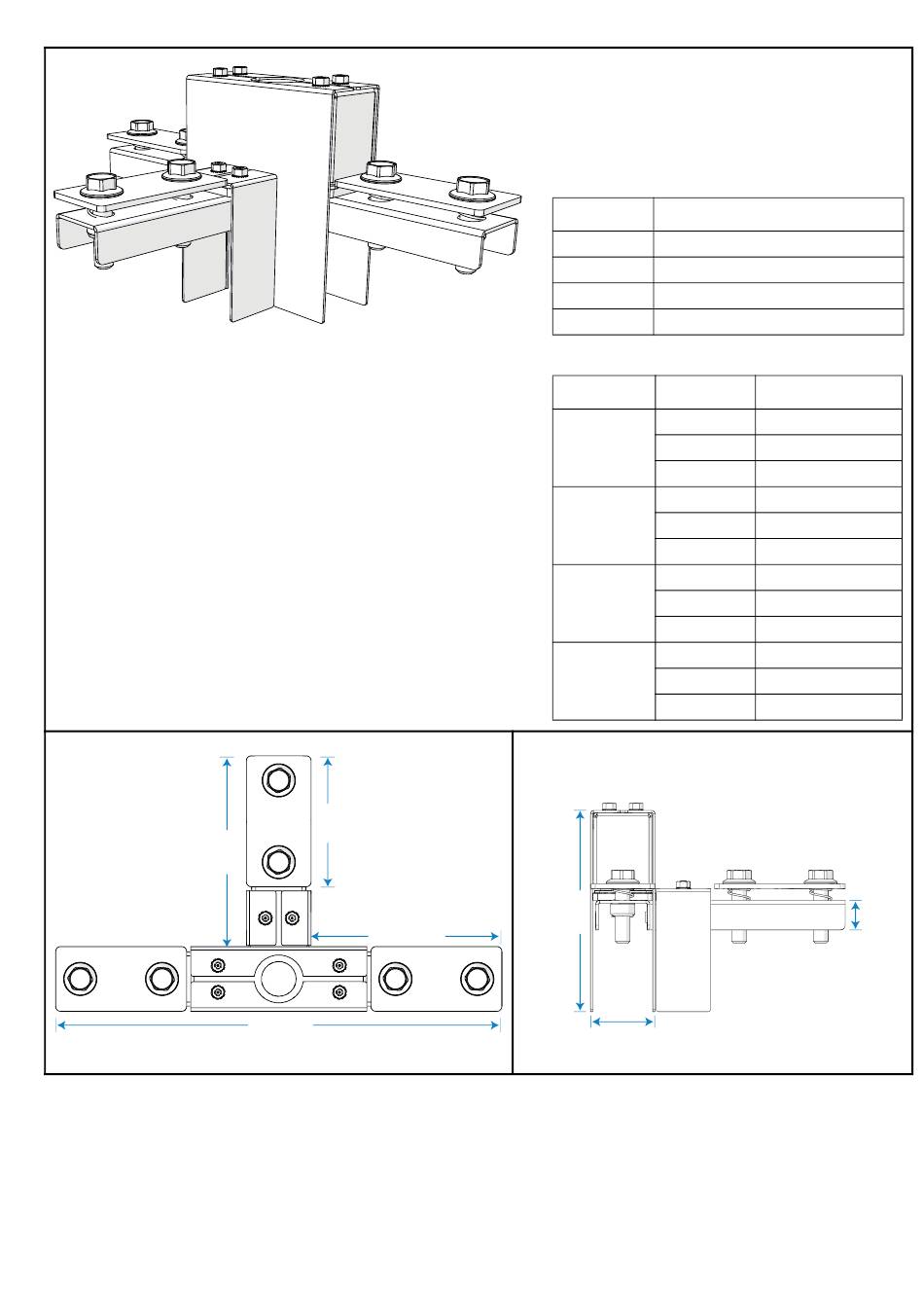

T-coupler Housing with Pull Box
5.05 in
128.2 mm
Parts and Accessories
3.46 in
88 mm
5.05 in
128.2 mm
11.81 in
300 mm
• Housing for T-coupler (see
page 35
)
• Includes pull box, which facilitates wiring
and allows space for a service loop
DataTrack Backbone
Color
Black DTB-TF-BLK
White DTB-TF-WHT
Silver DTB-TF-SLV
Custom DTB-TF-CST
Related Accessories: DataTrack T-coupler
Ground Color
Black
Inside
White
Right
Silver
Black
Inside
White
Left
Silver
Black
Outside
White
Right
Silver
Black
Outside
White
Left
Silver
5.46 in
138.8 mm
1.71 in
43.5 mm
T-coupler
on
Model Number
Model Number
EDTRTC-GIR
EDTRTC-GIR-1
EDTRTC-GIR-5
EDTRTC-GIL
EDTRTC-GIL-1
EDTRTC-GIL-5
EDTRTC-GOR
EDTRTC-GOR-1
EDTRTC-GOR-5
EDTRTC-GOL
EDTRTC-GOL-1
EDTRTC-GOL-5
.79 in
20 mm
