Installation
P o w e r a n d D a t a c a b l i n g r e q u i r e m e n t s
The Source Four Revolution fixture operates on AC power, 100-240VAC/50-60Hz, and
consumes a maximum of 900 watts. You may use a circuit powered through an SCR
dimmer, as long as the dimmer is set to unregulated non-dim (switched) operation.
The Source Four Revolution operates on DMX control signal. The unit is supplied with a
5-pin XLR DMX input connector and a 5-pin DMX Thru connector. DMX cables should be
acceptable for DMX data transmission (not microphone cable) and should follow the
standard pinout. The optional secondary data pair is not used by the Source Four
Revolution fixture. On pre-2007 fixtures, termination is required after the last fixture on a
DMX data line. Revolutions built in 2007 or later are equipped with self-terminating
connectors.
4

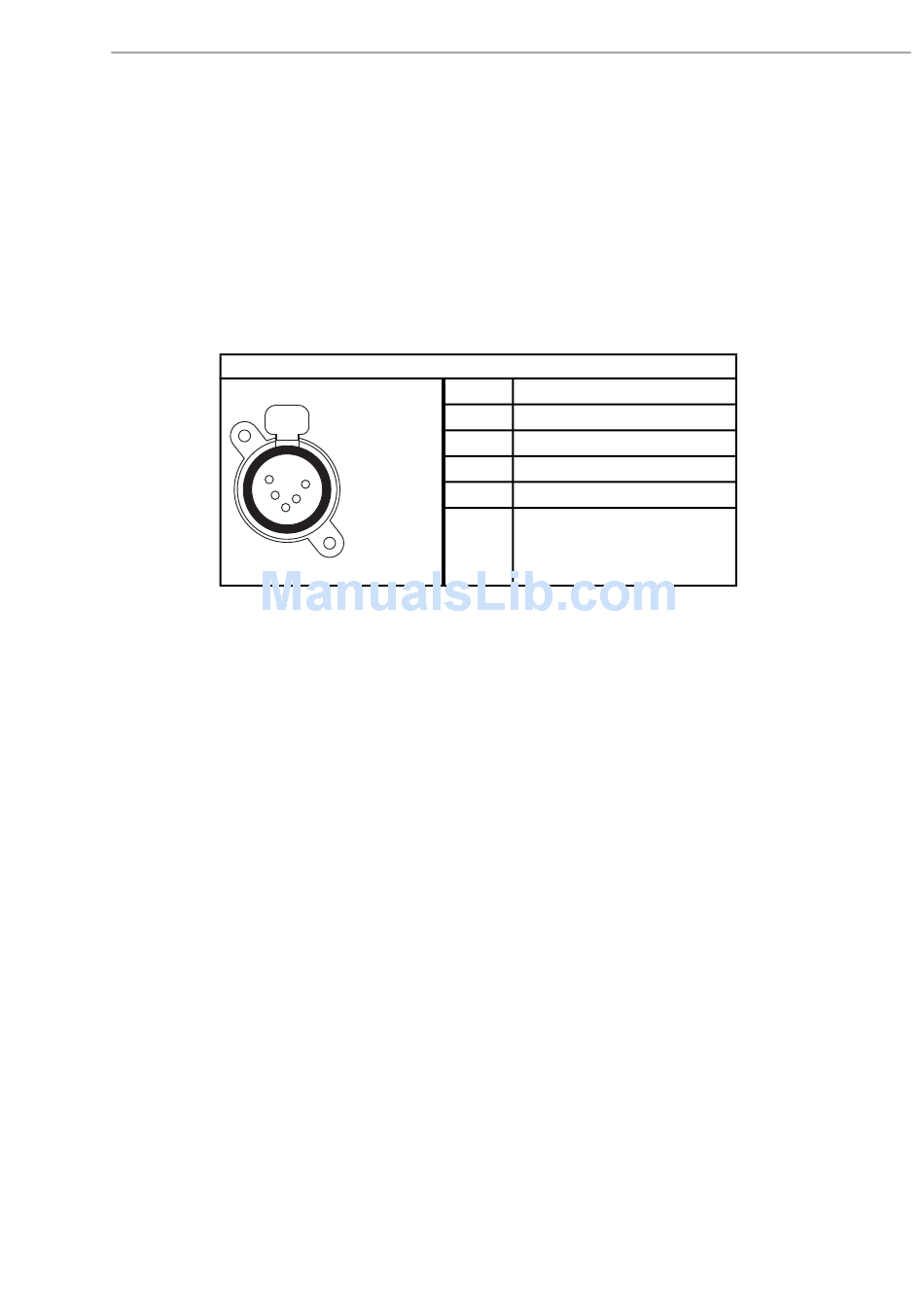

DMX512 pinout for five-pin XLR female
Push
5
1
4
2
3
1
Common (Shield)
2
Data –
3
Data +
4
not connected
5
not connected
