ETC DataTrack Planning And Installation Manual page 11

L-coupler
ground inside
T-coupler
ground
inside, left
L-coupler
ground inside
Note:
Planning
T-coupler
ground inside, right
Ground Feed Path
T-coupler
ground inside, right

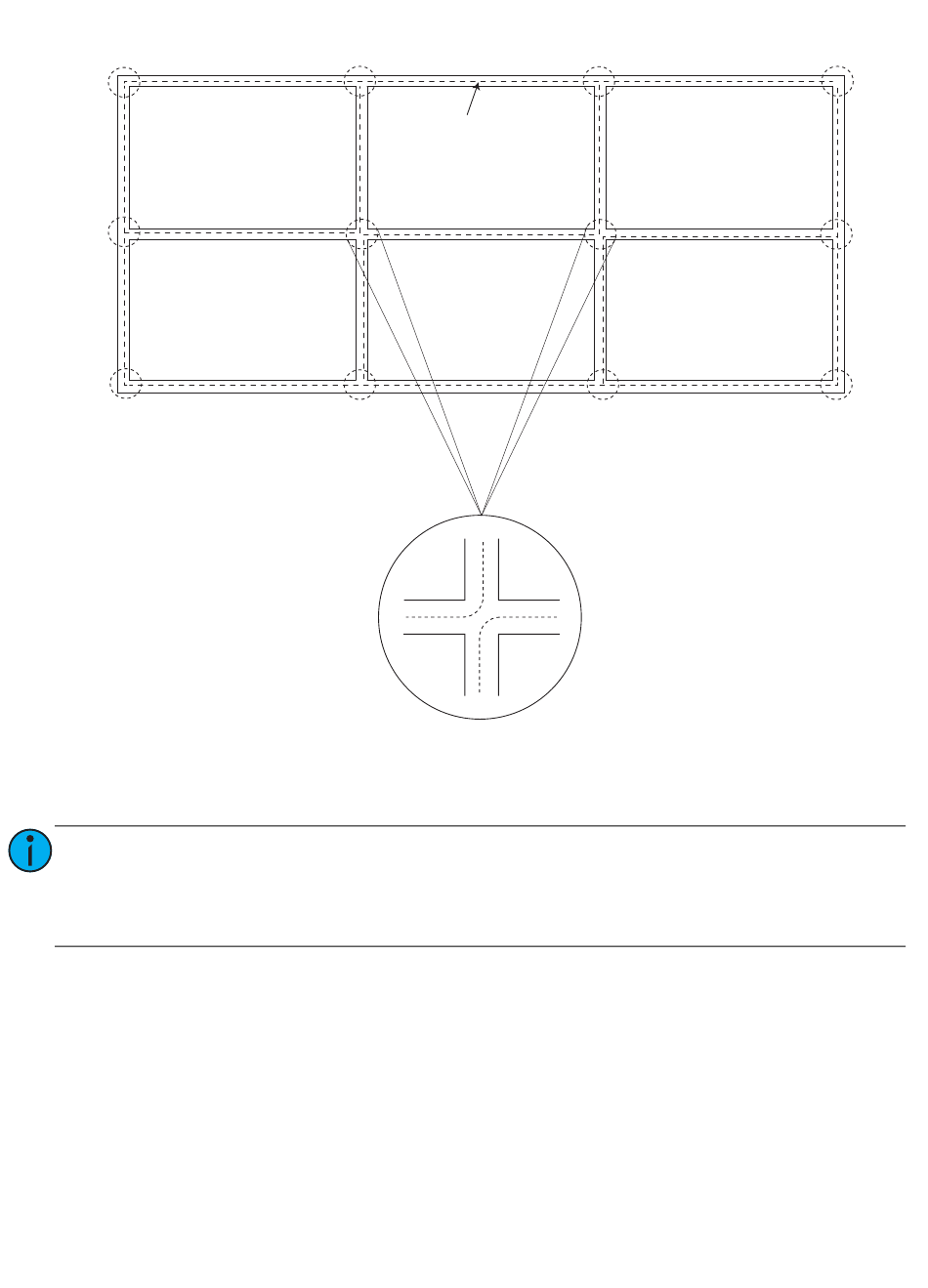

Figure 4: Complex ground path system
X-couplers must be properly aligned. If the X-couplers are rotated 90°, the ground
connectors will no longer align with the ground connectors of the T-couplers.
Similarly, if the T-couplers have the ground connectors on the left side of the T
instead of the right (as shown), they will not align with the connectors in the
X-couplers.
T-coupler
ground inside, right
T-coupler
ground inside, right
X-coupler
L-coupler
ground inside
T-coupler
ground
inside, left
L-coupler
ground inside
7
