Fixture Hanger for Emergency Lighting
Parts and Accessories
2.18 in
55.4 mm
6.55 in
166.3 mm

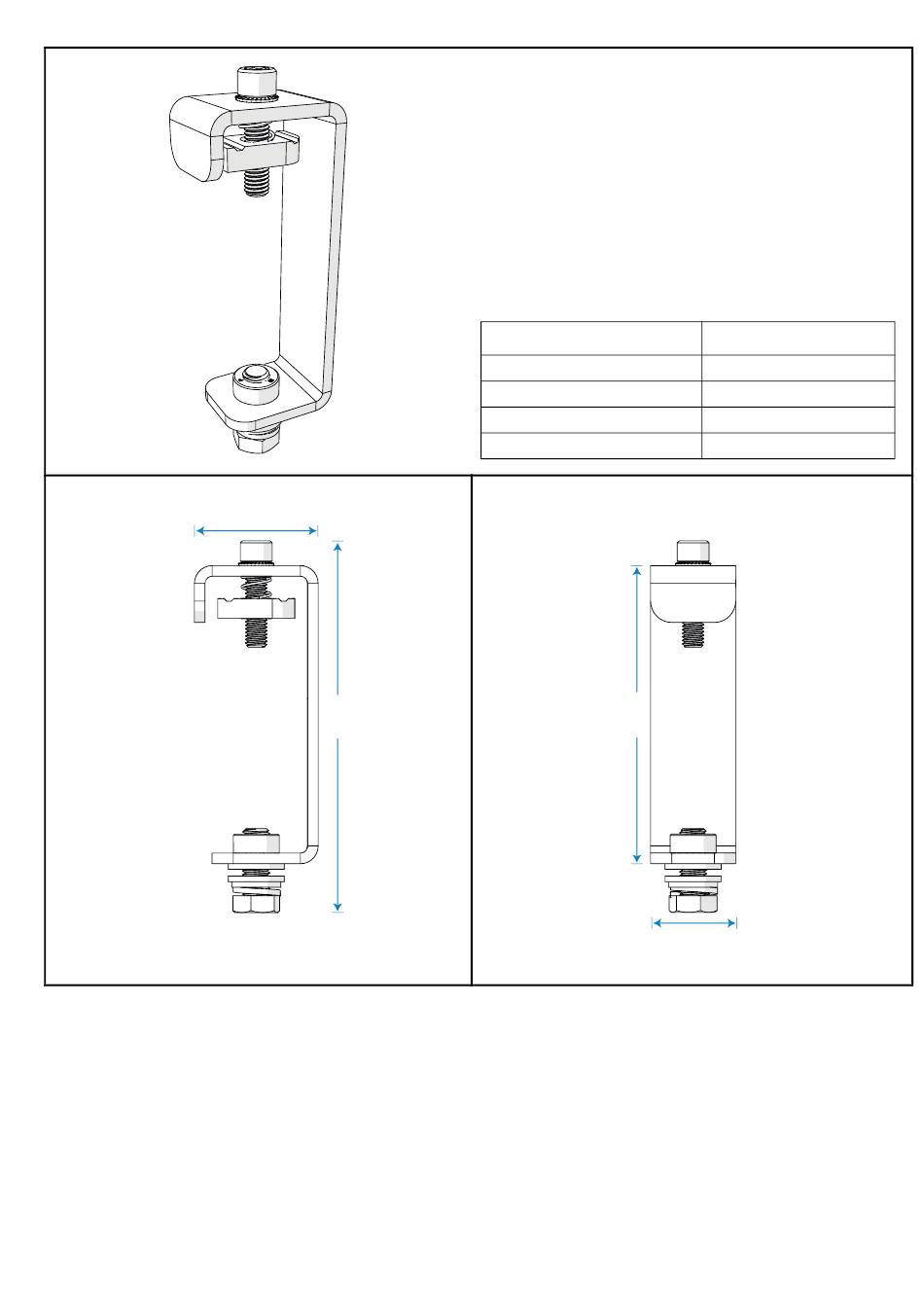

• Fixture hanger for mounting fixtures without track
adapters for use in emergency lighting to DataTrack
Backbone
• Uses a tool-operated bolt to secure hanger to
DataTrack Backbone (8 mm Allen wrench required
for installation)
• Combination of steel and nylon washers provides
both the secure mounting of the fixture yoke to the
hanger and the ability to hand-focus the fixture
DataTrack Backbone
Color
Black
White
Silver
Custom
5.25 in
133.4 mm
Model Number
DTB-FHEM-BLK
DTB-FHEM-WHT
DTB-FHEM-SLV
DTB-FHEM-CST
1.5 in
38.1 mm
