Installing End Feeds

Note:
If you are using DataTrack Backbone, see the installation
instructions provided with the DataTrack Backbone end
feed housing to install the housing on the end feed. See
End Feed Housing
1: Prepare the end feeds (both the power end feed and
the DMX end feed).
For top feed:
a: Remove the cover screw.
b: Remove the cover.
c: Remove the plug.
For end feed:
a: Remove the cover screw.
b: Remove the cover.
c: Remove the plug.
d: Install the wire guide to the end feed connector.
16
When installing end feeds, be aware that
DMX and power cannot be wired into the
same end feed. Install separate end feeds
for DMX and power.
on page 48 .
c
b

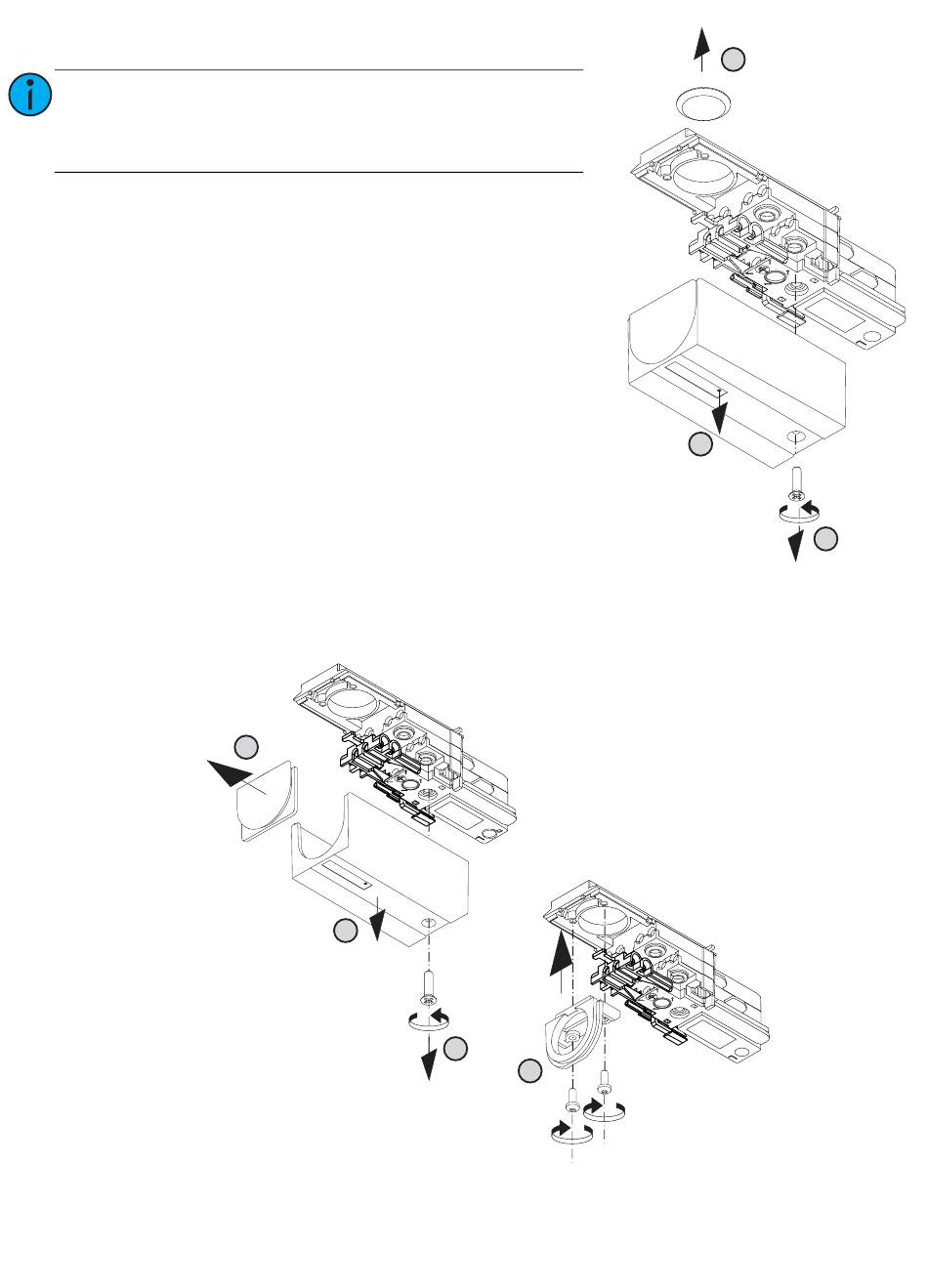

Figure 5: Prepare the end feed
a
d
DataTrack/DataTrack Backbone System Planning and Installation Manual
c
b
a
Figure 4: Prepare the
top feed
