ETC DataTrack Planning And Installation Manual page 45

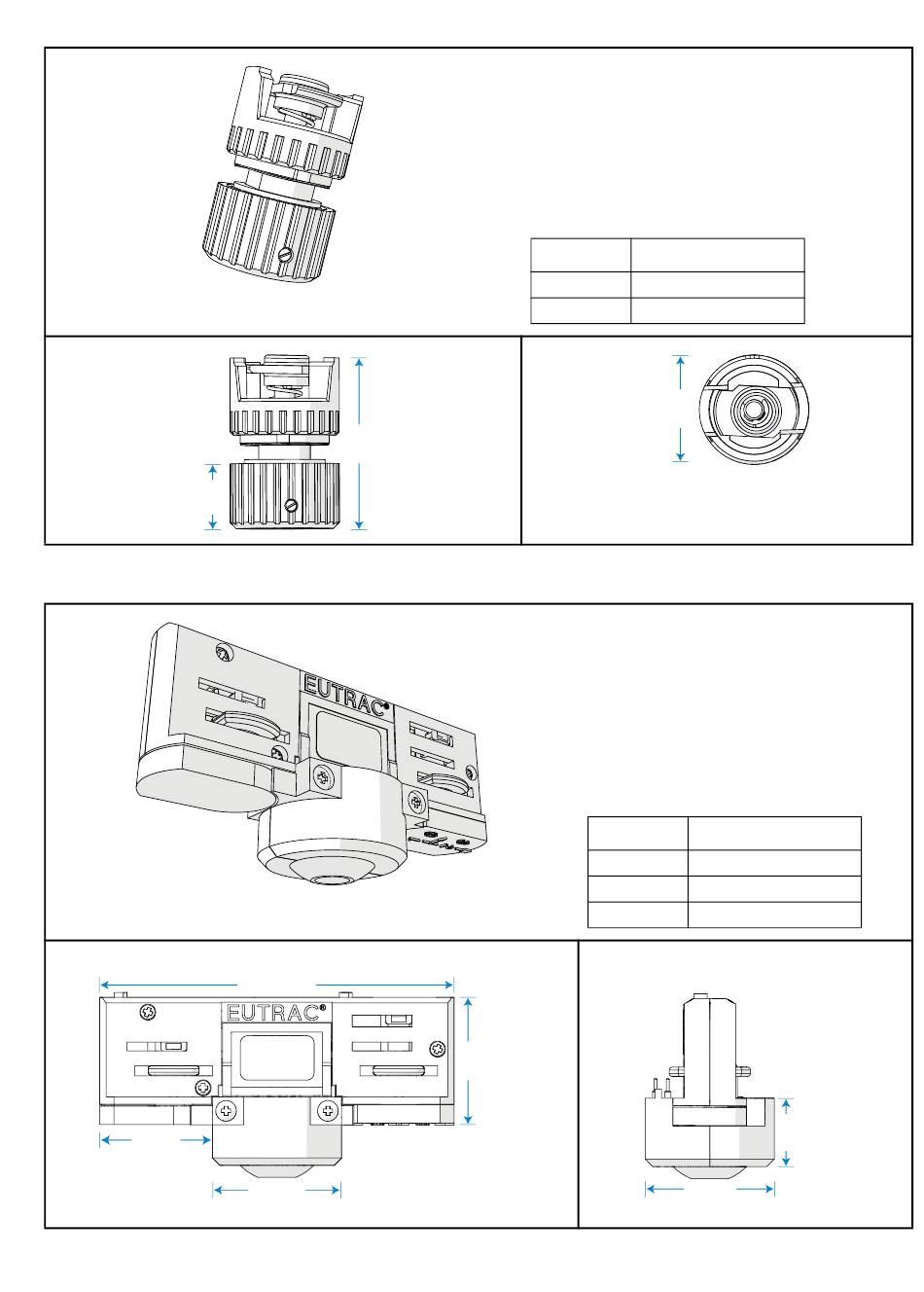

Universal Adapter
0.65 in
16.5 mm
DMX Terminator
1.18 in
30.0 mm
Parts and Accessories
1.70 in
43.2 mm
3.79 in
96.2 mm
1.38 in
35.0 mm
• Secures heavy fixtures and other fittings to
track with 1/2 in (1.27 cm) mounting bolt
• Mechanical rotation stop with spring prevents
fixtures from falling when adapter is
unfastened
• Maximum load: 22 lb (9.97 kg)
DataTrack
Color
Black
White
26.9 mm
• Terminates DMX data run
• One terminator required per data feed,
positioned at the end of the DMX data
run
• Multiple data feeds and terminations
may be required in a single DataTrack
system
Color
Black
White
Silver
1.39 in
35.2 mm
Model Number
EDTRUA
EDTRUA-1
1.06 in
DataTrack
Model Number
EDTRDMXT
EDTRDMXT-1
EDTRDMXT-5
0.76 in
19.3 mm
1.38 in
35.0 mm
