- Page 1 Source 4WRD Color Retrofit Installation and User Manual Version 1.0.0 Part Number: 7068M1200-1.0.0 Rev A Released: 2020-09...
- Page 2 To view a list of ETC trademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked and not marked, are the property of their respective owners. ETC intends this document, whether printed or electronic, to be provided in its entirety.
-
Page 3: Table Of Contents
Install the Source 4WRD Color Retrofit Install Diffusion on Reflector Install the Fixture Attach C-clamp and Safety Cable Connect Cables Configure the Fixture Set the DMX Address Play Presets and Sequences Data Loss Behavior RDM Values Source 4WRD Color Installation and User Manual... - Page 4 Restore Factory Defaults Update the Fixture Software Clean and Maintain the Fixture Clean the Fixture Store the Retrofit Clean the Lenses Clean the Reflector Clean 5° and 10° Polymer Lenses Specifications Electrical Environment Weight Optical Source 4WRD Color Installation and User Manual...
-
Page 5: Introduction
When not using DMX, you can use any of the 12 presets or 5 sequences on the Source 4WRD Color. The Source 4WRD Color can also be used with the Source 4WRD PAR or PARNel Fixture Body to create a Source 4WRD Color PAR or PARNel fixture. -
Page 6: Help From Etc Technical Services
ETC support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below. Emergency service is available from all ETC offices outside of normal business hours. -
Page 7: Safety
Safety The Source 4WRD Color fixture is intended for professional use only. Read the entire manual before using this equipment. WARNING: Note the following safety warnings before use: Do not mount the fixture on or near a flammable • surface. - Page 8 WARNING: Note the following safety warnings before use: The Source 4WRD Color is not user serviceable. Field • modification of the Source 4WRD Color will void your ETC warranty.
-
Page 9: Retrofit The Fixture

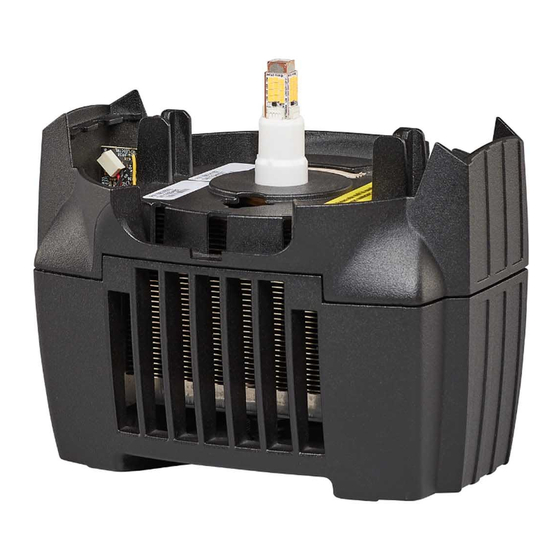

Retrofit kit User interface and navigation buttons Wire the Power Connector (If Needed) If you ordered a Source 4WRD Color retrofit without a power connector, wire the connector in accordance with all national and local electrical codes: Brown = Live •... -
Page 10: Remove Incandescent Lamp Housing
Remove the lamp housing from the fixture body. Note: The burner assembly is no longer needed. If you would like ETC to recycle the burner assembly, contact ETC Technical Services for more information. See Help from ETC Technical Services on page 2. - Page 11 Gently slide the Source 4WRD Color onto the fixture body and threaded post while guiding the LED tower into the lamp housing hole, as shown in the following image. Take care to prevent contact between the LEDs and the reflector.
-
Page 12: Install Diffusion On Reflector
Install Diffusion on Reflector When you use the Source 4WRD Color with a Source Four fixture body, you must install the diffusion provided with the Source 4WRD Color on the output end of the reflector. WARNING: Do not use the diffusion with a Source Four HPL lamp. - Page 13 Ensure that the tabbed corners are snug under the reflector bracket wings. Shiny side facing out Tabbed corner fits under reflector bracket wings Replace and secure the shutter barrel and lens tube. Source 4WRD Color Installation and User Manual...
-
Page 14: Install The Fixture
Attach C-clamp and Safety Cable The C-clamp attaches the fixture to the mounting pipe and allows you to adjust the position of the mounted fixture. ETC recommends using 1.5 in schedule 40 pipe. Tightly fasten the C-clamp to the yoke with the provided yoke bolt and lock washer. -
Page 15: Connect Cables
Connect Cables WARNING: Do not use or store the Source 4WRD Color fixture below 5°C (41°F). When the fixture has been stored or transported in cold temperatures, allow it to warm to room temperature for a minimum of 1 hour before applying power. -
Page 16: Configure The Fixture
Press any button to wake the display. The display shows the DMX address. Use the Up and Down buttons to select the DMX address for the fixture. You can also use RDM for DMX addressing. Source 4WRD Color Installation and User Manual... -
Page 17: Play Presets And Sequences
You cannot re-record presets and sequences locally on the fixture, but you can modify them via RDM. Preset Name Preset Name 3200 K White Magenta 5600 K White Yellow Orange Green Light Yellow Blue Light Blue Cyan Light Pink Source 4WRD Color Installation and User Manual... -
Page 18: Data Loss Behavior
Value Manufacturer ID 0x6574 Electronic Theatre Controls Model ID 0x0802 ETC Source 4WRD Color DMX Start Address 0x00F0 Range = 1–507 Output Frequency 0x8123 0 = Standard (1.2 kHz) 1 = High (20 kHz) Source 4WRD Color Installation and User Manual... -
Page 19: Focus The Fixture
Note: The Source 4WRD PAR or PARNel Fixture Body optics are optimized for PEAK focus. When using the Source 4WRD Color in a Source 4WRD PAR or PARNel Fixture Body, turn the Z-adjustment knob toward PEAK until the knob becomes loose, and then tighten the Z-adjustment knob an additional quarter turn. -
Page 20: Shape The Beam
The pattern holder slot is on the top side of the barrel and in front of the shutters. It accommodates A-size, B-size, and glass pattern holders. Because the Source 4WRD Color fixture aperture is 3 inches wide, ETC recommends A-size patterns for maximum effectiveness. -
Page 21: Troubleshoot The Source 4Wrd Color
Troubleshoot the Source 4WRD Color The following error codes may be seen on the Source 4WRD Color user Help from ETC interface. For more troubleshooting assistance, see Technical Services on page 2 : Screen toggles between to indicate that the •... -
Page 22: Update The Fixture Software
Software Quick Guide , which you can download for free from etcconnect.com. When you add a Source 4WRD Color fixture running a newer software version or update a Source 4WRD Color fixture to a newer software version using UpdaterAtor, you can use that fixture to push the newer software version to all connected Source 4WRD Color fixtures. -
Page 23: Clean And Maintain The Fixture
Store the Source 4WRD Color at temperatures • of 5°C (41°F) or higher. If you must store the Source 4WRD Color below • 5°C (41°F), make sure it is in an upright Store with LEDs facing up position as shown. -
Page 24: Clean The Lenses
50%-50% mixture of each to clean the glass surface. Slide the lens tube back into the barrel with the color frame retaining clip on top. Reinstall the beam focus knob and retaining bolt. Source 4WRD Color Installation and User Manual... -
Page 25: Clean The Reflector
The barrel should be firmly attached and the triangles should be aligned. Reinstall the barrel rotation knob and tighten the retaining bolt. Reinstall the LED lamp housing and tighten the attachment screw. Install the Source 4WRD Color Retrofit on page 6 Source 4WRD Color Installation and User Manual... -
Page 26: Clean 5° And 10° Polymer Lenses
Set the lens back in the lens tube with the ridged side facing the front of the tube. Reinstall the lens brackets. Slide the lens tube back into the barrel with the retaining clip for the color frame on top. Reinstall the beam focus knob. Source 4WRD Color Installation and User Manual... -
Page 27: Specifications
Specifications For full product specifications, see the Source 4WRD Color datasheet at etcconnect.com. Electrical 100–240 VAC 50/60 Hz power input • 150 W draw at full • Maximum of 10 fixtures per non-dimmed circuit (R20 module) • Requires power from a non-dimmable source. - Page 28 Conta c t etcconnect.com/contactETC © 2020 Electronic Theatre Controls, Inc. Product information and specifications subject to change. ETC intends this document to be provided in its entirety. Trademark and patent info: etcconnect.com/ip 7 0 6 8 M 1 2 0 0 -1 .0 .0 Rev A Released 2020-09...
