Wiring In-line Feeds

1: Strip ground wire and connect to a 0.25 in (6.35 mm) female quick disconnect terminal (not
supplied). Push terminal onto tap clamp at ground plate. Use provided green wire for connecting
between tap clamp and feed connector terminal.
2: Strip white Neutral wire and connect to Neutral 1 terminal (N1) of feed connector. Clamp wire
using screw. See
:
3: Measure and strip a new wire (not provided) and connect N1 terminal (Feed Connector 1) to
N1 terminal (Feed Connector 2).
4: Strip Hot 1 supply wire and connect to a 0.25 in (6.35 mm) female quick disconnect (not
supplied). Push onto the Line tap clamp on the overcurrent device.
5: Connect load from overcurrent device to feed connector terminal L1 using provided wire.
6: Measure and strip a new wire (not provided) and connect L1 terminal (Feed Connector 1) to
L1 terminal (Feed Connector 2).
7: Follow the same instructions for Neutral 2 and Hot 2.
26
Figure 18
.
N1
L1
P E
L2
N2

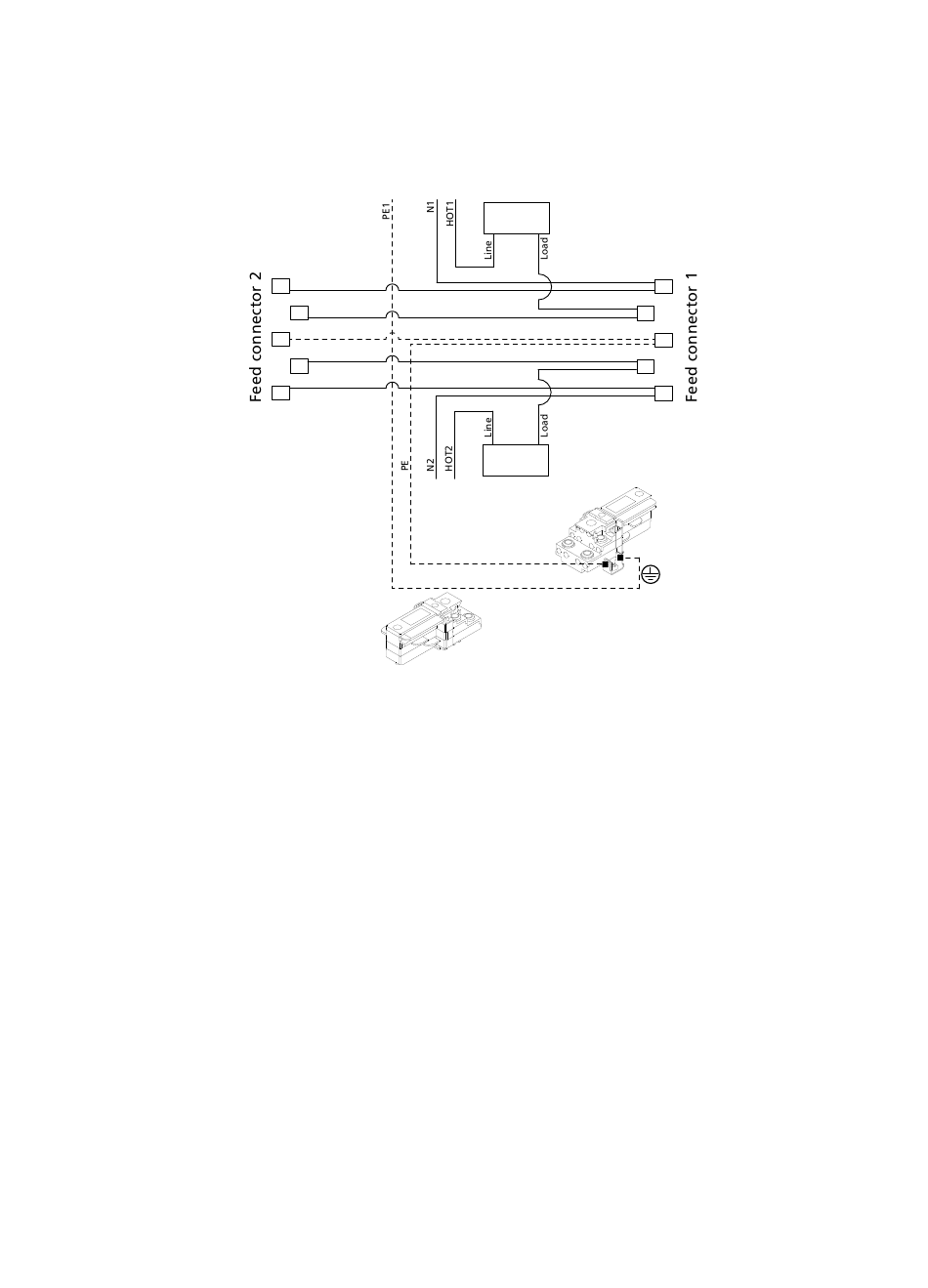

Figure 18: In-line feed wiring
CIRCUIT
BREAKER
CIRCUIT
BREAKER
