ETC DataTrack Planning And Installation Manual page 44

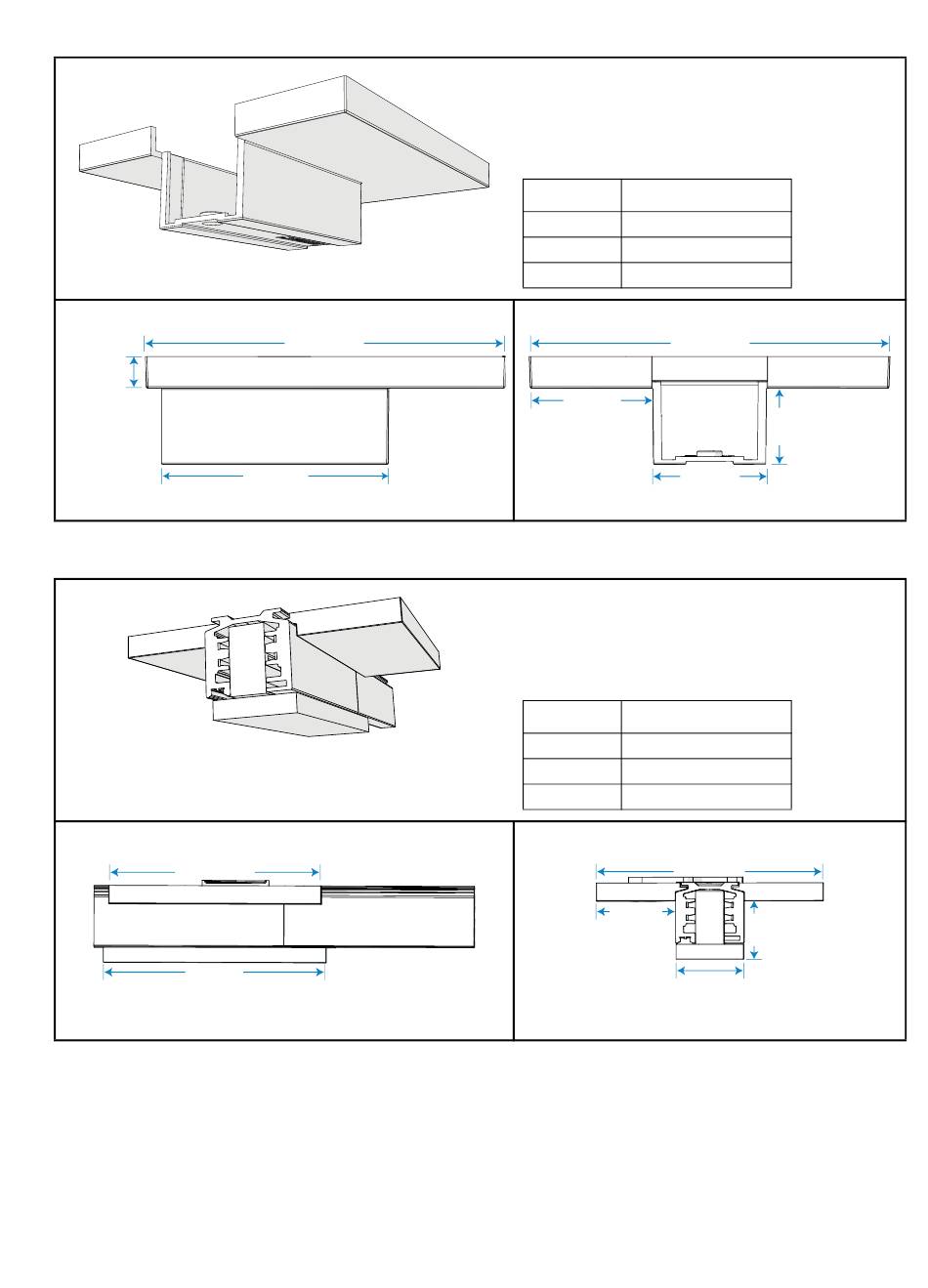

End-feed Canopy Cover
0.37 in
9.5 mm
Mid-feed Canopy Cover
4.38 in
111.3 mm
4.61 in
117.0 mm
40
4.46 in
113.3 mm
2.81 in
71.3 mm
• Covers holes in ceiling surface created for feed
wires from junction boxes
• Not for use with DataTrack Backbone
DataTrack
Color
Black EDTRCC
White EDTRCC-1
Silver EDTRCC-5
1.52 in
38.5 mm
• Covers holes in ceiling surface created for feed
wires from junction boxes
• Not for use with DataTrack Backbone
DataTrack
Color
Black EDTRMCC
White EDTRMCC-1
Silver EDTRMCC-5
1.62 in
41.3 mm
DataTrack/DataTrack Backbone System Planning and Installation Manual
Model Number
4.46 in
113.3 mm
0.94 in
23.8 mm
1.39 in
35.3 mm
Model Number
4.73 in
120.1 mm
1.24 in
31.6 mm
1.40 in
35.5 mm
