3:

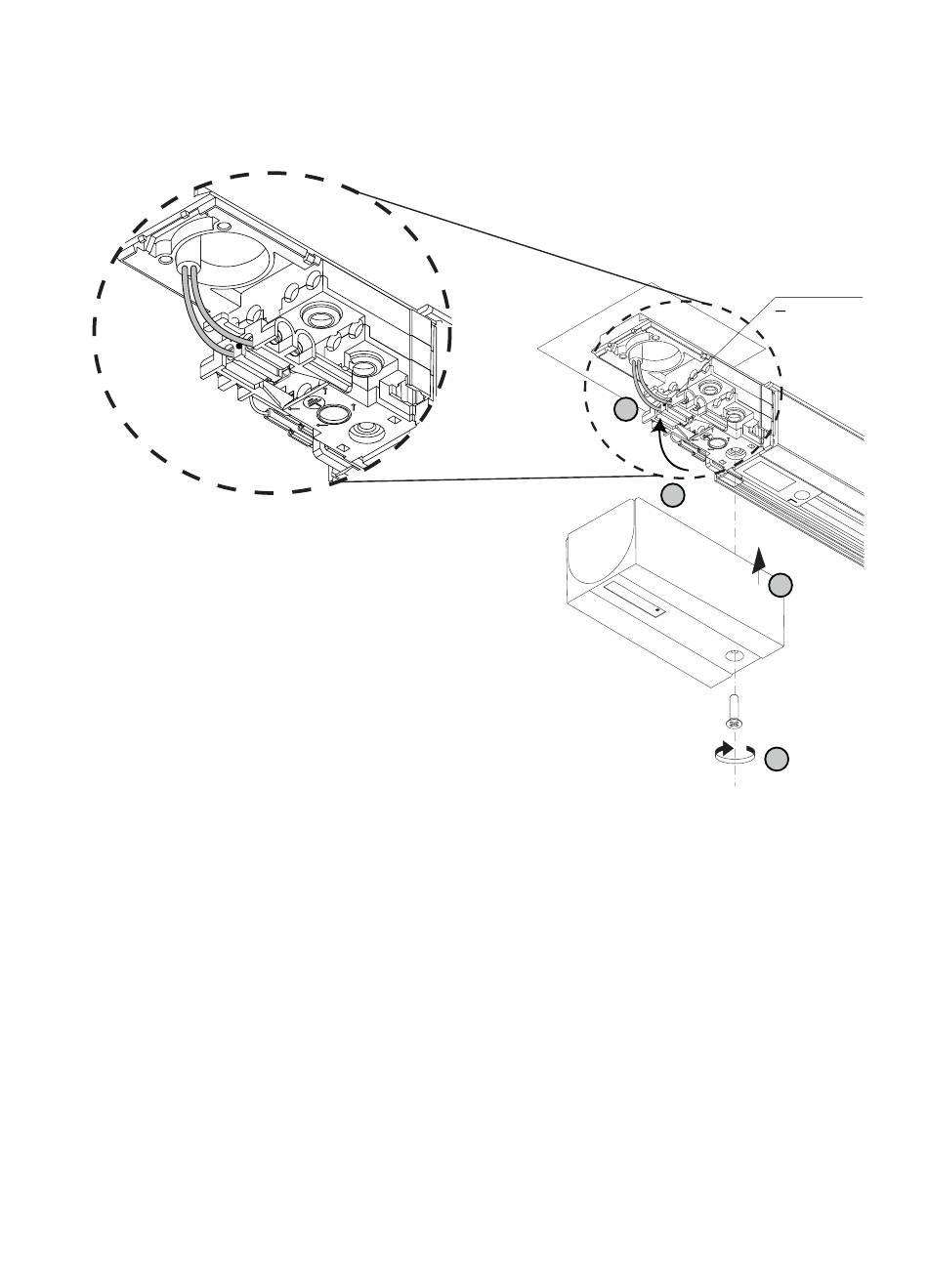

Connect the DMX end feed.
a: Install the wire retainer.
b: Connect data line wires to screws as illustrated to track.
c: Install the cover.
d: Install the cover screw.
18
Figure 7: Connect the DMX end feed
DataTrack/DataTrack Backbone System Planning and Installation Manual
Data line
Black
+ Red
b
a
c
d
