ETC DataTrack Planning And Installation Manual page 40

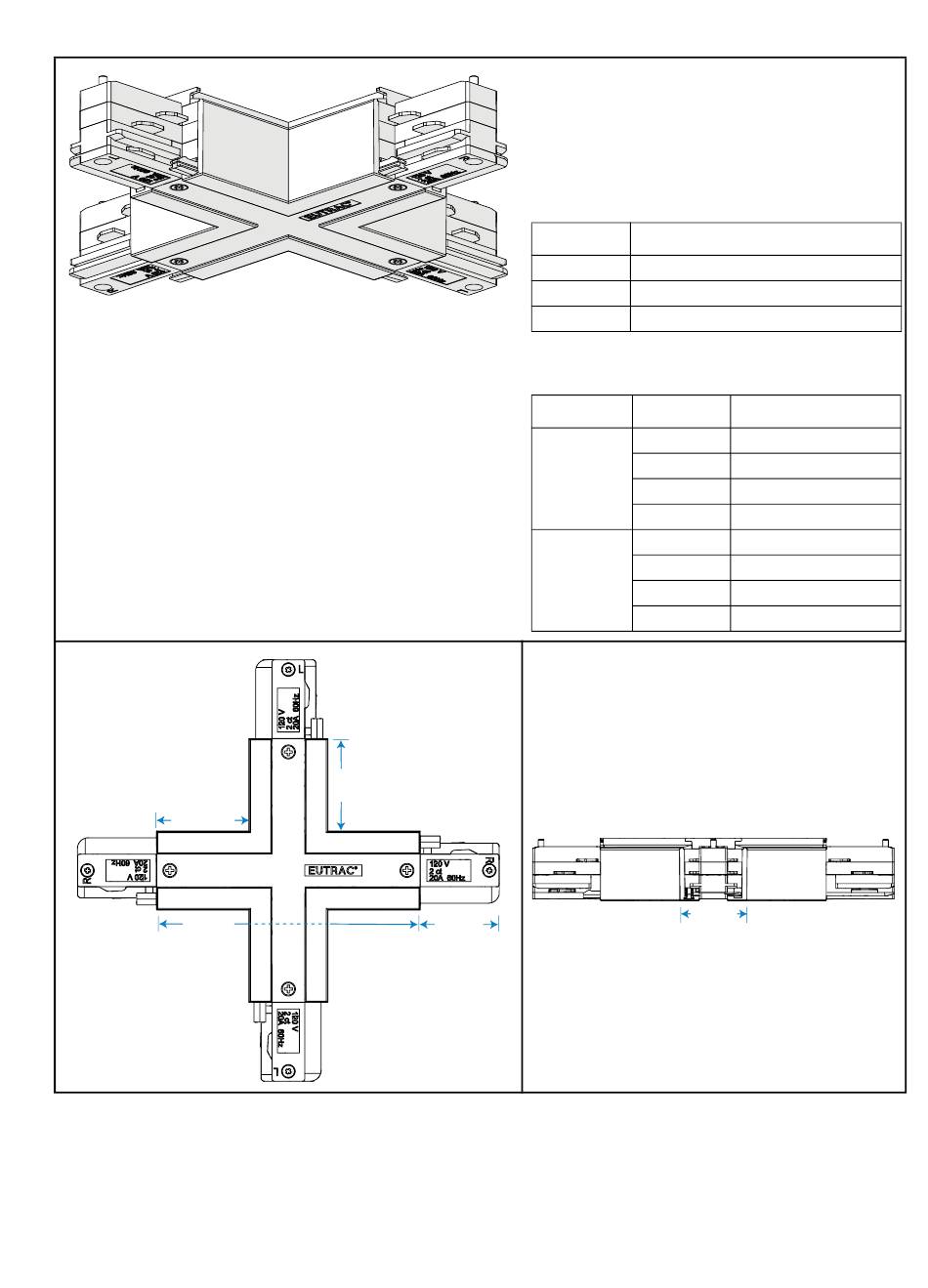

X-coupler
1.66 in
42.2 mm
4.69 in
119.0 mm
36
1.66 in
42.2 mm
1.37 in
34.9 mm
DataTrack/DataTrack Backbone System Planning and Installation Manual
• Splices four pieces of DataTrack at a 90° angle
• Supports power and/or data feed
• Top feed only
• Data can be routed to either pair of interior
corners, field-configurable
DataTrack
Color Model Number
Black EDTRXC
White EDTRXC-1
Silver EDTRXC-5
Related Accessories:
DataTrack Backbone X-coupler Housing
Pull Box? Color
Black
White
Yes
Silver
Custom
Black
White
No
Silver
Custom
1.40 in
35.6 mm
Model Number
DTB-XF-BLK
DTB-XF-WHT
DTB-XF-SLV
DTB-XF-CST
DTB-X-BLK
DTB-X-WHT
DTB-X-SLV
DTB-X-CST
