2: Connect the power end feed.
a: Slide the end feed onto the track until it is flush with the track edge.
b: Secure the end feed to the track with the provided screw.
c: Rotate the wire retainer down.
d: Connect the feed wires and ground wire to the terminals as illustrated, and secure the screws.
L2
N2
Electrical connection for two 20A circuits at 120V AC:
Maximum load: 1920W
Fuses: 2 x 16A
Electrical connection for two 20A circuits at 230V AC:
Maximum load: 4600W
Fuses: 2 x 16A
Supply wire: 12 AWG (2.5 mm
Data line maximum voltage: 20V
Data line maximum current: 250mA
Installation
L1
N1
2 ) recommended

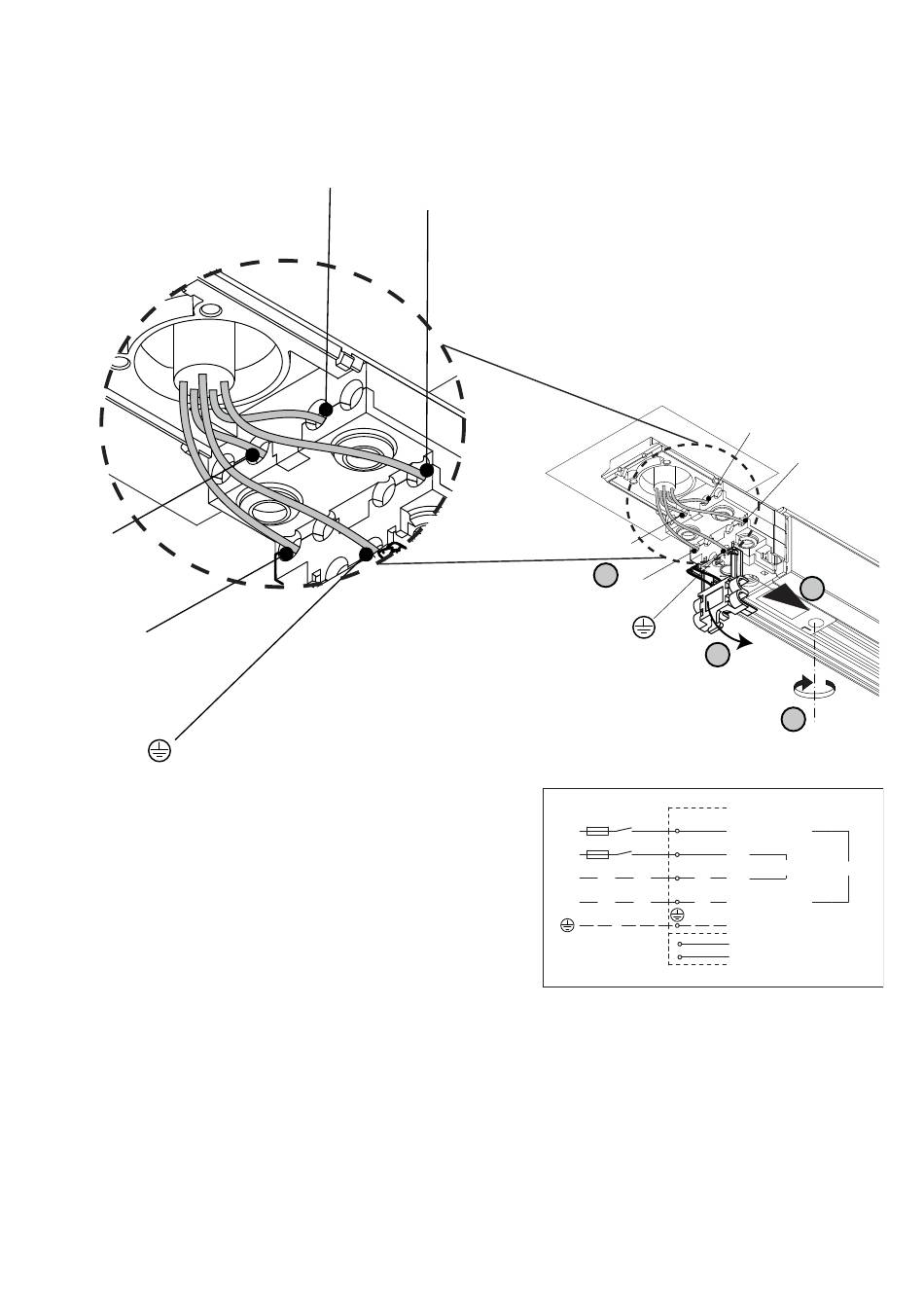

Figure 6: Connect the power end feed
L2
d
N2
c
20A
2
L2
20A
1
L1
N1
N1
N2
N2
DATA
DATA
L1
N1
a
b
120 V 120 V
