6:
Using the enclosed hexagonal head wrench, turn all contact screws in the direction indicated by
the arrow.
7:
After the mid feed has been fixed securely into place, wire the individual circuits and the ground
conductor as shown. When wiring the track, check that the ground conductor (green) and the
neutral conductors (white) are connected as indicated in
2 can be wired as required.
Power supply line
Installation

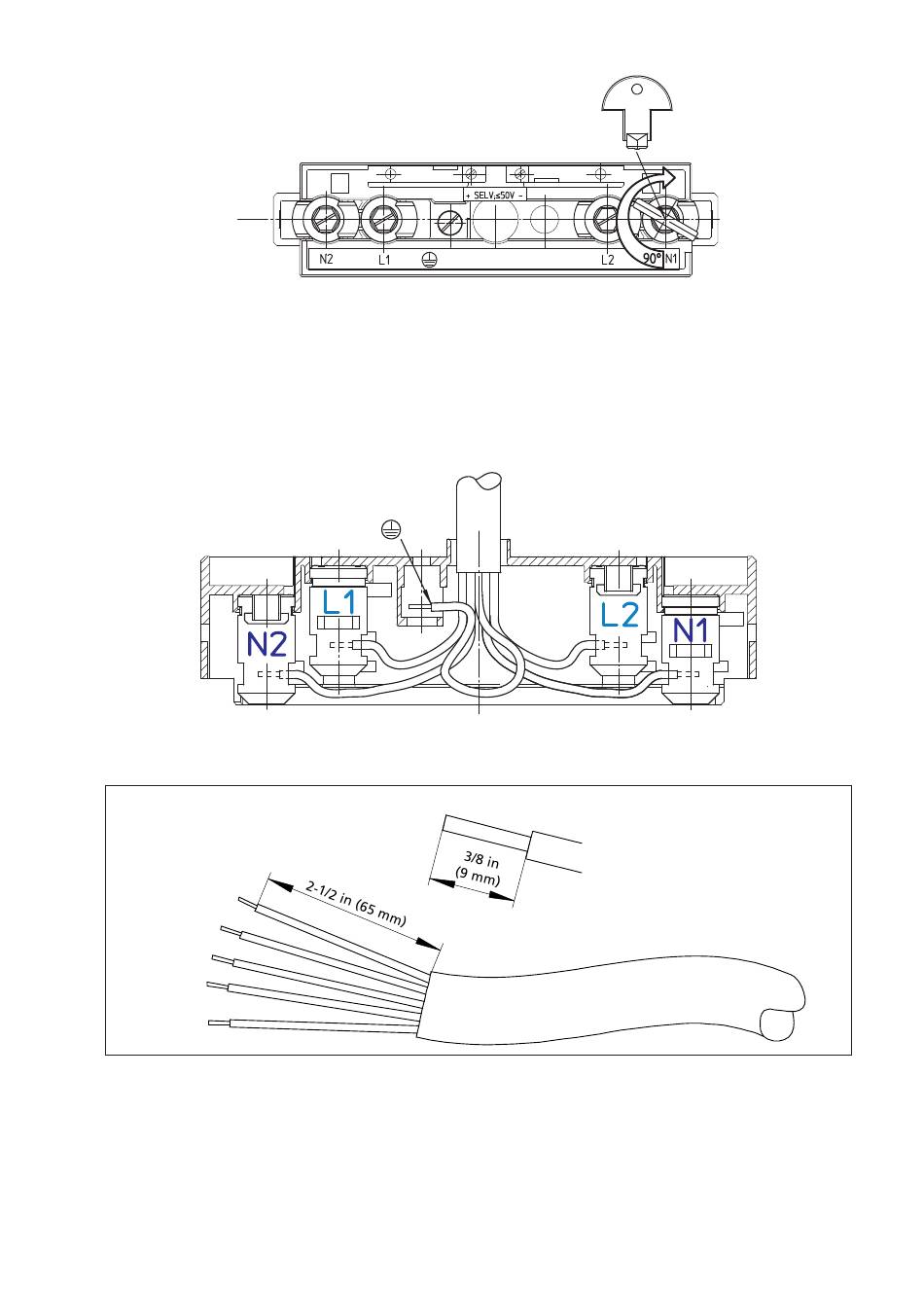

Figure 13: Mechanical attachment to track
5-pole mains lead
Green
Figure 14: Wiring
Figure 15: Dismantling and insulation strip lengths
Figure 14
Figure 15
and
Wire size:
Minimum = 16 AWG (1.5 mm
Maximum = 14 AWG (2.5 mm
. Circuits 1 and
2
)
2
)
21
