ETC Installation Guide
ColorSource CYC v1.7
Overview

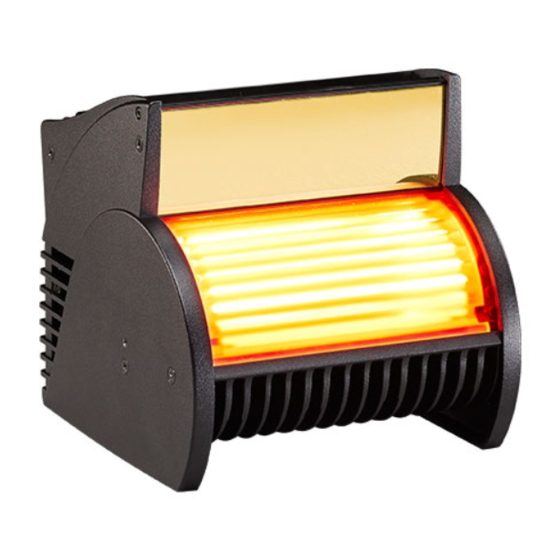

The ColorSource CYC is an affordable LED fixture that uses the RGBI-L (red,
green, blue, indigo, and lime) color system to provide a rich, bright light.
Note:
of software. For information on updating fixture software, see
the Fixture Software on
Safety
For professional use only. Read the entire manual before using this
equipment.
CAUTION:
•
•
WARNING:
allow it to cool before performing any cleaning and maintenance.
Features described in this document require the latest version
page 9.
Risk of eye injury. Do not stare directly into the light.
Do not operate in proximity to flammable materials.
Disconnect the fixture from power and DMX and
Corpora te He a dqua rte rs Middleton, WI, USA +1 608 831 4116
London, UK +44 (0)20 8896 1000 Holzk irc he n, DE +49 (80 24) 47 00-0
Rome , IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 P a ris, FR +33 1 4243 3535
We b
etcconnect.com
Conta c t
etcconnect.com/contactETC
Product information and specifications subject to change. ETC intends this document
to be provided in its entirety. Trademark and patent
7 4 1 5 M 2 1 0 0 -1 .7 Rev C Released 2020-03
Support
support.etcconnect.com
© 2020 Electronic Theatre Controls, Inc.
Update
info: etcconnect.com/ip
Advertisement
Table of Contents
Related Manuals for ETC ColorSource CYC v1.7
Summary of Contents for ETC ColorSource CYC v1.7
- Page 1 Conta c t etcconnect.com/contactETC © 2020 Electronic Theatre Controls, Inc. Product information and specifications subject to change. ETC intends this document to be provided in its entirety. Trademark and patent info: etcconnect.com/ip 7 4 1 5 M 2 1 0 0 -1 .7 Rev C Released 2020-03...
-
Page 2: Important Safeguards
• SAVE THESE INSTRUCTIONS Note: The light source in this luminaire is not user-replaceable, and must be replaced only by a qualified technician. Contact ETC Customer Support for assistance. Environment The ColorSource CYC operates in ambient temperatures of 0°C–40°C. The ColorSourceCYC is for indoor use only. -
Page 3: Typical Power Consumption
ETC Installation Guide ColorSource CYC v1.7 Electrical Operates between 100 V and 240 VAC at a frequency of 50/60 Hz. • Maximum power consumption is 160 W. • Up to 9 luminaires (15 A max) may be linked via power thru connector • (10 luminaires total per circuit) when used with an R20 Relay Module or Unison Echo Relay Panel. -
Page 4: Set Up The Fixture
Data (DMX512/RDM): Two five-pin XLR connectors OR two • RJ45 connectors for data in and thru Conversion cables are available from ETC. Please contact your ETC customer service representative and request part number W6538 for RJ45 to female XLR or part number W6539 for RJ45 to male XLR. -
Page 5: Set The Dmx Address
ETC Installation Guide ColorSource CYC v1.7 Adjust the Tilt When pipe-mounting the fixture, tilt the fixture so that the base of the fixture is perpendicular to the cyclorama. Loosen, but do not remove the yoke locking knobs. Tilt the fixture so that the base of the fixture is perpendicular to the cyclorama. -
Page 6: Dmx Control Channels
) on the ColorSource CYC is not a calibrated mode. As a result, you may see discrepancies in color between fixtures. ETC recommends operating in one of the calibrated modes, such as 5-channel mode or RGB mode. (Calibrated modes make accommodations for the specific LEDs in the array and produce output that is consistent with other fixtures. - Page 7 ETC Installation Guide ColorSource CYC v1.7 Play Presets and Sequences The fixture has twelve factory-configured presets and five factory-configured sequences. When you play a preset or sequence on a fixture, the same preset number or sequence number plays on any connected fixtures that are not receiving DMX.
- Page 8 ETC Installation Guide ColorSource CYC v1.7 Pre-configured Sequences Sequence Name Rainbow Fast Rainbow Slow Warm Colors Fast Cool Colors Fast Random Re-record Presets Using DMX, set the desired levels for the new preset. Press the Mode button to access the Presets/Sequences menu.
-
Page 9: Restore Factory Defaults
To unlock the user interface, press and hold the Up button and Down button simultaneously for 3 seconds. Update the Fixture Software ETC recommends using UpdaterAtor software to manage software updates. For more information on UpdaterAtor, see the UpdaterAtor Software Quick Guide , which you can download for free from etcconnect.com. -
Page 10: Error Codes
: Screen toggles between to indicate a problem with • the color calibration. The fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair. : Screen toggles between to indicate that the fixture •... - Page 11 ETC Installation Guide ColorSource CYC v1.7 ColorSource CYC Page 11 of 12...
-
Page 12: Quick Reference
: Screen toggles between to indicate a problem with • the color calibration. The fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair. : Screen toggles between to indicate that the fixture •...
