3 Components and Power Supply

Chapter 3 Components and Power Supply
The following chapter provides information on the Regesta-PRO-ER router family chassis and its components. This
information includes:

3.1 Components

3.1.1 Front Panel

The following figure illustrates the AC version front panel.

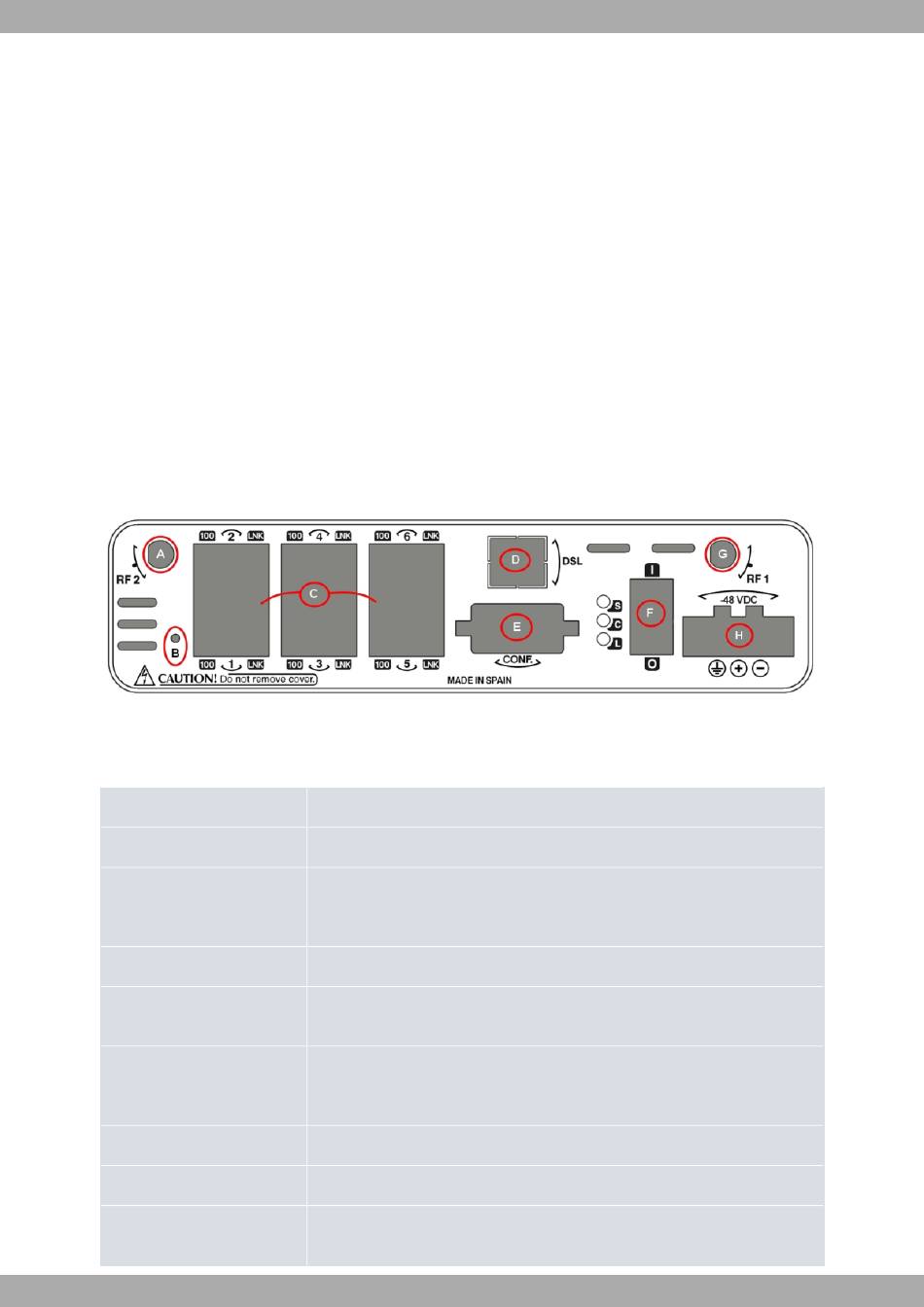

Front panel
Fig. 2:
The front panel elements are as follows:
Elements table for the front panel
Item
A
B
C
D
E
F
G
H
6
• Components.
• Assembly instructions.
• Power supply.
• RST button.
• Data connection.
• Installing the SIM card.
Description
RF2. WWAN antenna connector.
RST. Reset button. For further information on how the reset button works, please
see section RST Button
available in version AC.
6-port Ethernet Switch
DSL. ADSL connector permitting connection to an ADSL/ADSL2+ over ISDN net-
work.
CONF. DB9 connector providing Access to the device local console for configura-
tion and monitoring purposes. (This connector can also be used as an RS-232
asynchronous DCE serial port in some code versions).
I/O. ON/OFF power switch, position I for ON and position O to switch it OFF.
RF1. WWAN antenna connector.
-48VDC. Power connection (DC). For further information on the power connection,
please see section
on page 14 further on in this chapter. This button is only
Connecting to the Power Supply on page 12.
