3 Components and Power Supply
3.5.4.1 Console connector as serial port (CONF connector)
Software version 10.08.29 and following allow you to convert the console port into an RS-232 asynchronous DCE
serial port. This port has the following characteristics:
(1) DCE port.
(2) RS-232 norm.
(3) Maximum speed of 38400 bps.
(4) Only the following signals are available: RxD (pin 2), TxD (pin 3) and GND (5).
(5) DB-9 connector.

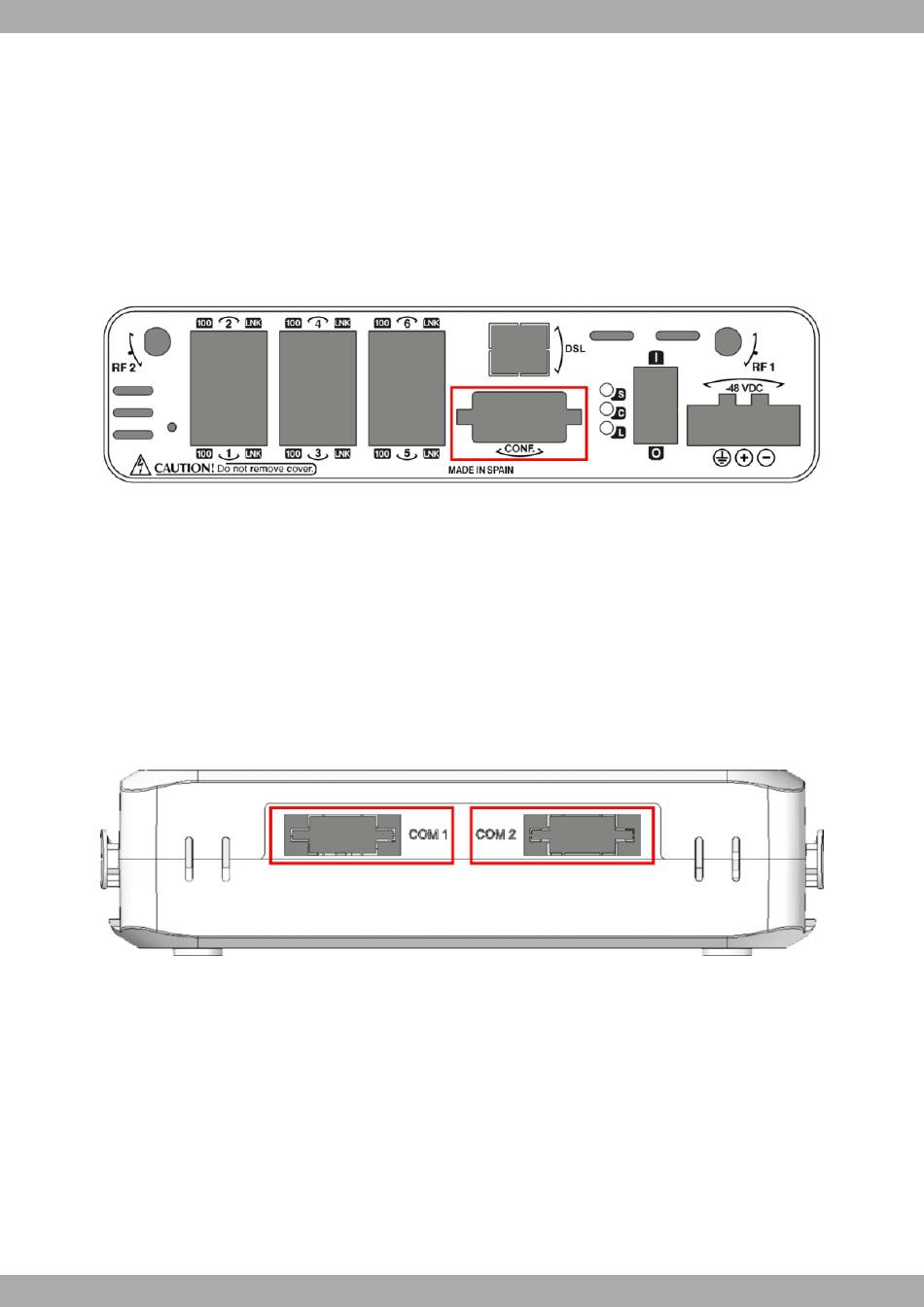

Console connector as serial port
Fig. 18:
To use this as the router's configuration port, please see section
3.5.4.2 Asynchronous serial ports
Models 003, 013, 103 and 113 are equipped with 2 serial ports. These serial ports have the following characteristics:
(1) DCE port.
(2) RS-232 norm.
(3) Maximum speed of 115200 bps.
(4) All control signals are available.
(5) DB-9 connector.
RS-232 asynchronous serial connectors
Fig. 19:
18
Connecting to the router on page 22.
