The Regesta-PRO-ER router incorporates independent modules for the Wireless WAN interface. You can pick mod-
ules from different manufacturers or choose several modules from the same provider, depending on the technology
used. Generally, the firmware is independent from the device's software. There is an UPGRADE file for each Wire-
less LAN module. Please ask your distributor for the correct UPGRADE file (according to the module in your device).
The manual describing the CELLULAR interface (Teldat-Dm781-I) explains how to upgrade the module.
A.3 Connecting to the router
There are two ways of accessing the device CLI:
• Through the CONF connector.
• Through the Telnet protocol.
A.3.1 Connecting through the local console (CONF connector)
The Regesta-PRO-ER routers have a DB-9 female connector on the front panel referred to as " CONF." , which
provides access to the device local console. In order to configure this, you must connect the " CONF." port to an
asynchronous terminal (or to a PC with terminal emulation).
Note
Configuration for the terminal must be as follows:
- Speed: 9600 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No type of flow control.
Connection to the configuration port can be done by joining a DB9 male and a DB9 female connector cable. If the
terminal has DB25 connectors, you will need to use an additional adapter.

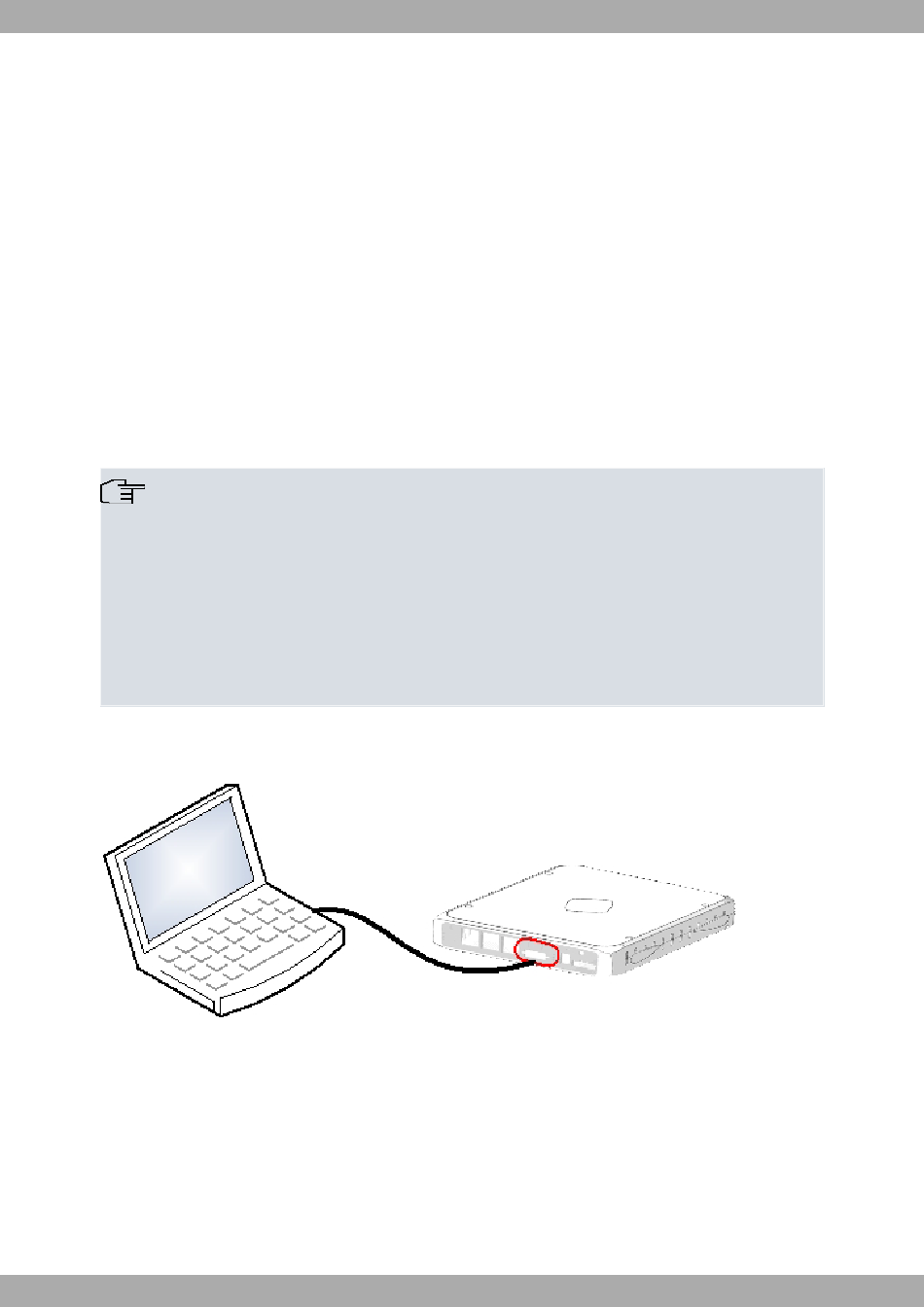

Connection for configuration
Fig. 23:
A.3.2 Connection through an IP terminal (LAN 1...6 connectors)
The Regesta-PRO-ER router includes a default configuration that activates if you haven't configured anything previ-
ously.
The router's default configuration establishes the following IP address and access mask:
22
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
