In addition to the connectors, the front panel also contains a set of LEDs that provide information on what is happen-
ing in the router.

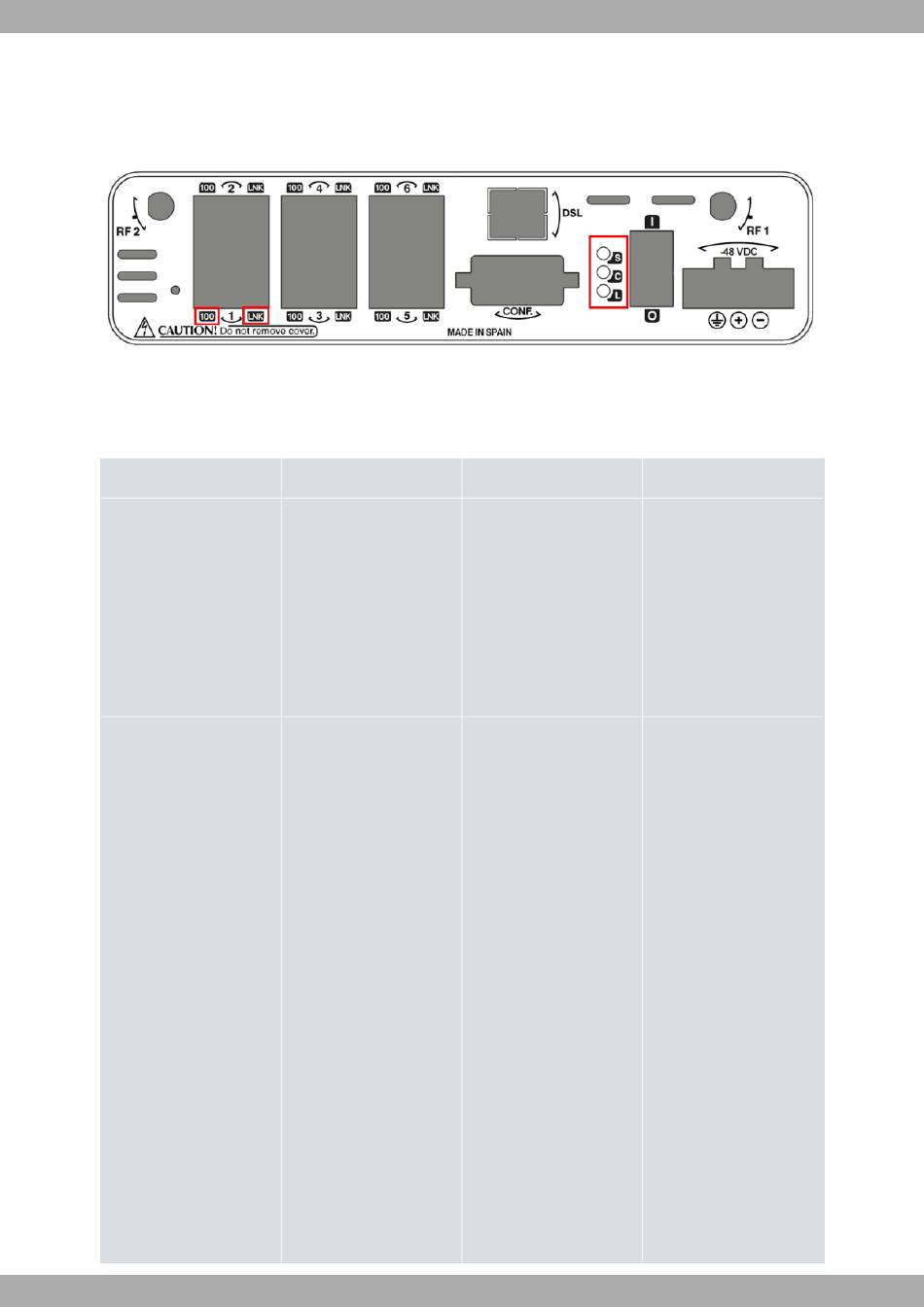

The LEDs are organized, as shown in the following figure, on the router front panel:
Front panel LEDs
Fig. 3:
While the device is in startup mode, LED "L" lights up in green. Once the device has booted, the LEDs indicate the
following:
Front panel LEDs table
LED
S
C
Regesta-PRO-ER
Associated interface
Cellular interface corres-
ponding to the active SIM
Cellular interface corres-
ponding to the active SIM or
the statue of the ADSL con-
nection.
In cases where the router is
equipped with both an AD-
SL interface and a cellular
interface, the color of the
LED is operated by both in-
terfaces.
Status
Green
Amber
Red
Amber
Green
Red
Yellow
Green
3 Components and Power Supply
Description
SK1 operating SIM. This is
processing traffic through
the carrier for the SIM in-
stalled in this tray.
SK2 operating SIM. This is
processing traffic through
the carrier for the SIM in-
stalled in this tray.
Cellular interface is not
available, not installed or
not registered.
The device has registered
in the network and is in pro-
cess of establishing the
PPP protocol.
The device is registered,
PPP is established and it
can send IP traffic through
the PPP interface.
- Steady light: Data is not
being transferred.
- Flashing: Data is being
transferred.
ADSL
The device is not connected
to the ADSL network.
ADSL connection is being
