4 Installing the SIM card

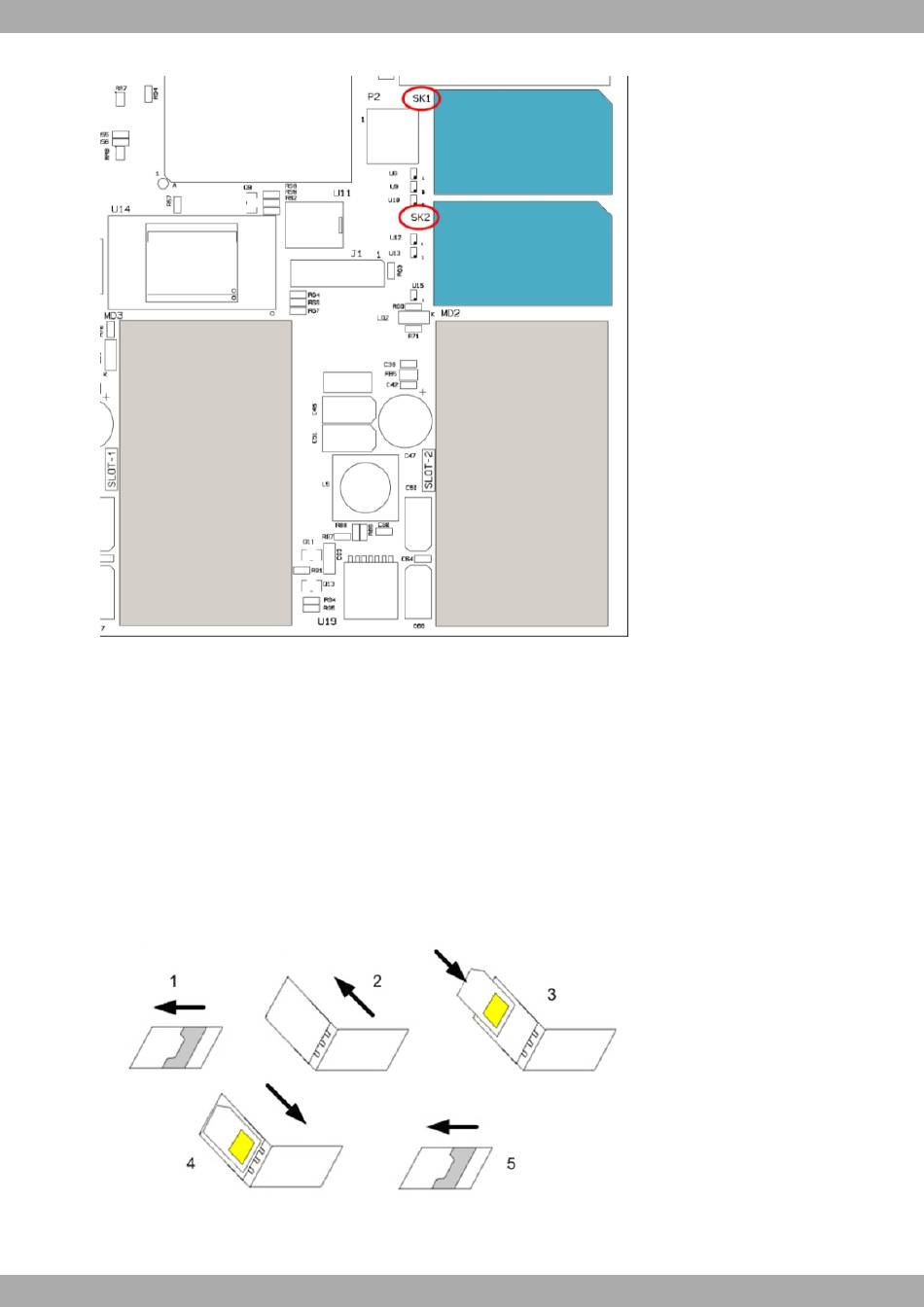

Location of the SK1 and SK2 SIM trays
Fig. 21:

4.2 Procedure to install the SIM

In order to insert a SIM card in a tray, locate the retaining flange (metal fastening with OPEN and LOCK on it) so you
can open the tray and place the SIM card on it. The steps are as follows:
(1) Push the fastening in the direction indicated by the arrow with the word OPEN.
(2) Open the upper part of the tray.
(3) Fully insert the SIM card using the guides.
(4) Return the tray to its original position.
(5) While pressing on the tray, push the fastening towards the direction indicated by the word LOCK until it is firmly
in place.
Inserting the SIM in the internal tray
Fig. 22:
