Note
Some devices leave the factory with customized settings. This personalization can mean that the de-
fault configuration is different from the one shown above.
This initial configuration allows you to access the device configuration console through the Telnet IP protocol. To do
this, follow these steps:
• Configure the IP terminal (normally a PC) Ethernet interface with an IP address within the range [192.168.1.2,
192.168.1.254] and with mask 255.255.255.0. E.g. 192.168.1.2, 255.255.255.0.
• Connect the IP terminal Ethernet interface to any of the Regesta-PRO-ER router's Ethernet Switch ports (LAN1..6)
through the Ethernet cable (RJ45) provided.
• Initiate a Telnet session from the IP terminal to IP address 192.168.1.1 ( Regesta-PRO-ER default address).
• The default configuration does not ask for credentials (user/password) to access the console.

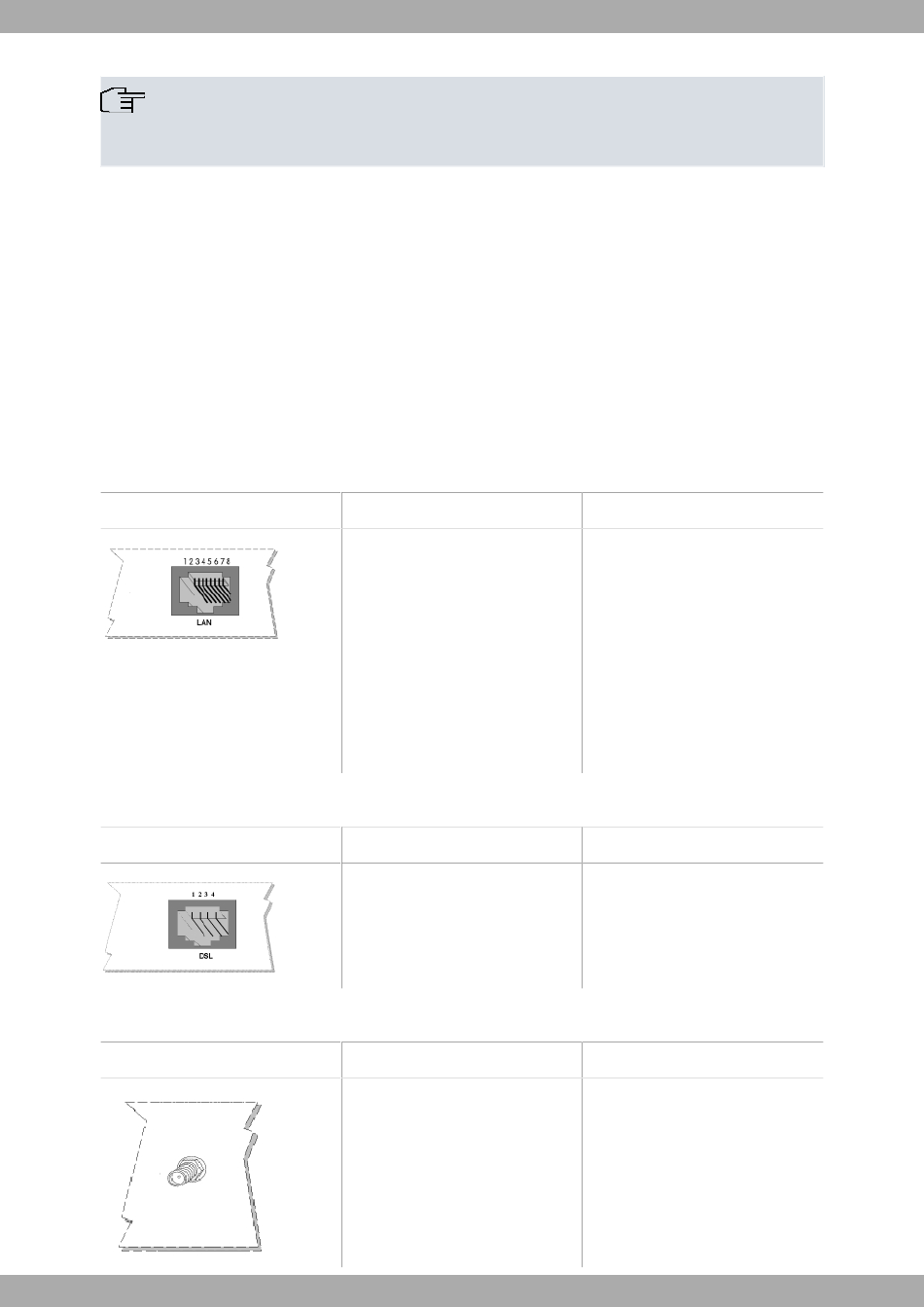

A.4 Connectors
A.4.1 LAN Connector
RJ45 LAN
A.4.2 DSL Connector
RJ11 DSL
A.4.3 RF Connectors
Regesta-PRO-ER
RJ45 PIN
1
2
3
4
5
6
7
8
RJ11 PIN
1
2
3
4
PIN
Internal
External
LAN
Tx+(input)
Tx-(input)
Rx+(output)
--
--
Rx-(output)
--
--
DSL
Joined to 2
Line
Line
Joined to 3
ANT
RF in/out
GND
Technical Information
