Configuration Connector; Serial Port Connectors; Technical Specifications; Lan Interface - Teldat REGESTA-PRO-ER Series Installation Manual

Technical Information

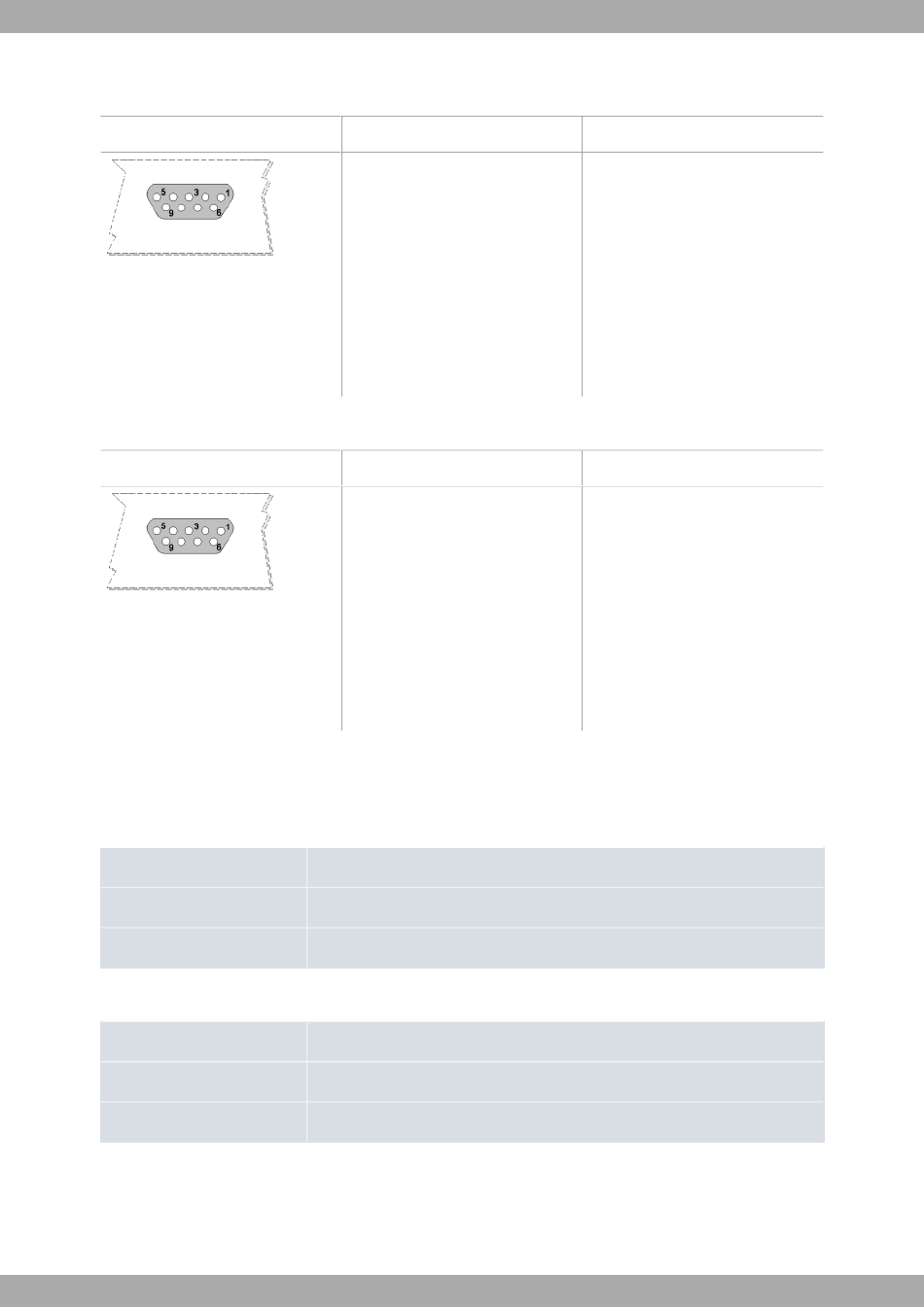

A.4.4 Configuration Connector
DB9 CONFIGURATION
A.4.5 Serial Port Connectors
DB9
A.5 Technical Specifications
A.5.1 LAN Interface
PROTOCOLS
SPEED
CONNECTOR
A.5.2 DSL Interface
STANDARDS
SPEED
CONNECTOR
24
PIN
1
2
3
4
5
6
7
8
PIN
1
2
3
4
5
6
7
8
Ethernet (802.3)
Switch 10/100 Mbps (Base T)
RJ45 female
Please see the DSL manual
Please see the DSL manual
RJ11 female
CONF
--
RxD
TxD
--
GND
--
--
--
SERIAL
CD
RxD
TxD
DTR
GND
DSR
RTS
CTS
Teldat S.A.
Regesta-PRO-ER
