Chapter 3: System Setup

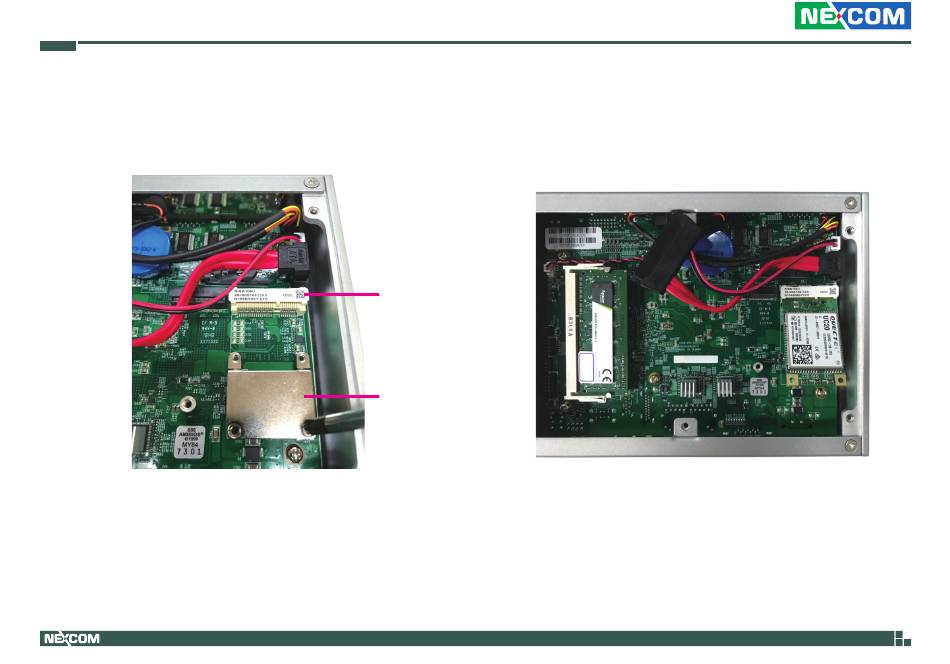

Installing a Wireless LAN Module (Full-size)
1. Locate the mini-PCIe slot on the board, and remove the mini-PCIe bracket
from the board.
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
2. Insert the mini-PCIe module into the mini-PCIe slot at a 45-degree angle
until the gold-plated connector on the edge of the module completely
disappears into the slot.
Mini-PCIe Slot
Mini-PCIe
Bracket
34
NISE 105U User Manual
