Chapter 3: System Setup

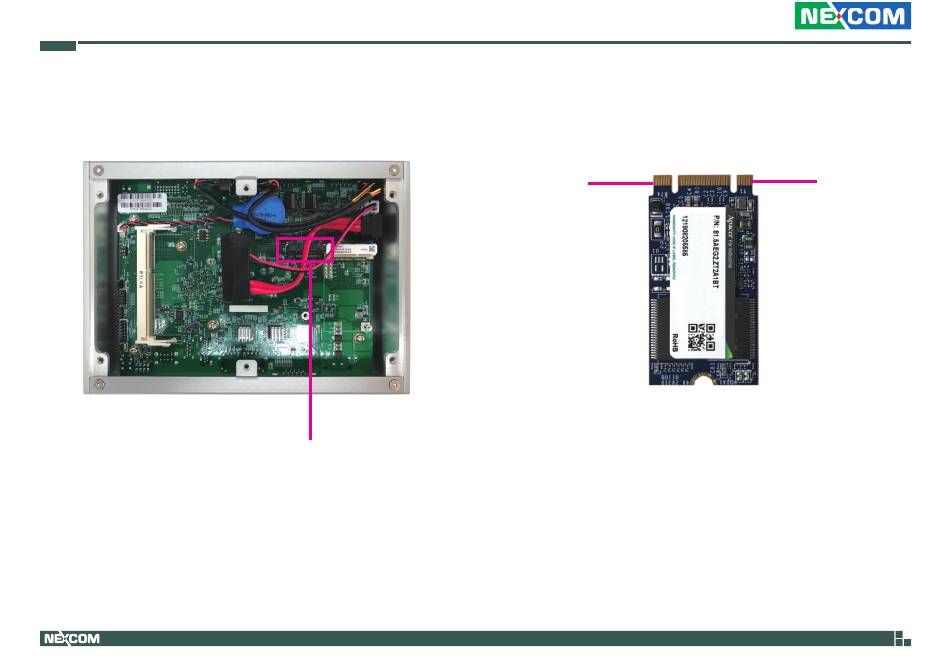

Installing an M.2 Card
1. Locate the M.2 B Key slot on the board.
2. Make sure the gold-plated six-pin connector on the edge of the module
is on the left, while the five-pin connector is on the right.
Five-Pin
Six-Pin
M.2 Slot
36
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
NISE 105U User Manual
