Chapter 2: Jumpers and Connectors

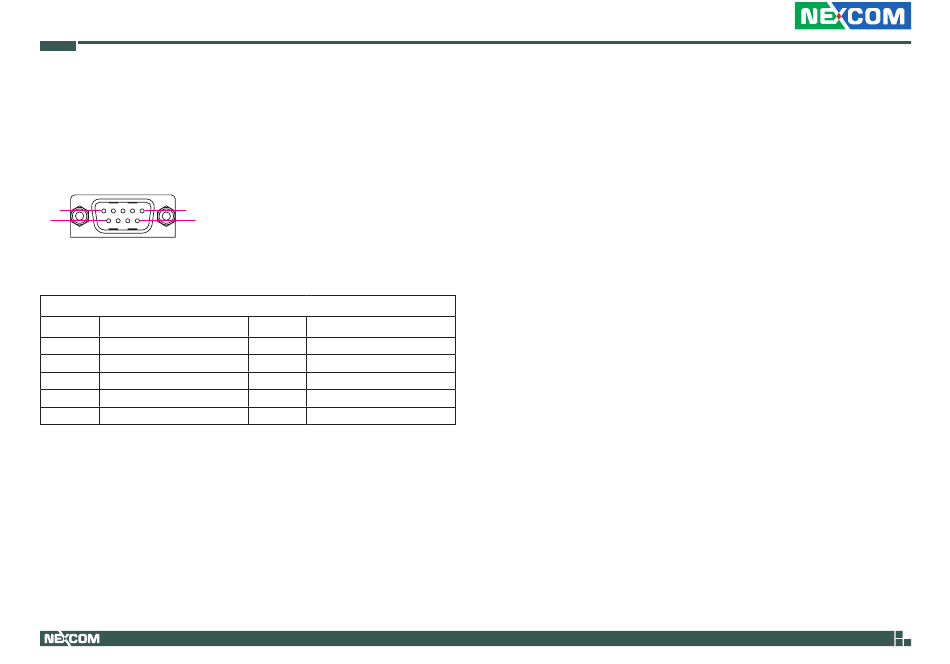

COM4 Port
Connector type: DB-9 port, 9-pin D-Sub
Connector location: CN1
1
5
6
9
Pin
Definition
1
SP4_DCD
3
SP4_TXD
5
GND
7
SP4_RTS
9
SP4_RI
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
RS232
Pin
Definition
2
SP4_RXD
4
SP4_DTR
6
SP4_DSR
8
SP4_CTS
19
NISE 105U User Manual
