Chapter 4: BIOS Setup

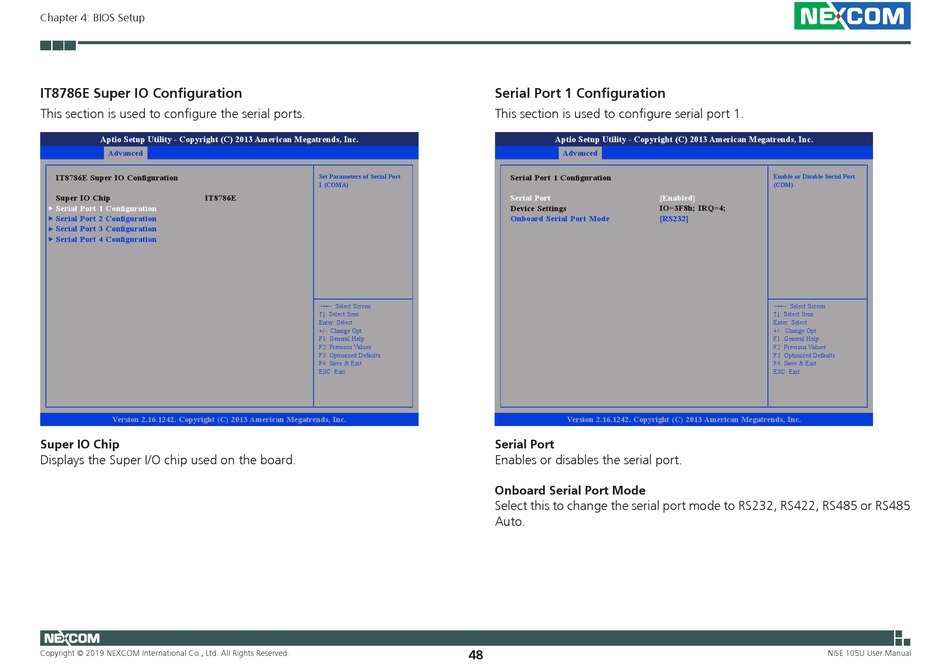

IT8786E Super IO Configuration
This section is used to configure the serial ports.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
IT8786E Super IO Configuration
Super IO Chip IT8786E
Serial Port 1 Configuration

Serial Port 2 Configuration

Serial Port 3 Configuration

Serial Port 4 Configuration

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Super IO Chip
Displays the Super I/O chip used on the board.
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Serial Port 1 Configuration
This section is used to configure serial port 1.
Set Parameters of Serial Port
1 (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port
Enables or disables the serial port.
Onboard Serial Port Mode
Select this to change the serial port mode to RS232, RS422, RS485 or RS485
Auto.
48
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4;
Onboard Serial Port Mode [RS232]
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
